China TBJ-B1-DJ10 Automatic Film Applicator drawdown blade Coater Vacuum chuck Film Applicator

Name: China TBJ-B1-DJ10 Automatic Film Applicator drawdown blade Coater Vacuum chuck Film Applicator
Brand: zy
SKU: NB047247
Price: 7244.0 USD
Availability: PreOrder

$ 7244.00Ex works

Adopt imported accessories to ensure stable operation, Spreader speed 5-200mm/s stepless speed, Vacuum chuck function for thickened substrate, Spreader thickness accuracy of +/- 0.003mm, effective coating area 400 × 400mm.

Model

TBJ-B1-DJ10
TBJ-B1

Get Quote

Category : Automatic Film Applicator

Brand : zy

SKU : NB047247

Service :The delivery and service By NBCLab.Com

Overview

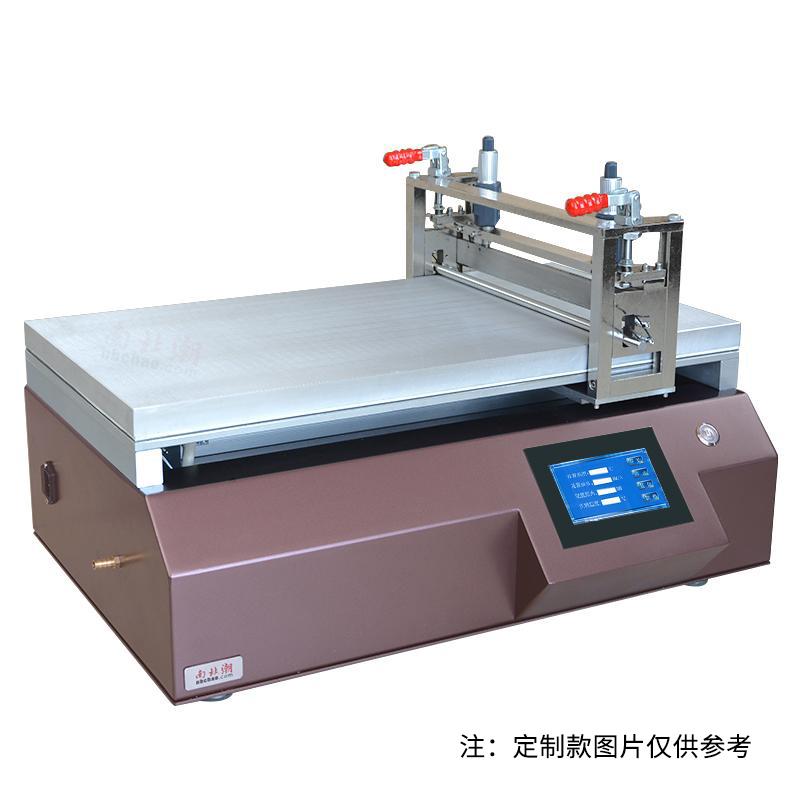

TBJ-B1-DJ10 Automatic Film Applicator is a drawdown blade laboratory small Coater. It adopts imported accessories to ensure the uniformity and smoothness of Spreader coating by controlling speed and stable pressure. The equipment is specially designed for Spreader precise wet-film on different substrates. The effective coating area is 400 * 400mm, and the height adjustment range of the bracket is 0~ 5cm. It has the function of Vacuum chuck, which is suitable for thickened substrate material film.

Features

1. Using imported accessories, the price is good and cheap 2. Blade Coating thickness range 0.001~ 10mm adjustable, accuracy +/- 0.003mm 3. Adjustable coating speed 5~ 200mm/s, support stepless speed control 4. Vacuum chuck function, suitable for thickening substrate material 5. Touchscreen Control mode, easy to operate 6. Effectively improve film reproducibility and reduce manual operation differences 7. Support a variety of customization functions and optional Accessories

Principle

Accurate Spreader is achieved by controlling the speed of the Spreader and the steady pressure applied to the film applicator. The device uses Blade Coating, which adjusts the height of the bracket and the position of the drawdown blade to Spreader a uniform wet-film on different substrates. The Vacuum chuck function ensures the Stability of the thickened substrate material during the Spreader process.

Applications

Laboratory Research, Research Institutions, University Research, Material Spreader Testing

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

coating method
Blade Coating
Drawdown blade Type
Integrated drawdown blade
Blade Coating accuracy
±0.003mm
Blade Coating Thickness Range
0~ 10Mm adjustable
coating speed
5~ 200mm/s (< 5mm/s can be customized)
Coating Size
400 * 400Mm (can be customized)
Drawdown blade material
304 stainless steel
Drawdown blade length
400mm
Host power supply
220V 50Hz
Bracket height adjustment Range
0~5cm
Net weight
Subject to the actual product
speed control
Infinitely variable speed
Coating table material
aluminum alloy
Control mode
Touchscreen
Vacuum Area
400 * 400Mm (can be customized)
Vacuum aperture diameter
Φ1.2mm
hole spacing
20*20mm
Vacuum pump Size
380*180*280mm
Optional Accessories
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and weight (for applications with uneven thickness of Spreader substrate), application width control baffle
customizable function
Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
