China TBJ-X1-DJ10 Automatic Film Applicator Blade Coating accuracy +/- 0.003mm Vacuum chuck

Name: China TBJ-X1-DJ10 Automatic Film Applicator Blade Coating accuracy +/- 0.003mm Vacuum chuck
Brand: zy
SKU: NB047253
Price: 5172.0 USD
Availability: PreOrder

$ 5172.00Ex works

Blade Coating accuracy of +/- 0.003mm, coating speed 5~ 180mm/s adjustable, using Vacuum chuck and 304 stainless steel drawdown blade to ensure film repRoducibility and Stability, avoid manual operation differences.

Model

Get Quote

Category : Automatic Film Applicator

Brand : zy

SKU : NB047253

Service :The delivery and service By NBCLab.Com

Overview

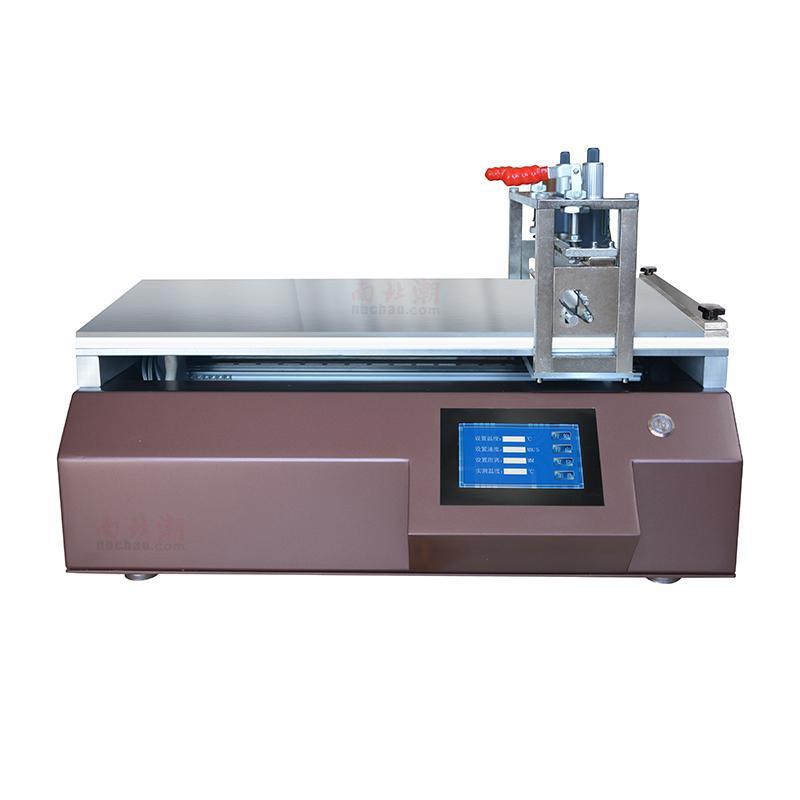

TBJ-X1-DJ10 Automatic Film Applicator is a small experimental Lab Film Applicator with imported accessories and low price. It is favored by multinational R & D institutions, universities and scientific research institutions at home and abroad. It ensures the uniformity and smoothness of Spreader coating by controlling speed and stable pressure, solves the problem of artificial film inconsistency, and significantly improves film reproducibility.

Features

1. Using imported accessories, the price is good and cheap 2. Blade Coating accuracy up to +/- 0.003mm 3. Wide coating speed range: 5~ 180mm/s (< 5mm/s can be customized) 4. Large effective coating area: 600 * 300mm 5. Vacuum Area is 900 * 600mm (can be customized) 6. Speed control is infinitely variable, digital display 7. The drawdown blade material is 304 stainless steel, and the bottom plate material is aluminum alloy 8. Multiple Optional Accessories and Customizable Features

Principle

Automatic Film Applicator achieves accurate Spreader wet-film on different substrates by controlling the speed of the Spreader and the stable pressure applied to the film applicator. It solves the problem of coating differences caused by inconsistent speed and pressure of artificial films, ensures the uniformity and smoothness of the Spreader coating, and improves the reproducibility of the film.

Applications

Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

Blade Coating accuracy
±0.003mm
Blade Coating Thickness Range
0~ 10Mm drawdown blade can be lifted
coating speed
5~ 180mm/s (< 5mm/s can be customized)
Coating Size
300*600mm
Vacuum Area
600 * 900Mm (can be customized)
Vacuum aperture diameter
Φ1.2mm
hole spacing
20*20mm
Drawdown blade material
304 stainless steel
Host power supply
220V 50Hz
weight
Subject to the actual product
speed control
Infinitely variable speed
Bottom plate material
aluminum alloy
Vacuum pump Size
380*180*280mm
Optional Accessories
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and weight (for applications with uneven thickness of Spreader substrate), application width control baffle
customizable function
Jet system device, UV solid inclusion device, automatic inking system
coating method
Blade Coating

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
