Overview

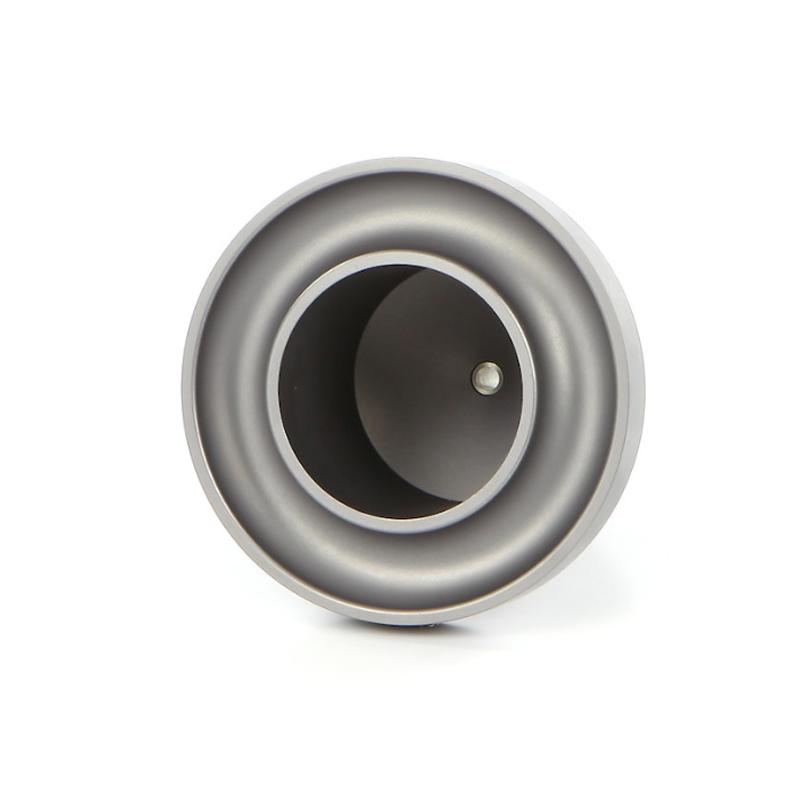

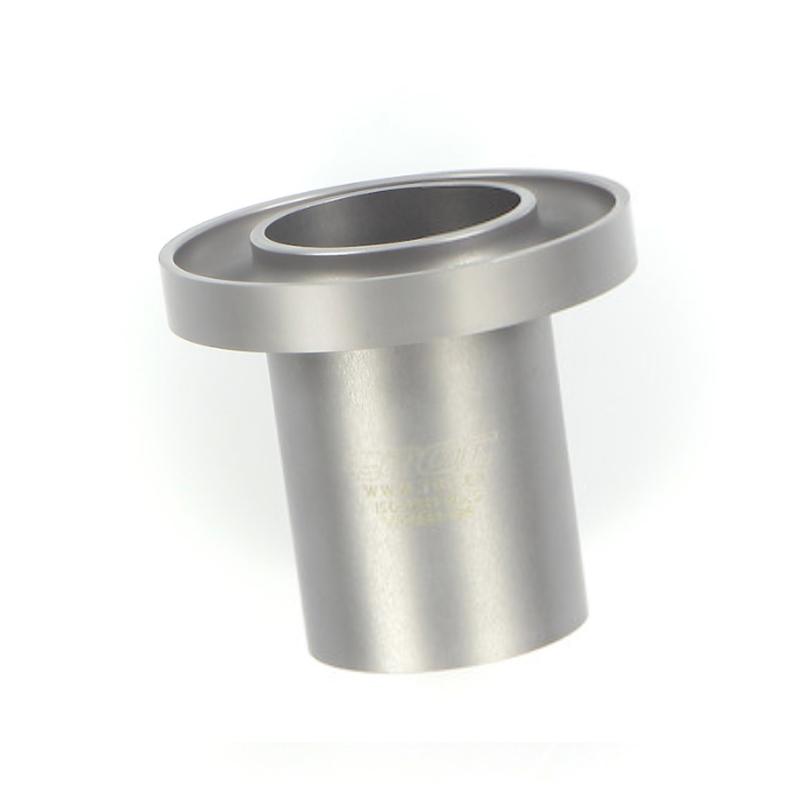

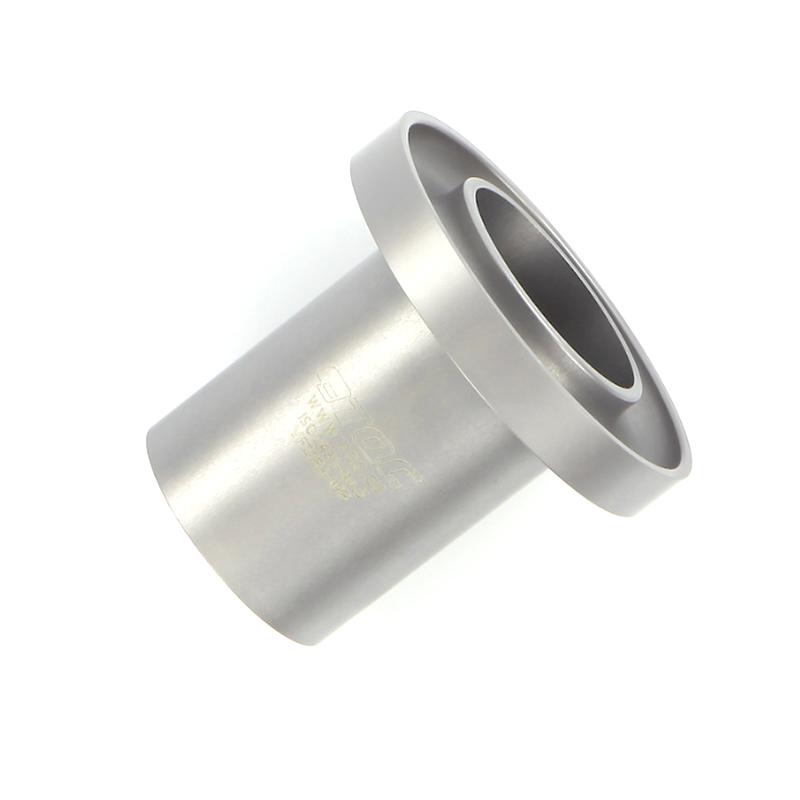

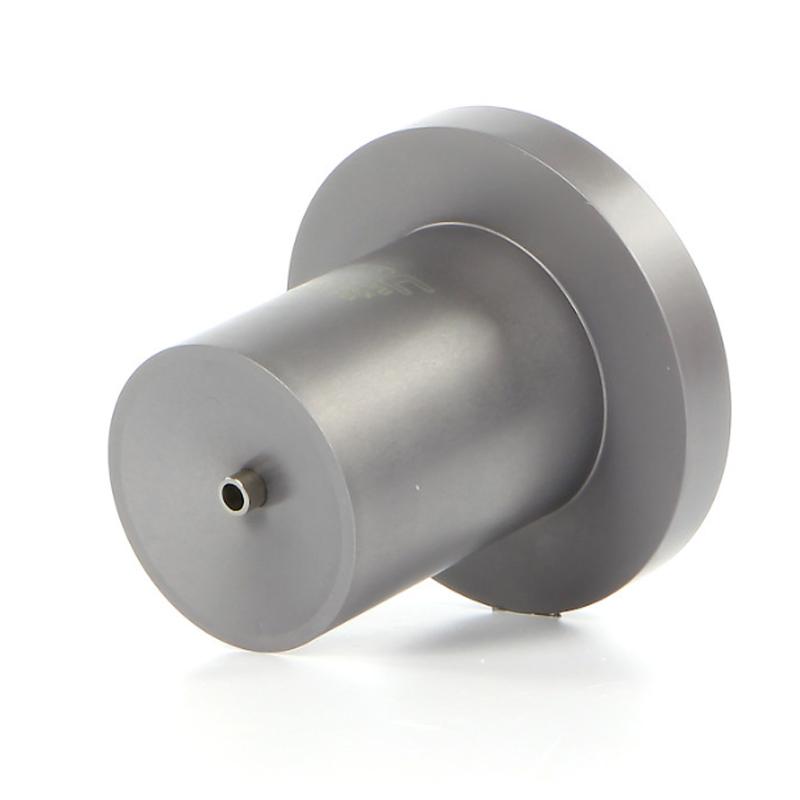

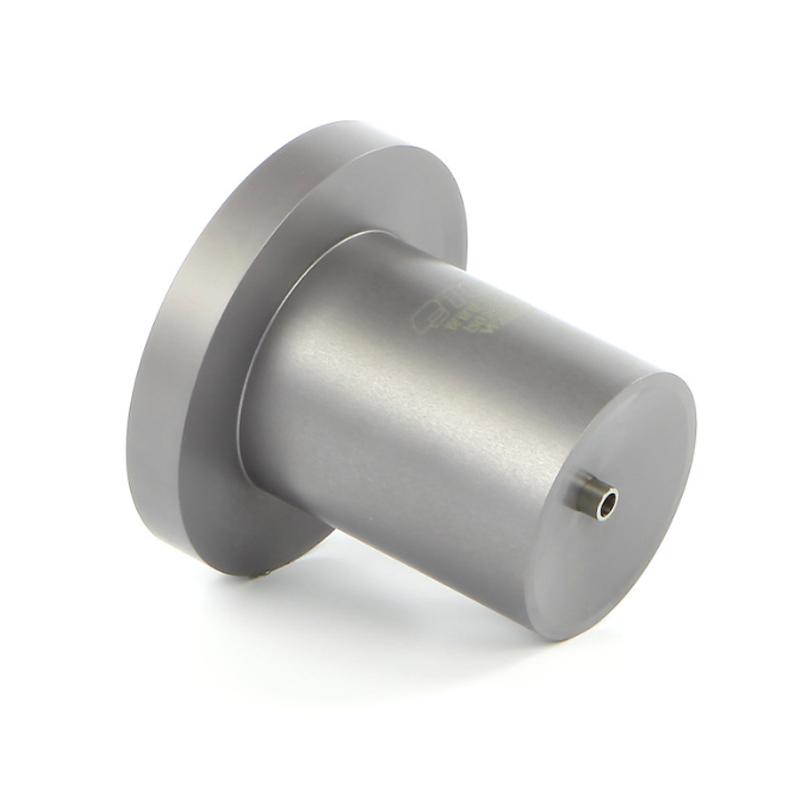

The TQC Benchtop viscosity cup VF2051 is a Benchtop viscosity testing tool made of titanium anodic oxidation aluminum material, which complies with ISO2431 international standards. The filter has a diameter of 8mm and is suitable for fluid testing in the viscosity range of 600 to 2000cSt. It has a smooth and bright surface for easy cleaning and maintenance.
Features
1. Titanium anodic oxidation aluminum material, durable and easy to clean
2. In line with ISO2431 international standards, the test results are reliable
3. The filter part is designed with a protruding structure
4. Computerized machining technology production, high accuracy
5. Smooth and bright surface, long operating life
Principle
The TQC Benchtop viscosity cup is designed based on the principles of Newtonian mechanics and determines the viscosity of the fluid by measuring the time it takes for the fluid to flow out of the cup. When the fluid flows out of the filter, record the time from the beginning of the flow to the first breakpoint. This time value represents the conditional viscosity of the fluid in seconds.
Applications
Viscosity testing, mass assessment, production quality control
Steps
1. Select the appropriate Benchtop viscosity cup
2. Ensure that the viscosity cup and test fluid reach the experimental temperature
3. Confirm that the fluid is free of bubbles and debris
4. Sealing the outflow hole, fill it with fluid, scrape off the excess test solution, and place the receiving cup
5. Release the outflow hole to start timing, and stop timing when the fluid appears at the first breakpoint
6. Fixed Flow rate test: The procedure is the same as above, but the timing is stopped when 50ml of fluid is discharged
Notice
• Use a suitable fine brush and solvent when cleaning, and avoid using cleaning methods and tools that may cause scratches
• It is recommended to buy at least 1 standard viscosity cup with calibrated certificate for comparison and correction
• Any channel change will significantly affect the outflow time and requires careful maintenance
• The hole length of the viscosity cup is short, and special care is required when cleaning
