Overview

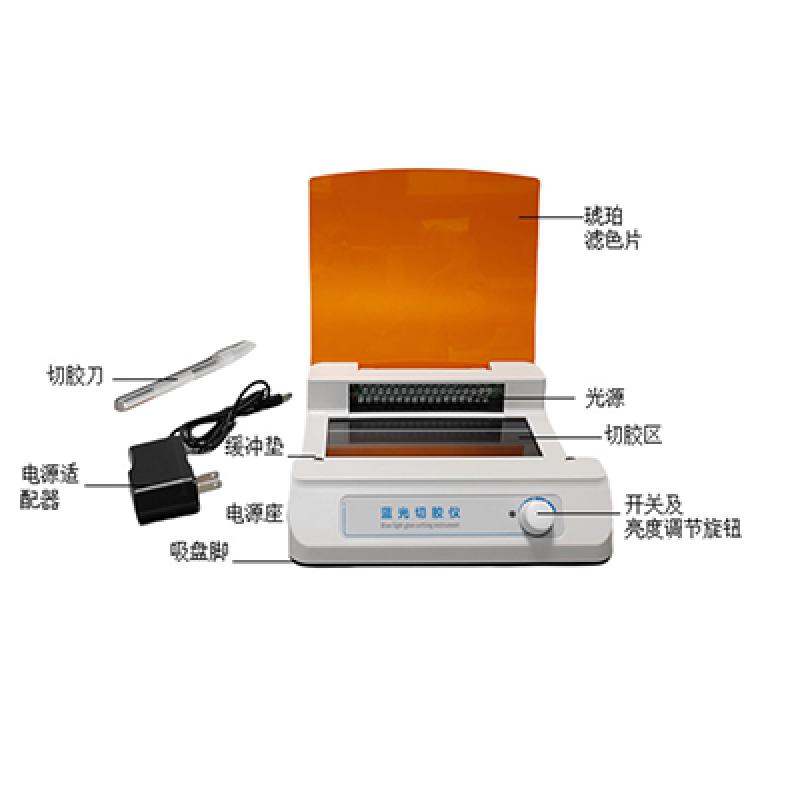

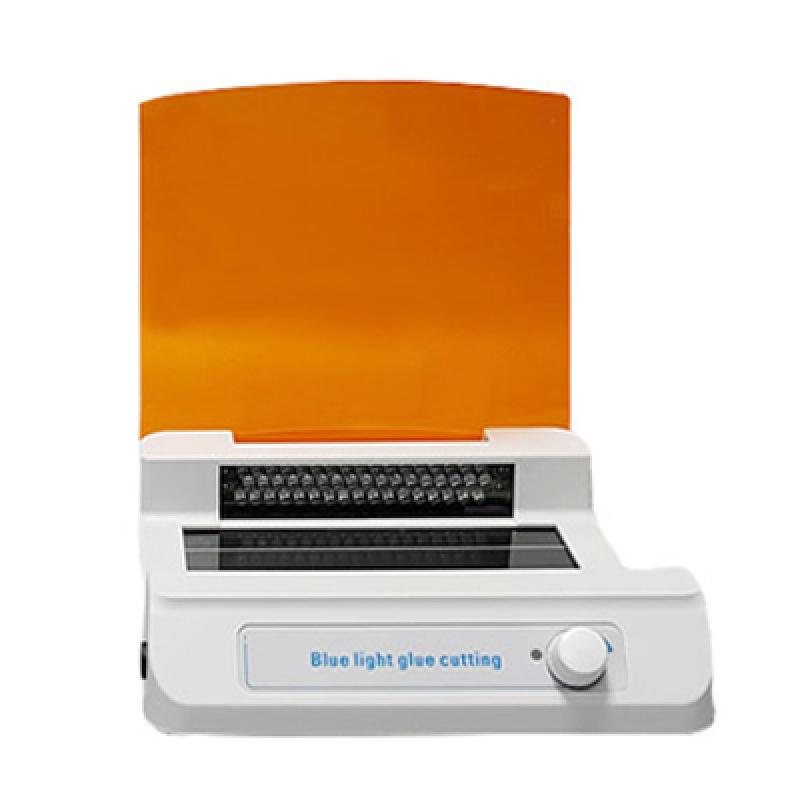

The Blu-ray Glue Cutting Machine (Model: QW-GC470) is an experimental instrument launched by the QIWEI brand for observing and gelling nucleic acid and protein gels containing dyestuff. The instrument makes chromosomes fluoresce strongly through blue light irradiation, which is convenient for selecting and separating target regions on the fluorescence map. It is widely used in the field of life science research.
Features
1. Adopt 470nm blue light wavelength to ensure efficient excitation of fluorescence.
2. The size of the cutting area is 105 * 163mm, providing sufficient operating space.
3. Double-sided LED Illuminant design, uniform and stable illumination.
4. Equipped with an amber filter to enhance observation clarity.
5. The power supply is DC12.6V, which is safe and reliable with low power consumption.

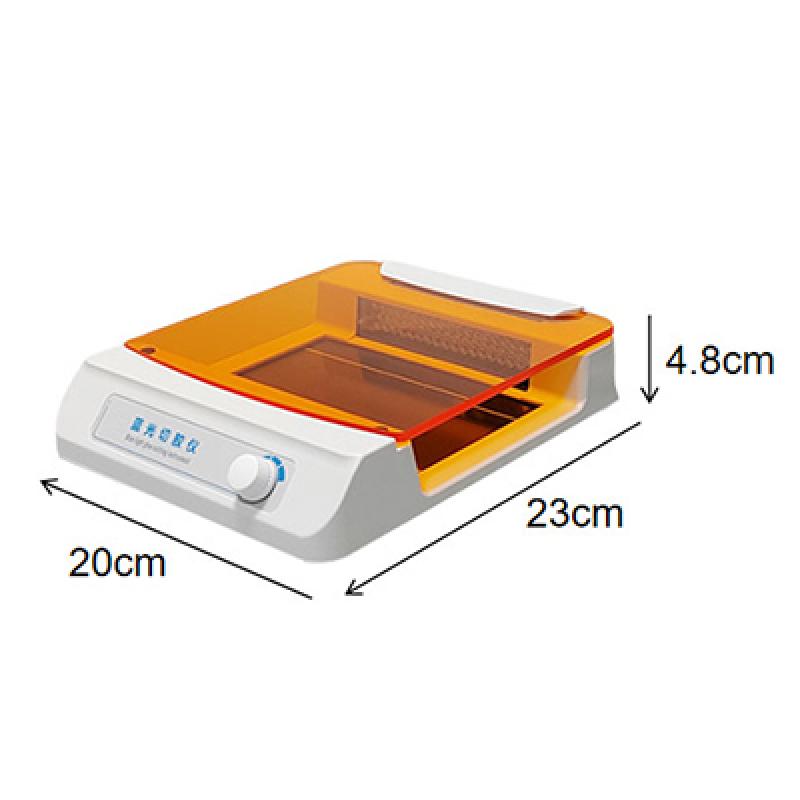

6. Compact instrument size (200 * 230 * 48mm), Net weight of only 1kg, easy to move and store.
Principle
The blue light gel cutter irradiates the sample with 470nm blue light, causing the chromosomes in the gel to emit strong fluorescence. After penetrating through the amber filter, the operator can clearly identify the target area on the fluorescence map and use the glue cutter to accurately separate it.
Applications
Molecular biology, molecular genetics, medicine and health, biological products, agriculture
Steps
1. Place the gel sample in the gel cutting area.
2. Turn on the Blue Illuminant and penetrate the light sheet to observe the fluorescence image.
3. Use a glue cutter to select the target separation region on the fluorogram.
4. Perform the glue cutting operation to complete the sample separation.
Notice
• Avoid looking directly at the Blue Illuminant during operation to prevent eye damage.
• Make sure the power supply is DC12.6V to avoid using mismatched power supplies.
• Clean the glue cutter in time after use to keep it sharp and hygienic.
• The instrument is stored in a drying environment to avoid humidity and high temperature.
