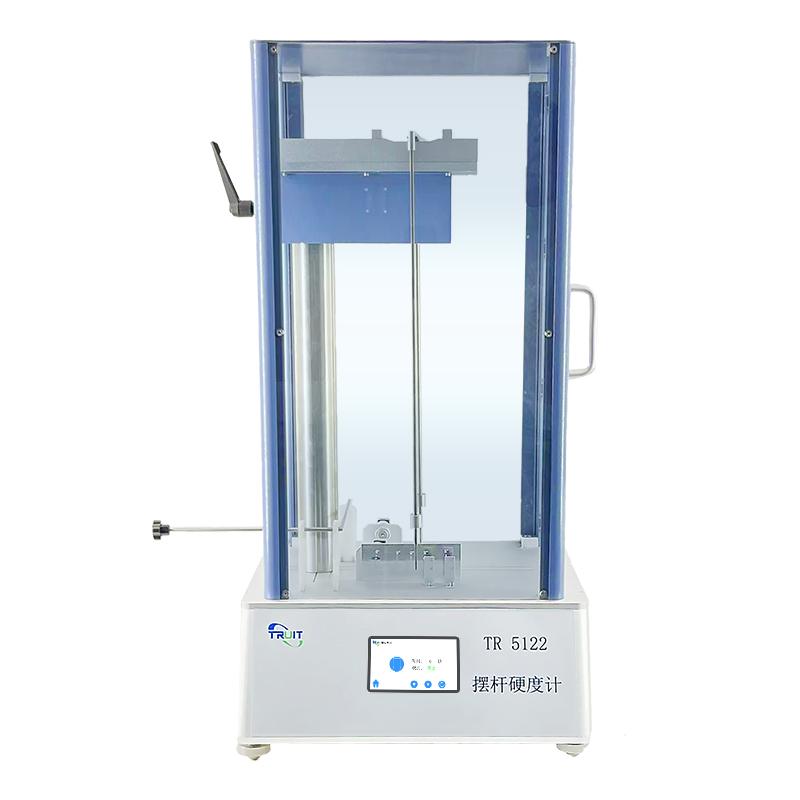

TRUIT TR 5122 Pendulum Hardness Tester Touchscreen control electromagnet cissing pin

Name: TRUIT TR 5122 Pendulum Hardness Tester Touchscreen control electromagnet cissing pin
Brand: TRUIT
SKU: NB047353
Price: 1427.0 USD
Availability: InStock

$ 1427.00Ex works

Using the electromagnet cissing pendulum, it can measure the thickness of the test plate from 0.1mm to 5.5mm, and is equipped with two laser Probes to record data. The swing period is 0.625s.

Model

TR 5122

Get Quote

Category : Persoz / König Pendulum Hardness Tester

Brand : TRUIT

SKU : NB047353

Service :The delivery and service By NBCLab.Com

Overview

The TRUIT TR 5122 Pendulum hardness tester is an instrument designed in accordance with GB/T 1730, ISO 1522 and ASTM D4366 standards. It adopts the principle of KÖnig pendulum, Persoz pendulum and double pendulum, and measures Hardness by the attenuation of the pendulum radiation of the pendulum rod on the film surface. The interaction between the pendulum rod and the paint film is complex, depending on the film resilience and viscoelasticity. The results of different pendulum types cannot be used uniformly. The test needs to be carried out under controlled temperature Humidity and no airflow conditions.

Features

1. Touchscreen control 2. Use electromagnet cissing pendulum 3. Can be suitable for test plates of different thicknesses from 0.1mm to 5.5mm 4. Data Recording with Two Laser Probes 5. Organic Glass door cover, reducing air circulation and convenient viewing 6. Freely switch between different test methods

Principle

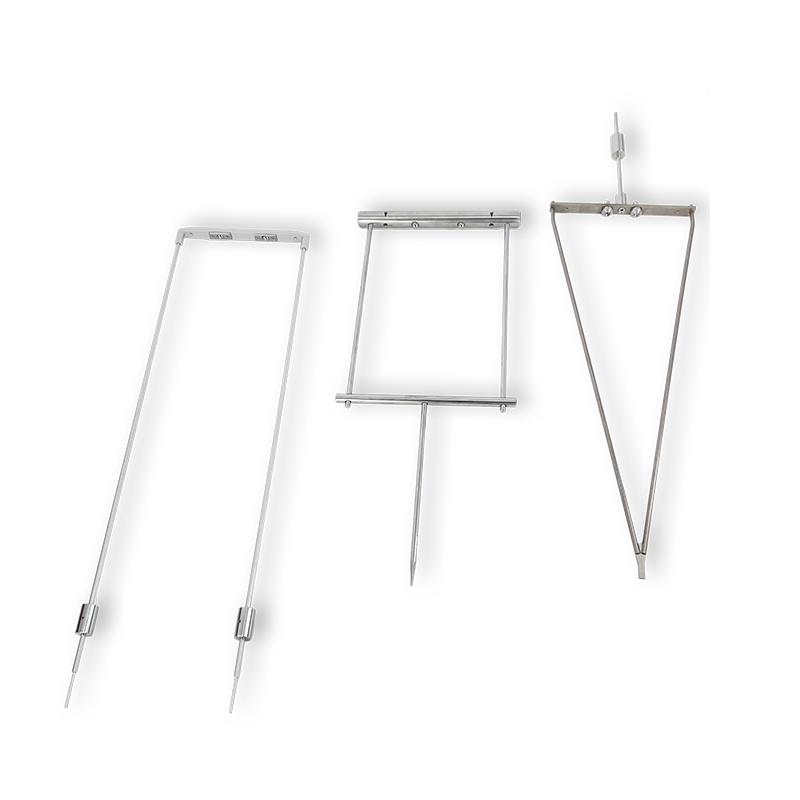

The Pendulum hardness tester works on the principle of pendulum radiation attenuation of the pendulum rod on the film surface. The softer the contact with the film surface, the faster the pendulum radiation attenuates. The interaction between the pendulum rod and the paint film depends on the film resilience and viscoelasticity. Different pendulum types (such as Koenig pendulum, Persaz pendulum and double pendulum) have the same principle but vary in size, swing period and swing. Only one type of pendulum is allowed in the specified damping time measurement.

Applications

Paints and varnishes

Standards

GB/T 1730、ISO 1522、ASTM D4366

Notice

On surfaces with low friction factors, the Persoz pendulum may slip, potentially invalidating the results • Tests should be carried out under controlled temperature and Humidity conditions without the influence of airflow • Film thickness and substrate material may affect damping time

Swing bar Type
double pendulum
Swing rod weight
120g±0.5g
Ball diameter
8mm
Initial swing angle
5º
End point swing angle
2º
Oscillation period
0.625s
Glass swing time
440±6s
counting function
automatic
Size
400*400*775mm
