Overview

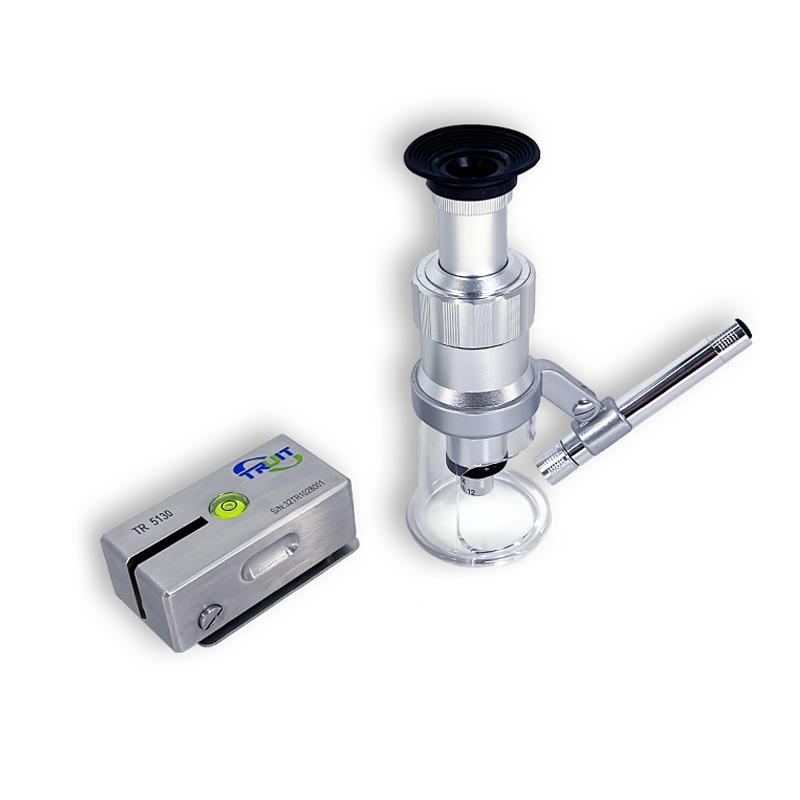

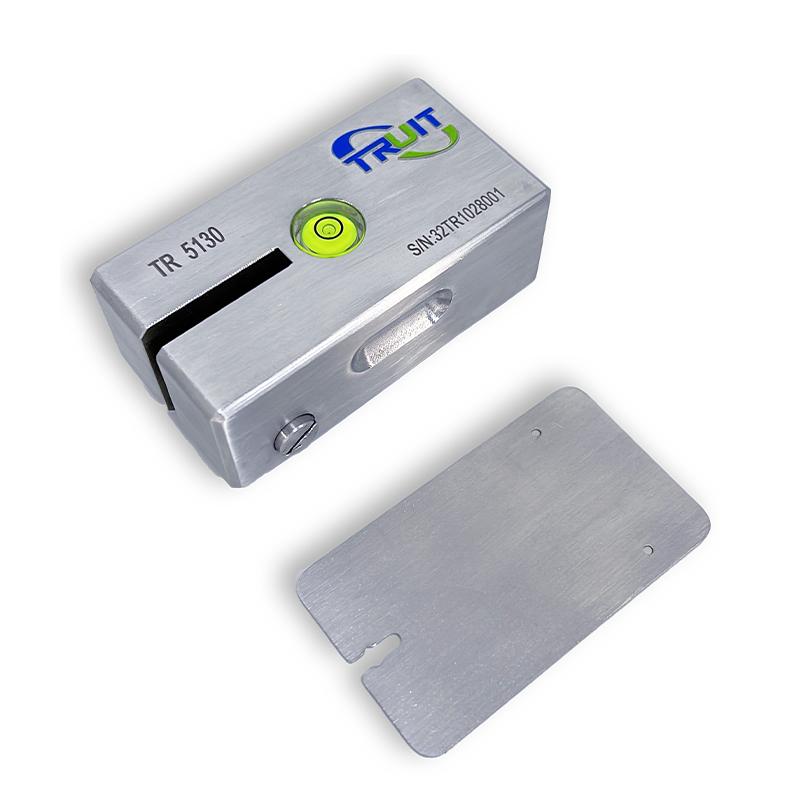

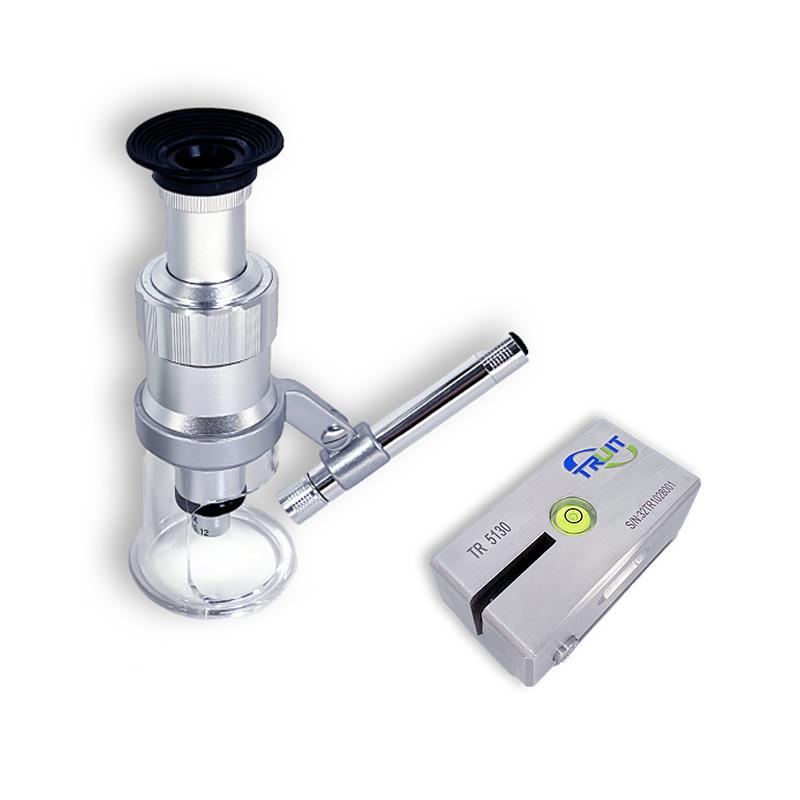

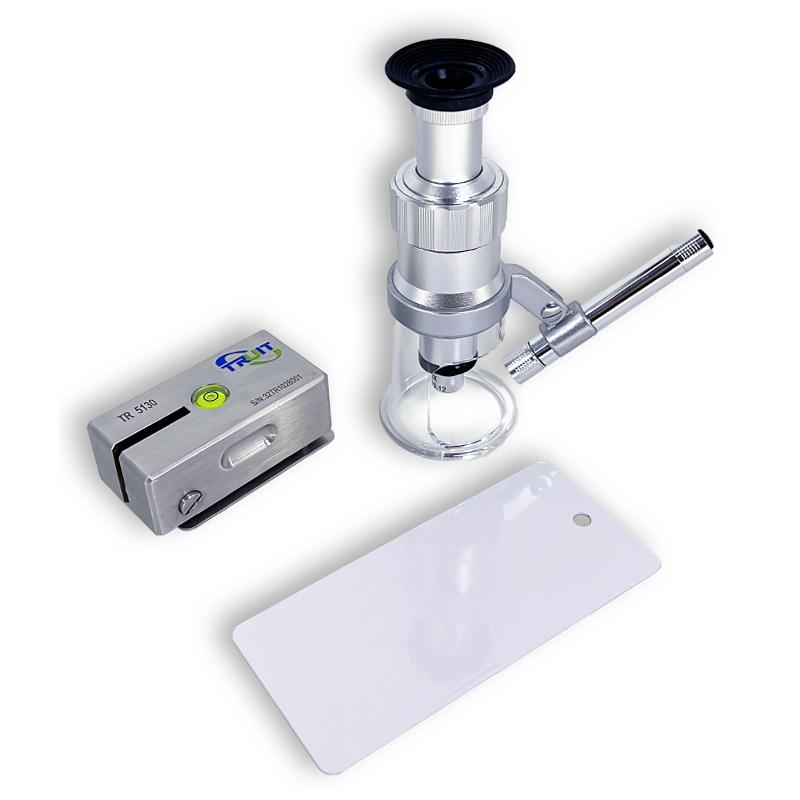

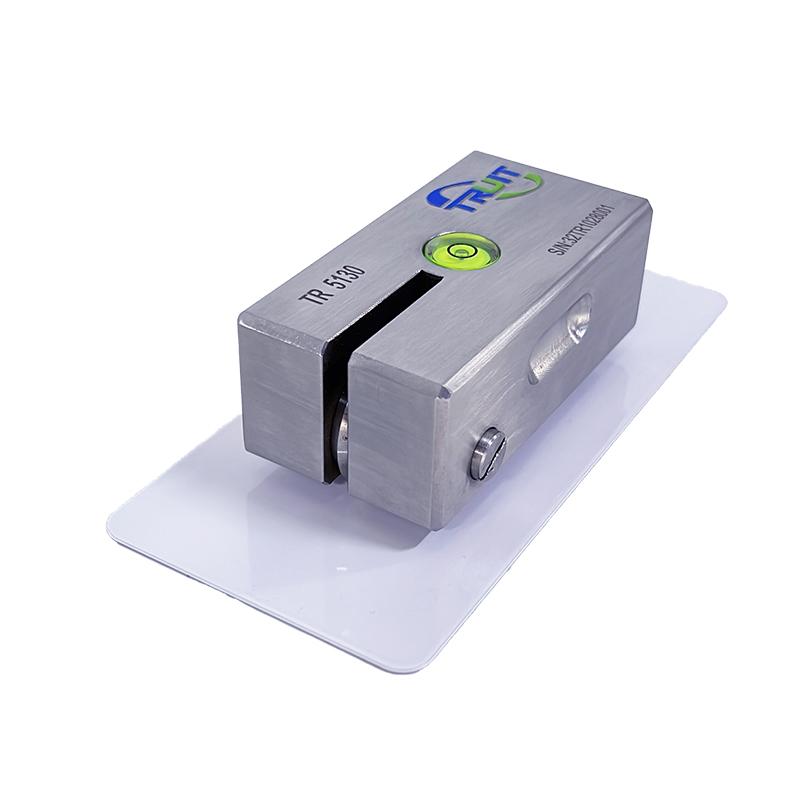

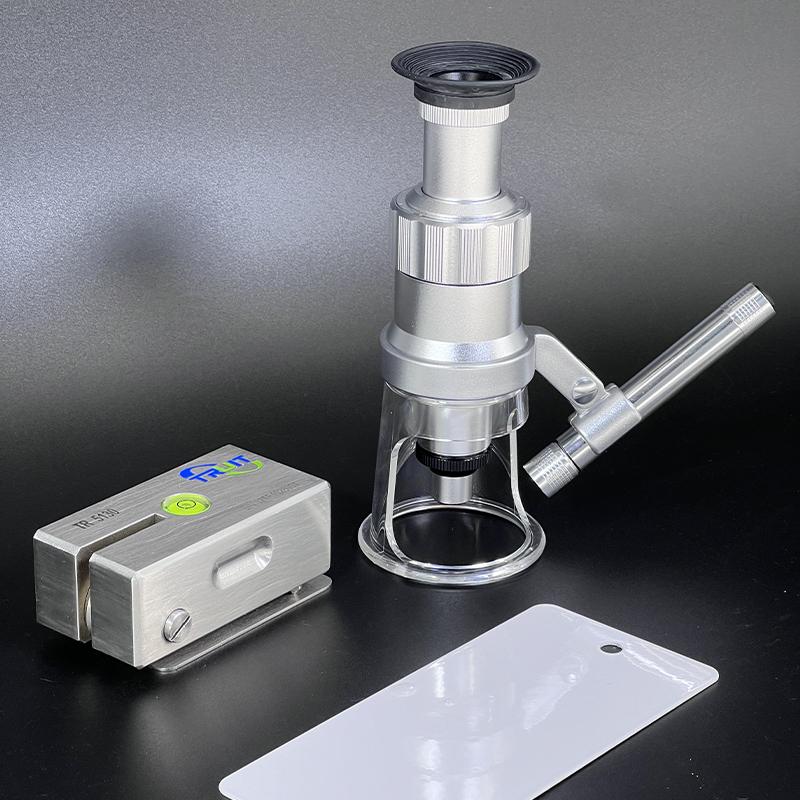

The TRUIT TR 5130 Indentation hardness tester is a professional test equipment designed according to GB/T 9275, ISO 2815, BS 39100 E9, DIN 53153, ECCA-T12 standards to evaluate the compression resistance performance of plastic coatings. During the test, a 500g Cube test block with a standard pressure knife was placed on the surface of the tested product, and then removed after a period of time. Microscope measurement Crowd with a magnification of 20 times.
Features
1. Two hard stainless steel pivots
2. Carbide round tools
3. Built-in horizontal bubble to ensure accuracy
4. High Accuracy Microscope for Correct Results
Principle
Indentation hardness tester by the 500g load with standard pressure knife Cube test block placed on the surface of the product to be tested, after a period of time to remove, using 20 times magnification Microscope measurement pressure knife left marks, to evaluate the compression resistance of plastic coatings performance.
Applications
Compression resistance performance evaluation of plastic coatings
Standards
GB/T 9275、ISO 2815、BS 39100 E9、DIN 53153、ECCA-T12
Steps
1. Place the Cube test block with a load of 500g and a standard press knife on the surface of the tested product
2. Stay in a good location for a period of time
3. Remove the test block
4. Microscope measurement by 20x magnification
Notice
• Ensure built-in horizontal bubble level to maintain accuracy
High Accuracy Microscope for accurate measurement
• Execute tests strictly according to standard operating procedures
