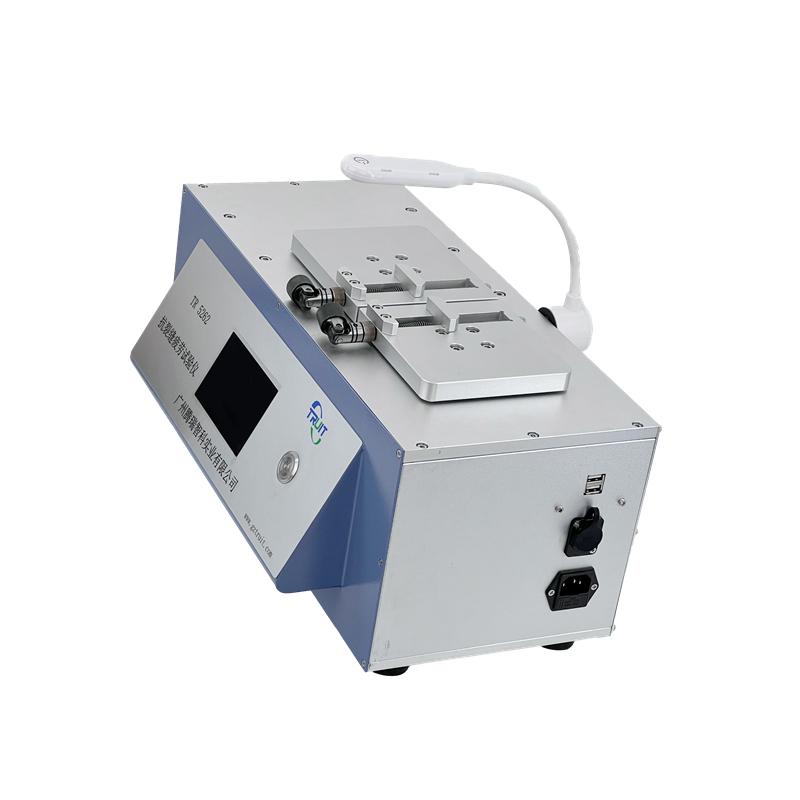

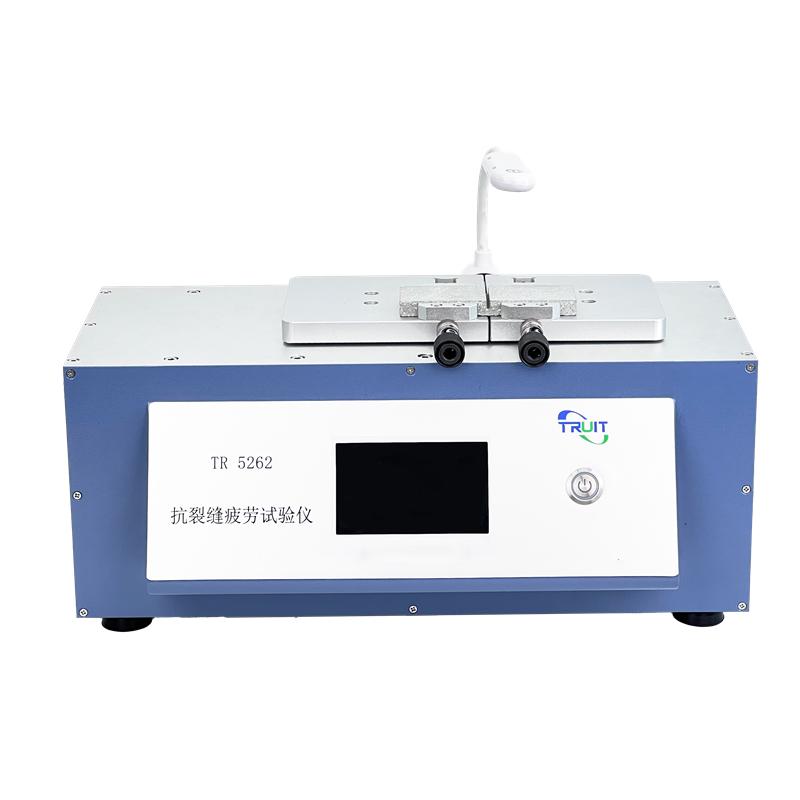

TRUIT TR 5262 anti-cracking fatigue Tester composite coating covering cracking ability Tester

Name: TRUIT TR 5262 anti-cracking fatigue Tester composite coating covering cracking ability Tester
Brand: TRUIT
SKU: NB047359
Price: 5491.0 USD
Availability: InStock

$ 5491.00Ex works

Maximum moving distance 10mm adjustable, accuracy of 0.01mm, running speed 0.01~ 20mm/min, can monitor the real-time stress of coatings, simulation of concrete cracking movement.

Model

TR 5262

Get Quote

Category : Dry Crack Resistance Tester

Brand : TRUIT

SKU : NB047359

Service :The delivery and service By NBCLab.Com

Overview

The TRUIT TR5262 anti-cracking fatigue tester is designed and produced according to the standard HG/T 4343 "Waterborne colorful architectural coatings" "composite coating covering cracking ability", which can make the left and right parts of the test plate cracking move horizontally or relatively reciprocate. By simulating the actual concrete cracking cracking, the ability of the surface coating to resist film damage caused by concrete cracking is determined.

Features

1. Touchscreen design, easy to operate 2. Monitor the real-time stress of coatings 3. Maximum moving distance 10mm adjustable, moving distance accuracy 0.01mm 4. Running speed 0.01~ 20mm/min, traverse speed accuracy 0.01mm/min 5. Test plate size 120 * 80 * 10mm 6. Power supply 220V

Principle

By making the left and right portions of the test plate cracking horizontal relative movement or relative reciprocating movement, simulation of actual concrete cracking cracking occurs, measuring the ability of the surface coating to resist film damage due to concrete cracking.

Applications

Test of cracking ability of waterborne colorful architectural coatings composite coatings

Standards

HG/T 4343

Steps

1. Prepare 120 * 80 * 10mm test plate 2. Set the moving distance and running speed parameters 3. Start the device for horizontal relative movement or reciprocating movement test 4. Monitor the real-time stress of coatings through Touchscreen 5. Record coating damage

Notice

Make sure the power supply is 220V. • Check whether the size of the test plate meets the requirements of 120 * 80 * 10mm before operation • Pay attention to moving distance and speed accuracy requirements when setting parameters • Close monitoring of coating stress during testing

Maximum moving distance
10Mm (adjustable)
Movement distance accuracy
0.01mm
running speed
0.01~20mm/min
Traverse speed accuracy
0.01mm/min
Test board Size
120*80*10mm
power supply
220V
