TRUIT TR 5302 solvent resistance Tester Coatings solvent resistance wiping device

Name: TRUIT TR 5302 solvent resistance Tester Coatings solvent resistance wiping device
Brand: TRUIT
SKU: NB047360
Price: 1092.0 USD
Availability: InStock

$ 1092.00Ex works

Travel 120mm, Wiping Frequency 0~ 60cpm, Friction Load 1000g, Automatic Counting function can accurately record the number of wipes before coating damage.

Model

TR 5302

Get Quote

Category : Solvent Rub Tester

Brand : TRUIT

SKU : NB047360

Service :The delivery and service By NBCLab.Com

Overview

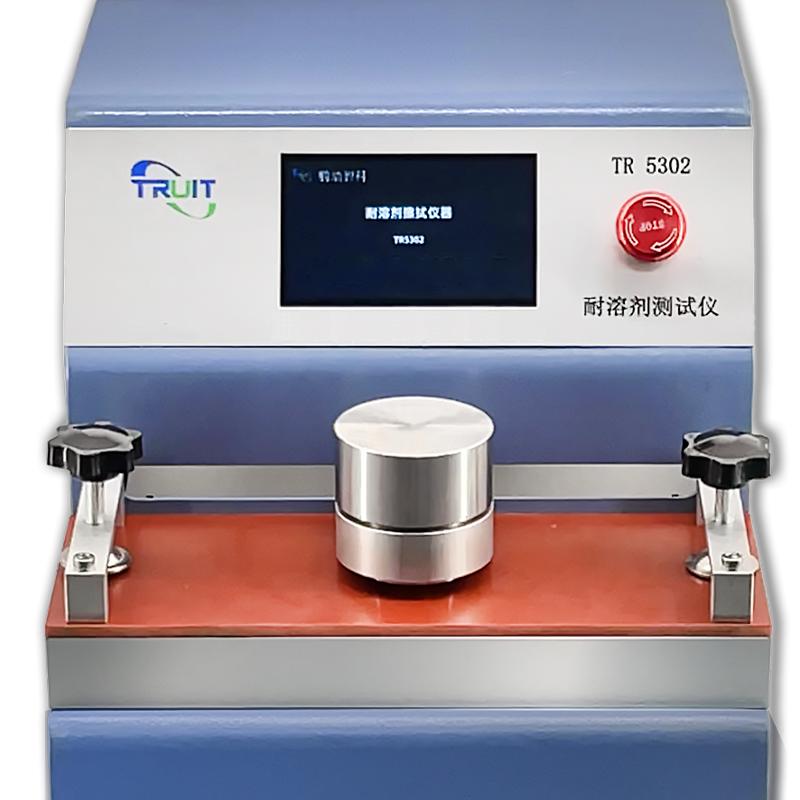

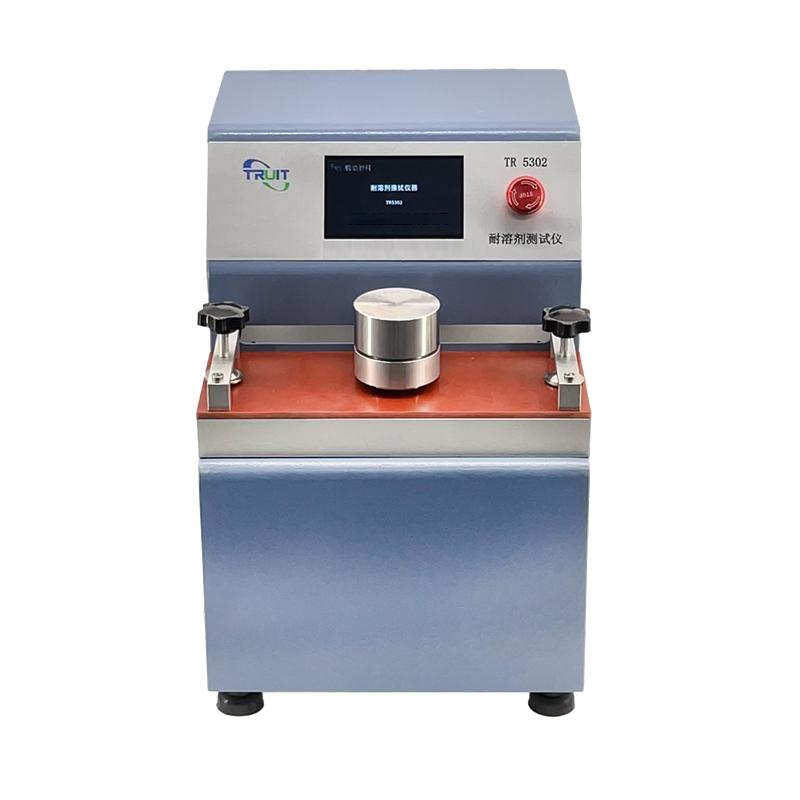

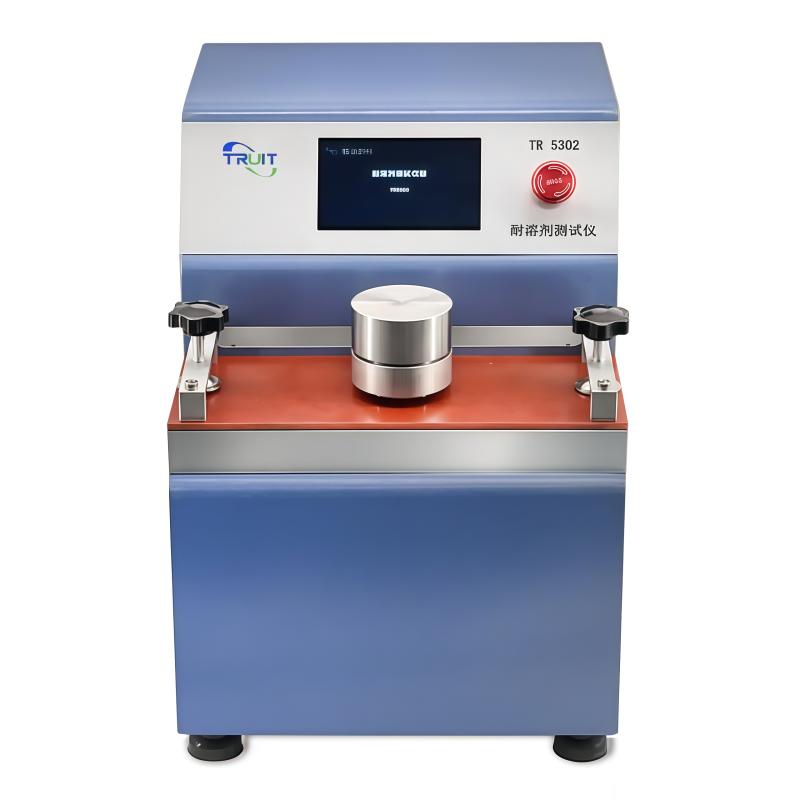

The TR 5302 solvent resistance tester is a product of the TRUIT brand, which is dedicated to measuring the solvent resistance wiping performance of coatings. The instrument uses a wiping head with a certain speed and wiping pressure (absorbentcottonph in contact with the solvent wetting of the bread) to reciprocate on the surface of the sample. The number of wipes can be directly read by the counter, and the solvent resistance wiping performance of the coating is evaluated according to the number of wipes required for coating damage.

Features

1. Design in accordance with GB/T 23989 standard 2. Wipe Travel 120 +/- 5mm 3. Wiping Frequency range is 0~ 60cpm 4. Friction load is 1000 +/- 10 grams 5. Wiping head contact surface diameter is 14 +/- 0.5mm 6. The wiping pressure of the test plate is 0.06MPa 7. The size of the test plate is 75 × 200mm 8. Power supply is 220V 50Hz 9. Dimension is 260 * 260 * 340mm 10. The weight is about 20kg

Principle

The instrument performs reciprocating wiping motion on the surface of the sample through a wiping head with a certain speed and wiping pressure. The wiping head contacts the absorbentcottonph of the solvent wetting. The number of wipes is directly read by the counter, and the solvent wiping performance of the coating is evaluated according to the number of wipes required for coating damage.

Applications

Determination of solvent wiping performance of coatings

Standards

GB/T 23989

Steps

1. Prepare the sample with a size of 75 x 200mm 2. Use solvent wetting absorbentcottonph on the wiping head contact bread 3. Set Wipe Frequency and Travel 4. Start the instrument for reciprocating wiping 5. Read the number of wipes through the counter 6. Observe coating damage and record the number of wipes required

Notice

• Make sure the power supply is 220V 50Hz • The size of the test plate must meet the requirements of 75 × 200mm • Wipe head contact surface diameter should be kept at 14 +/- 0.5mm • Friction load should be controlled within the range of 1000 +/- 10 grams • Wiping pressure should be maintained at 0.06MPa • Pay attention to safety during operation and avoid solvent contact with skin or eyes

Wipe Travel
120±5mm
Wipe Frequency
0~ 60 times/min
load
1000 +/- 10g
Wipe head contact surface diameter
14±0.5mm
Wiping pressure on the test plate
0.06Mpa
Test board Size
75*200mm
power supply
220V 50Hz
Dimension
260*260*340mm
weight
About 20kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
