TQC sheen VF1574 prismatic bird type Film Applicator single top coated cloth 125μm wet film thickness 75mm width

Name: TQC sheen VF1574 prismatic bird type Film Applicator single top coated cloth 125μm wet film thickness 75mm width
Brand: TQC sheen
SKU: NB004741
Price: 781.0 USD
Availability: InStock

$ 781.00Ex works

Made of DAIDO 440C medical grade stainless steel, Hardness reaches HRC55, wet film thickness 125μm, application width 75mm, accuracy +/- 2μm, Spreader can be uniform on flat surface without adjustment.

Model

VF1574

Get Quote

Category : Film Applicator

Brand : TQC sheen

SKU : NB004741

Service :The delivery and service By NBCLab.Com

Overview

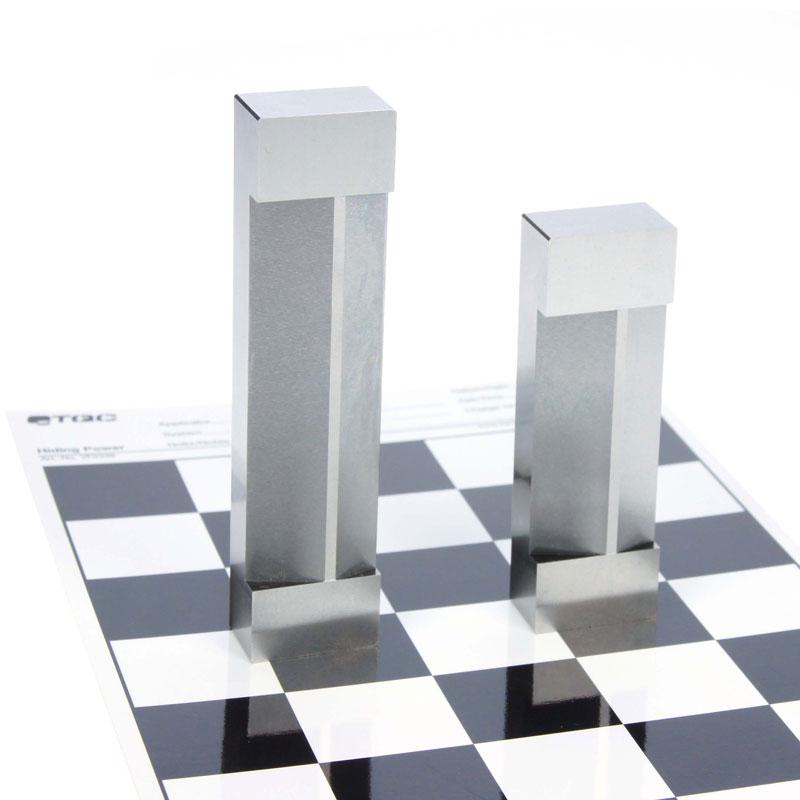

TQC Prismatic Bird film applicator model VF1574 is a single top coated cloth tool designed for paper, hiding power cards, Glass plates or Miscellaneous smooth flat surfaces. It is simple and accurate to operate, no adjustment is required, and the application width is 75mm. It is suitable for production and quality control.

Features

1. The operation is simple and accurate, no need to adjust; 2. The application width is 75mm; 3. The wet film thickness is 125μm; 4. The accuracy is +/- 2μm; 5. The material is DAIDO 440C medical grade stainless steel; 6. The surface preparation is polished; 7. The overall size is 105 * 25 * 15mm.

Principle

The film applicator unifies the Spreader wet-film on a smooth, flat surface by a single-sided design, using its precise thickness and width parameters to standardize the Spreader process.

Applications

Paper, hiding power card, Glass plate, Miscellaneous smooth flat surface

Standards

no mention

Steps

no mention

Notice

no mention

Type
single-sided
wet film thickness
125μm
application width
75mm
accuracy
±2μm
material
DAIDO 440C material Medical grade martensitics stainless steel tool steel. Sub-zero vacuum hardening (+ 1756 ℃~ -70℃), Hardness is HRC55 (highest rocKwell hardness grade)
Size
105*25*15mm
surface preparation
polishing
