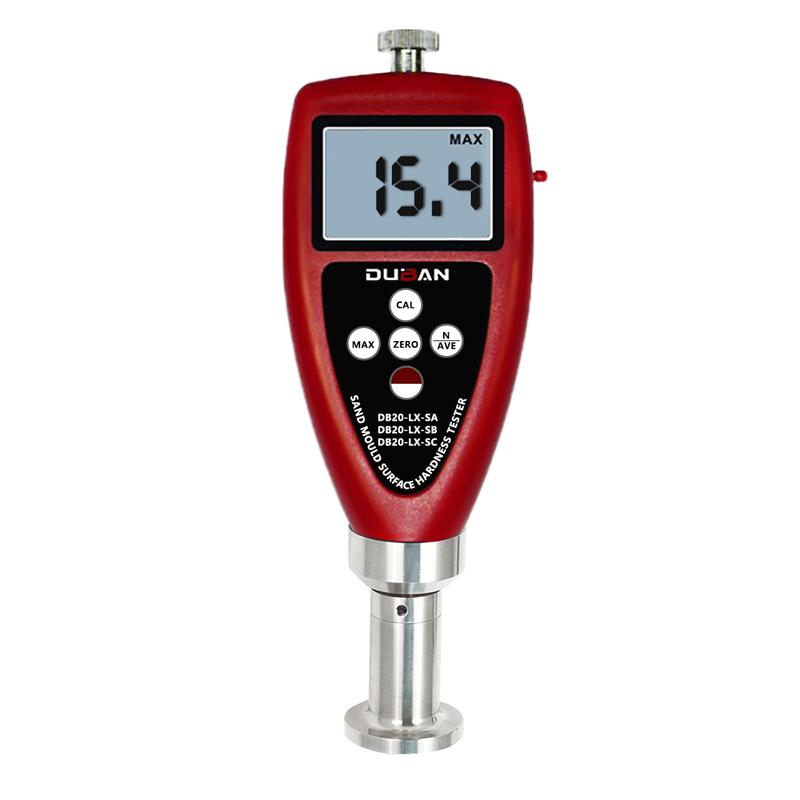

DUBAN DB22-LX-SC Foundry sand hardness Gauge Wet mold sand hardness Gauge Hardness measurement data communication

Name: DUBAN DB22-LX-SC Foundry sand hardness Gauge Wet mold sand hardness Gauge Hardness measurement data communication
Brand: Duban
SKU: NB047412

Please contact customer service

Compression Travel 2.50mm, Load 1500g, Measurement Hardness Range 10~ 90HA/HB/HC, accuracy +/- 1HA, support USB and Bluetooth data output, suitable for a variety of sand testing.

Model

DB22-LX-SC

Get Quote

Category : Other Hardness Testers

Brand : Duban

SKU : NB047412

Service :The delivery and service By NBCLab.Com

Overview

DB22-LX-SC foundry sand hardness gauge & wet mold sand hardness gauge is a DUBAN brand product used to determine the surface Hardness of wet mold sand/core, and provide technical parameters for formulating the molding process. The series is divided into three models: A, B, and C. Type B is suitable for surface hardness testing of fine and coarse sand/core for manual or mechanical low and medium pressure molding.

Features

1. With average value calculation, MAX Maximum latch, undervoltage alarm indication function 2. Use USB cable and Bluetooth data output to communicate with PC 3. Adopt 4-position 10mm LCD display, Display range 0~ 100HA (HB/HC) 4. With automatic shutdown function and low voltage prompt 5. Accuracy ≤ +/- 1HA (HB/HC), resolution 0.1HA (HB/HC)

Principle

The unit of sand surface hardness gauge type B is (g/mm ²), but it is customary not to use units but to use Hardness H (A/B/C) to express. Their magnitude is related and consistent, and the corresponding Hardness value is also large if the unit value is large (g/mm ²). Measurement is made by compression Travel 2.50mm, load 1500g, pre-load 180g and ball R1.20 indenter.

Applications

Surface hardness testing of fine and coarse sand molds/cores for manual or mechanical low and medium pressure molding

Travel compression
2.50mm
load
1500g
pressurized load
180g
Head shape and Size
Ball R1.20
Measurement unit
HC
display parameters
Hardness/Average/MAX Maximum
display
4-Position 10mm LCD
Display Range
0~100HA(HB/HC)
Measurement Range
10~90HA(HB/HC)
Accuracy
≤±1HA(HB/HC)
resolution
0.1HA(HB/HC)
Low Voltage prompt
√
Automatic shutdown function
√
Operating environment
Temperature: 0~ 40℃ Humidity: < 80% RH
power supply
2 AA batteries
Dimension
176x63x25mm
weight
170G (without battery)
