Overview

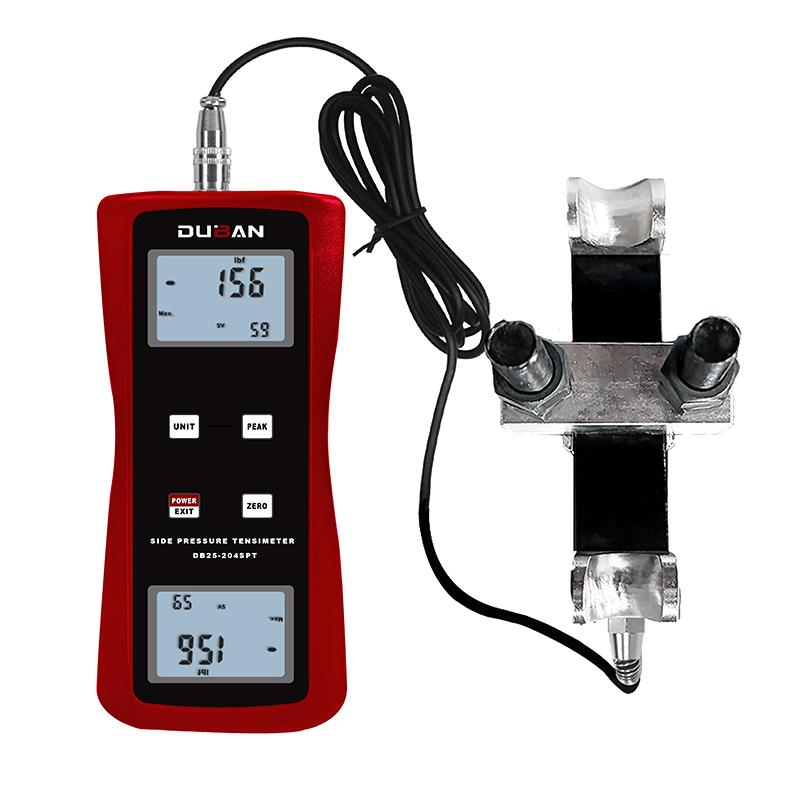

DB25-204SPT 5KN is a digital tension meter newly designed and developed by DUBAN brand. It has the advantages of High Accuracy, Easy Operation, Convenient Carrying, and has a peak holding test mode. The instrument is dedicated to the measurement of wind towers, signal towers, power transmission systems and other rope tension. Users can choose the corresponding specifications according to the test force value, and the scientific use range is 10% to 100% of the full scale.
Features
1. High Accuracy and resolution
2. Numbers are displayed, ignoring the difference
3. Three measurement units of N (newton), kg (kilogram), and lb (pound) are available and can be converted to each other
4. Peak hold function, keep peak display until manually cleared
5. Can be powered by alkaline battery or 5V DC power supply
6. Front and back dual displays, easy to read readings in multiple directions
Principle
The instrument converts the received force information into electrical signals and transmits it to the host through the measurement Sensor. After the host processes it, the measurement reading, unit and operation prompt information are displayed through the display. Users can complete all instrument operations through the operation button area.
Applications
Wind tower, signal transmission tower, power transmission system and other rope tension measurement
Steps
1. After the instrument and the tested object are in place, press the ZERO button to clear to eliminate the weight of the fixture
2. Start the test, the instrument automatically displays the Measured value
3. When using the peak hold function, the peak display remains until manually cleared
Notice
• Scientific use test range is 10% to 100% of full scale
• Measurement department recommends not using less than 1% of full scale
• Operating temperature range 0 ° C~ 40 ° C
• Operating humidity should be less than 80%
• Working environment requires no source and corrosion medium around
• The allowable load is 150% F.s, and there is a beep alarm when it exceeds 110% F.s
