Overview

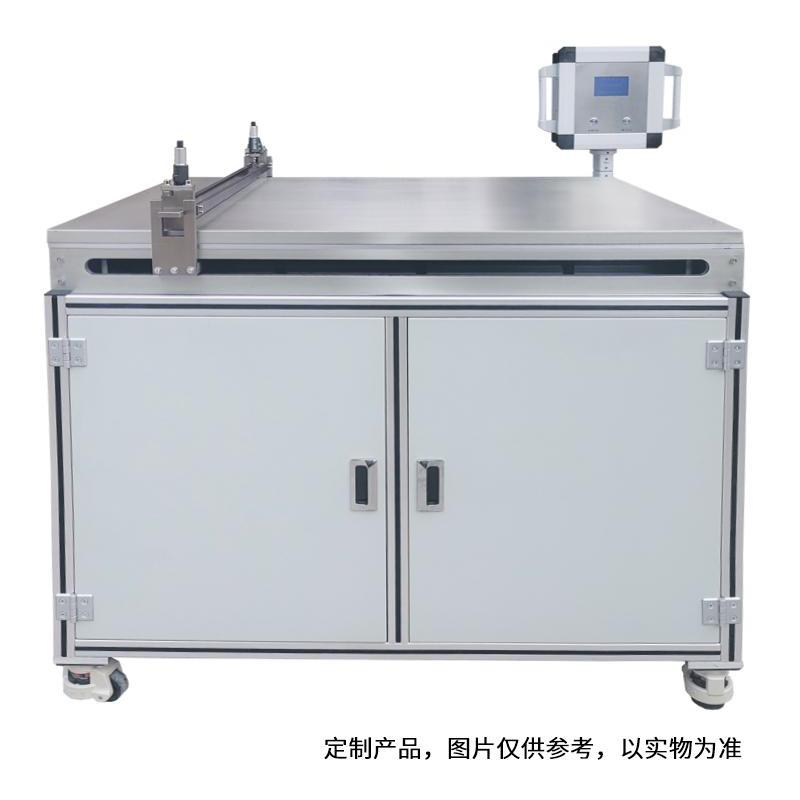

TBJ-X2-DJ15 Floor-Standing drawdown Bar & Blade Film Applicator is a customized large size Coater, the effective Spreader size is 750 * 1100mm, using bar and drawdown blade two coating methods, with Vacuum chuck function, suitable for paper, release paper, PET film film.
Features
1. Two coating methods of bar and drawdown blade
2. Vacuum chuck function
3. Wide coating speed range (5~ 200mm/s, < 5mm/s can be customized)
4. Speed control with infinitely variable speed
5. The coating table is made of aluminum alloy
6. Customizable jet system devices and UV solid inclusion devices
Principle
The Film Applicator forms a uniform coating on the surface of the substrate by two coating methods of bar and drawdown blade, uses the Vacuum chuck function to fix the substrate, and controls the coating speed through stepless speed to achieve accurate Spreader.
Applications
Paper, release paper, PET film
Steps
1. Preparation of substrate (paper, release paper or PET film)
2. Place the substrate on the Spreader stage
3. Vacuum chuck function fixed substrate
4. Select Bar or Blade Coating Method
5. Set coating speed and thickness parameters
6. Start the Spreader Process
7. Remove the sample after completing the Spreader
Notice
• Spreader thickness range: drawdown blade 0~ 10mm, bar 1~ 571.5μm (determined according to bar model)
• Spreader accuracy: drawdown blade +/- 3% mm, bar +/- 0.003mm
• Host power supply: 220V 50Hz
• Dimensions are non-standard customization, subject to actual order
• Speed regulation accuracy of 1mm/s
• Vacuum Area 1100 * 750mm
• Vacuum aperture diameter is φ 1.2mm
• Vacuum hole pitch is 20 * 20mm
