Rxg-01/300UV UV curing Film Applicator Automatic Laminating 1 Meter Oven

Name: Rxg-01/300UV UV curing Film Applicator Automatic Laminating 1 Meter Oven
Brand: BoLaiDe
SKU: NB047500
Price: 16009.0 USD
Availability: PreOrder

$ 16009.00Ex works

PRoduction speed 0-5m/min, effective application width ≤ 300mm, using scraping with UV light curing, drying tunnel length of 1 Meter, with tension control unwinding and Touchscreen operation.

Model

Get Quote

Category : R2R Coater

Brand : BoLaiDe

SKU : NB047500

Service :The delivery and service By NBCLab.Com

Overview

UV UV curing film Applicator Rxg-01/300uv is a coil laminating machine with UV curing, with automatic laminating function, using scraping method, with 1 meter oven, suitable for coating UV glue on the release film.

Features

1. Automatic Laminating Function 2. Scratch coating method 3. With 1 meter oven 4. UV curing system 5. Touchscreen control (Kunlun Tongtai) 6. Unwinding tape tension control 7. Equipped with 2 inflatable shafts 8. Aviation plug/separate switch design

Principle

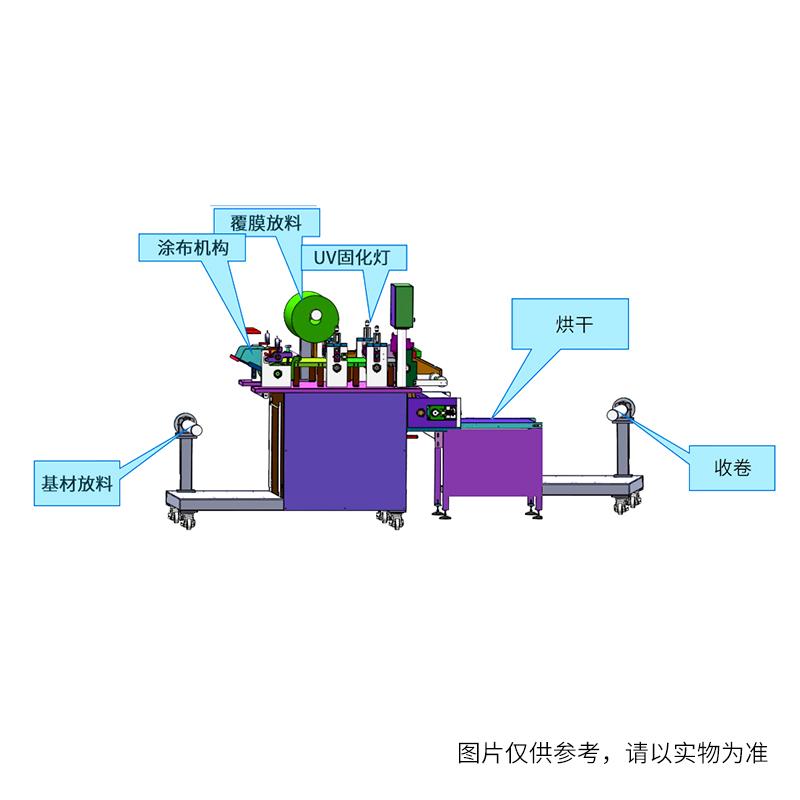

The equipment adopts scraping method for Spreader, through the complete process of unwinding → scraping → Laminating → UV curing → drying → winding. The UV curing system adopts 365nm main peak wavelength, Wavelength range 350-450nm, and cooperates with 1 meter oven to complete the film curing process.

Applications

Release Film UV Glue Spreader

Standards

Three-phase 220V power supply standard

Steps

Step 1 Unroll Step 2 Scratch 3. Laminating 4. UV curing Step 5 Drying Step 6 Wrap up

Notice

• Production speed range is 0-5m/min • Effective application width does not exceed 300mm • The diameter of the roll is 3 inches • Device power is 1.4KW • Power supply voltage is three-phase 220V • UV curing area is 300 * 500mm

production speed
0-5 m/min
Coating Size
Max. 300mm
Coil diameter
3 inches.
Power
1.4 Kw
Power supply Voltage
Three-phase 220 V
unroll
With tension control
control
Touchscreen (Kunlun Tongtai)
inflated shaft
2
Spreader process
Unwinding, Scratching, Laminating, UV curing, Drying, Winding
coating method
scraping
Drying channel length
1 m
UV curing area
300*500mm
UV light main peak wave
365 nm
UV light curing wavelength
350-450 nm
switch
Aviation plug/separate switch
