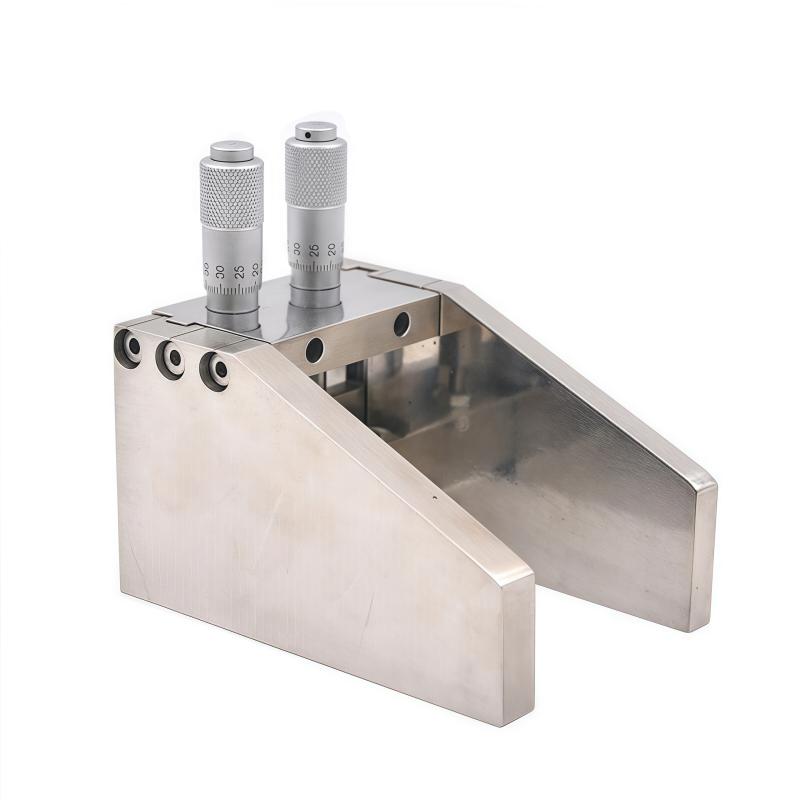

JINGKELIAN KTQ-250 (316) adjustable coating Applicator 0~ 3500 μm wet film thickness +/- 2 μm accuracy

Name: JINGKELIAN KTQ-250 (316) adjustable coating Applicator 0~ 3500 μm wet film thickness +/- 2 μm accuracy
Brand: JingKeLian
SKU: NB047508
Price: 551.0 USD
Availability: InStock

$ 551.00Ex works

Made of stainless steel, the film thickness can be adjusted freely within the range of 0~ 3500 μm, the accuracy is +/- 2 μm, and the drawdown blade gap is precisely controlled by the differentiator to achieve accurate Spreader.

Model

KTQ-250（316）

Get Quote

Category : Film Applicator

Brand : JingKeLian

SKU : NB047508

Service :The delivery and service By NBCLab.Com

Overview

The JINGKELIAN KTQ-250 (316) adjustable coating applicator is one of the Micrometer Film Applicator series, which can be freely adjusted in the film thickness range of 0~ 3500 μm, and the drawdown blade gap is adjusted every 10 μm. The film accuracy is +/- 2 μm.

Features

1. Free adjustment of film thickness range 0~ 3500 μm 2.The film accuracy +/- 2μm 3. Precise adjustment of drawdown blade clearance per 10 microns 4. Made of stainless steel 5. application width 200mm 6. Compact shape, size 120 * 115 * 105mm, Net weight 450g

Principle

By adjusting the film applicator above the two differentiators, can be adjusted in the direction below the drawdown blade to control the gap, i.e. the thickness of the final coating.

Specifications

Type: adjustable, wet film thickness: 0~ 3500μm, application width: 200mm, accuracy ： +/- 2μm, material: stainless steel, Dimension: 120 * 115 * 105mm, Net weight: 450g

Type
adjustable
wet film thickness
0~3500μm
application width
250mm
accuracy
±2μm
material
stainless steel
Dimension
120*115*105mm
Net weight
450g

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
