Overview

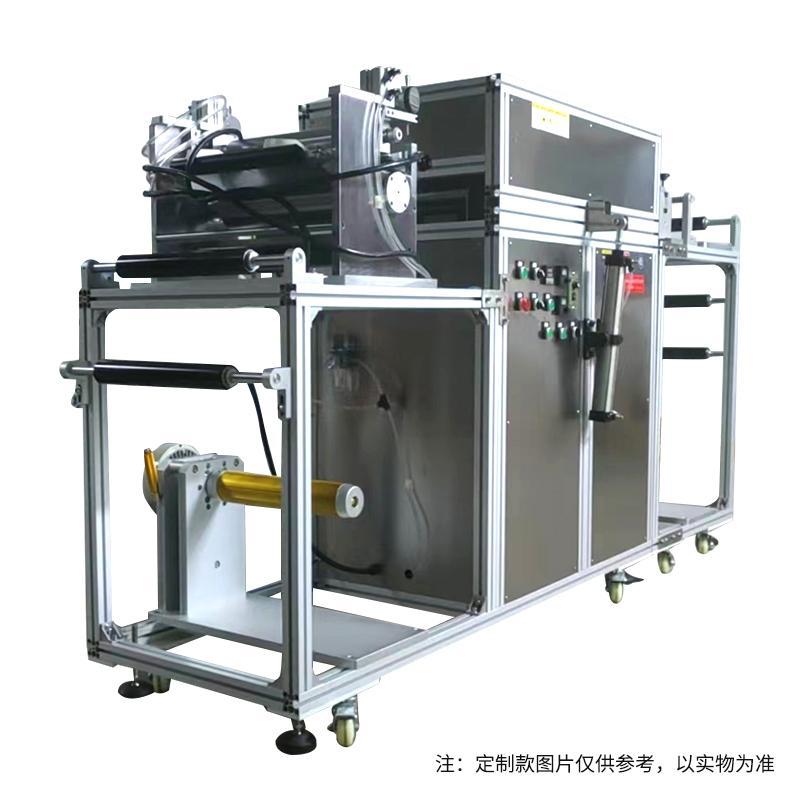

Oven Slot-die Film Applicator is an automated equipment suitable for non-elastic materials such as Spreader paper, film, aluminum foil, plastic, non-woven fabrics, etc. The equipment integrates the functions of unwinding, scraping, drying, overlaying and rewinding, and uses the slot-die coating method to achieve efficient composite Spreader operation.
Features
1. Multifunctional integration: with integrated functions of unwinding, scraping, drying, overlaying and winding
2. Precise Spreader control: using slot-die Spreader technology to ensure Spreader uniformity
3. Temperature adjustable: Drying Temperature range RT +~ 200 ℃, laminating roller heating temperature up to 200 ℃
4. Wide range Applicable: Spreader thickness range 0.005-3mm (optional), bonding width 100~ 400mm
5. Stable operation: stepper motor, bonding accuracy of 0.5mm
6. Efficient drying: equipped with 1m * 2 drying channels, Power 1KW, improve production efficiency
Principle
The device transports the substrate through the unwinding device, and the scratch-coating system uses the slot-die Spreader technology to uniformly Spreader the molten polyethylene (PE) plastic on the surface of the substrate, and then enters the drying system for curing, and then compounds with another layer of substrate through the compounding device. Finally, the film roll is collected by the winding device.
Applications
Spreader for paper, film, aluminum foil, plastic, non-woven fabric and other non-elastic materials
Steps
1. Place the substrate reel on the unwinding device
2. Start the device, the substrate is scraped through the system for slot-die Spreader
3. Spreader substrate into the drying system curing
4. The cured material is combined with another layer of substrate through a composite device
5. The film roll completed by the compounding is collected by the winding device
Notice
• Dimensions of equipment are for reference only, subject to actual customization
• Spreader thickness range is optional and needs to be determined according to specific needs
• Pay attention to the high temperature of the drying tunnel and the laminating roller during operation to avoid burns
• Power supply voltage 220V, Power 2.5KW, in line with equipment requirements
• Regularly check the tensioning device and roller to ensure stable delivery of the substrate
