Overview

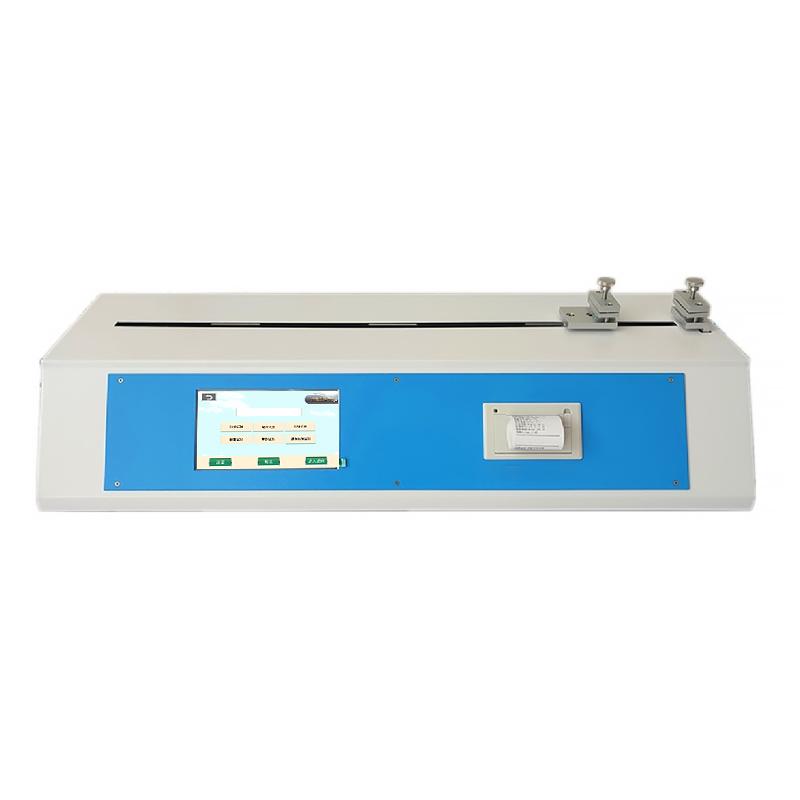

JW103CW horizontal paper Tensile Strength Tester is a special testing machine for measuring Tensile Strength, Tensile Index, Elongation at Break and Tensile Energy Absorption Index of Paper and Cardboard, Paper Wipes, Wipes and other similar sheet materials. High Accuracy test for all kinds of paper, anodized aluminum, release paper, release film, isolation paper, glassine silicone oil paper, protective film, transfer film, composite film, tape, gluing agent and other products, can measure tensile strength, disbonding force, Tensile Strength, Peel Strength, elongation, fracture length, Tensile Energy Absorption, Tensile Energy Absorption Index, Tensile Energy Absorption Index.
Features
1. Adopt 7-inch high definition Touchscreen, microcomputer control, paper Tensile Strength professional measurement and control software.
2. Support Chinese/English Operating system.
3. There are various test shutdown modes, including arrival displacement, arrival deformation, arrival force value, fracture judgment, fracture judgment percentage, force value maintenance, and stress maintenance, to meet different material testing requirements.
4. Force value units are diverse, including KN, N, Kg, Kgf, Ibf, and the number of decimal places can be selected from 1 to 3.
5. Variety of deformation units, including m, dm, cm, mm, in, with 1 to 3 decimal places available.
6. Variety of intensity units, including Pa, kPa, MPa, bar, and 1 to 3 decimal places.
7. Precision ball screw drive system with double guide rails on both sides (non-optical axis linear guide rails) to improve the accuracy of transmission displacement and achieve stepless speed regulation.
8. Intelligent calculation test results, with three test functions of MAX Maximum, average value, and real-time value.
9. Equipped with a miniature silent printer, the test results can be output for group statistical analysis.
10. The system comes with overload protection, limit protection, and emergency power failure protection, allowing for no human failures.
11. USB connection computer supports Excel data statistics, test report printout (optional).
Principle
This machine adopts horizontal structure, High Accuracy Deceleration Servo Drive System motor to drag the load chuck, and the loading performance is stable. The whole machine is composed of drag motor, host shell, microcomputer controller, micro printer, etc. The force measurement unit is composed of High Accuracy Force Value Sensor and Central Processor Digital Control system.
Applications
Paper, Cardboard, Paper Wipes, Wipes, Anodized Aluminum, Release Paper, Release Film, Isolation Paper, Gracine Silicone Oil Paper, Protective Film, Transfer Film, Composite Film, Tape, Gluing Agent
Standards
ISO 1924 "Paper and Cardboard - Determination of Tensile Strength", GB/T 12914 "Paper and Cardboard - Determination of Tensile Strength (Constant Tensile Method) ", ISO 1924-2 "Paper and Cardboard - Determination of Tensile Strength, Part 2: Constant Tensile Method"
Steps
1. Prepare the sample to ensure that the width is within the range of 0 to 30mm.
2. Turn on the power supply, start the device, and select the Chinese/English Operating system.
3. Set test parameters, including loading speed (adjustable from 1 to 500mm/min), shutdown mode, force unit, deformation unit, strength unit, etc.
4. Install the sample into the load chuck.
5. Start the test, the equipment automatically performs stretching, and real-time monitoring of force values, displacements, and other data.
6. After the test is completed, the equipment automatically stops, displays and records MAX Maximum, average, and real-time values.
7. Use a micro printer to output test results, or connect to a computer via USB for Excel data statistics and report printing.
Notice
• Make sure the power supply is 220V 50Hz to avoid voltage instability.
• Operating Ambient Temperature should be maintained at 10~ 35 ℃, Humidity 20~ 80%.
• The width of the sample should not exceed 30mm to avoid affecting the Test accuracy.
• Regularly check the transmission system and guide rails to ensure smooth operation.
• Before use, confirm that the overload protection and limit protection functions are normal.
• Avoid operating equipment in humid or extreme environments.
• Use the power-off protection function in emergency situations.
