Overview

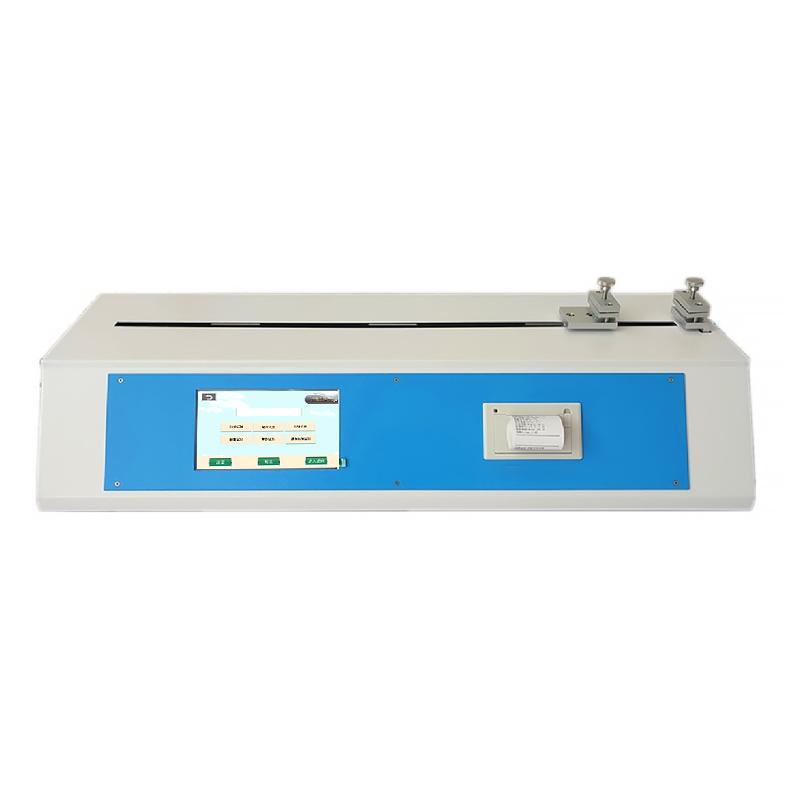

JW103CW horizontal paper Tensile Strength Tester is a special equipment for measuring Tensile Strength, Tensile Index, Elongation at Break and Tensile Energy Absorption index of paper and Cardboard, paper towels, wipes and other similar thin sheet materials. High Accuracy test for all kinds of paper, anodized aluminum, release paper, release film, isolation paper, glassine silicone oil paper, protective film, transfer film, composite film, tape, gluing agent and other products, can measure tensile strength, disbonding force, Tensile Strength, Peel Strength, elongation, fracture length, Tensile Energy Absorption, Tensile Energy Absorption Index, Tensile Energy Absorption Index.
Features
1. Adopt 7-inch high definition Touchscreen, microcomputer control, equipped with paper Tensile Strength professional measurement and control software.
2. Support Chinese/English Operating system.
3. Provide a variety of test shutdown modes, including arrival displacement, arrival deformation, arrival force, fracture judgment, fracture judgment percentage, force maintenance, and stress maintenance, to meet different material testing requirements.
4. Force units can be selected from KN, N, Kg, Kgf, and Ibf, with 1 to 3 decimal places available.
5. The deformation unit can be selected from m, dm, cm, mm, in, and the number of decimal places can be selected from 1 to 3.
6. Strength units can be selected from Pa, kPa, MPa, bar, and 1 to 3 decimal places can be selected.
7. Adopt a precision ball screw drive system with double guide rails (non-optical axis linear guide rails) on both sides to improve the accuracy of transmission displacement and achieve stepless speed regulation.
8. Intelligent calculation test results, with three test functions of MAX Maximum, average value, and real-time value.
9. Equipped with a miniature silent printer, the test results can be output for group statistical analysis.
10. The system comes with overload protection, limit protection, and emergency power failure protection, ensuring safe and reliable operation.
11. USB connection computer supports Excel data statistics and test report printout (optional).
Principle
The machine adopts a horizontal structure, and the load chuck is dragged by the motor of the High Accuracy Deceleration Servo Drive System, and the loading performance is smooth. The whole machine is composed of a drag motor, a host shell, a microcomputer controller and a micro-printer. The force measurement unit is composed of a High Accuracy Force Value Sensor and a Central Processor Digital Control system.
Applications
Paper, Cardboard, Paper Wipes, Wipes, Anodized Aluminum, Release Paper, Release Film, Isolation Paper, Gracine Silicone Oil Paper, Protective Film, Transfer Film, Composite Film, Tape, Gluing Agent
Standards
ISO 1924 "Paper and Cardboard - Determination of Tensile Strength", GB/T 12914 "Paper and Cardboard - Determination of Tensile Strength (Constant Tensile Method) ", ISO 1924-2 "Paper and Cardboard - Determination of Tensile Strength, Part 2: Constant Tensile Method"
Steps
1. Prepare the sample to ensure that the width is within the range of 0 to 30mm.
2. Turn on the power supply, start the device, and select the Chinese/English Operating system.
3. Set test parameters, including loading speed (adjustable from 1 to 500mm/min), shutdown mode, unit selection, etc.
4. Install the specimen to the load chuck.
5. Start testing, and the device automatically loads and records data.
6. After the test is completed, check the results (MAX Maximum, average, real-time value).
7. Use a micro printer to output test reports or connect to a computer via USB for data statistics.
Notice
• Ensure that the Ambient Temperature is within the range of 10~ 35 ° C and the Humidity is within the range of 20~ 80%.
• Check that the power supply is 220V 50Hz before use to avoid voltage instability.
• The width of the sample shall not exceed 30mm to prevent overloading of the equipment.
• Pay attention to safety during operation, the system has its own protection function, but avoid human error.
• Maintain the transmission system regularly to ensure the normal operation of the precision ball screw and guide rail.
• Do not touch moving parts during the test to prevent accidental injury.
