Overview

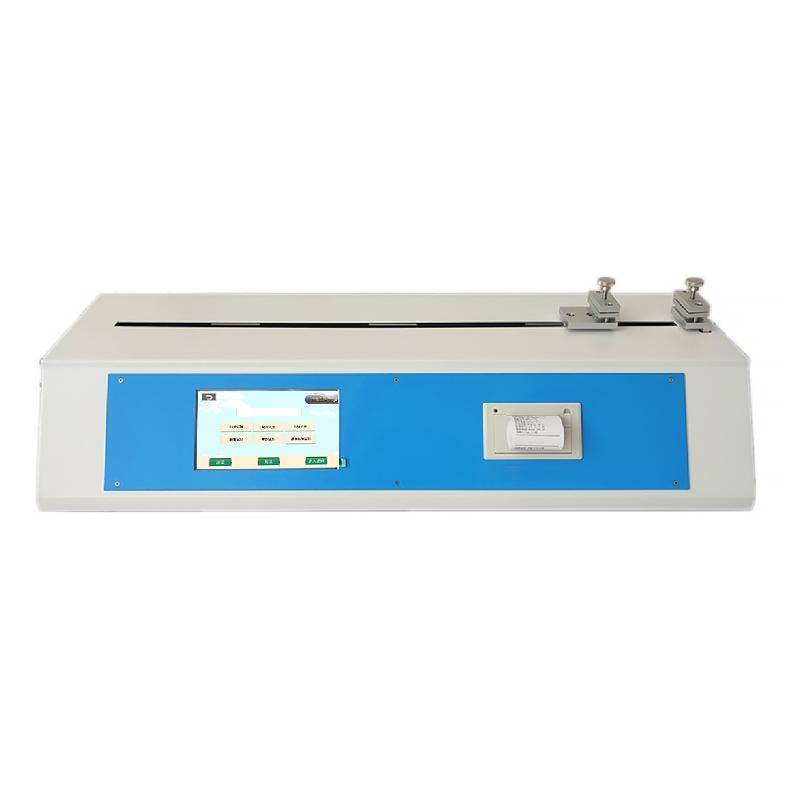

JW103CW horizontal paper Tensile Strength Tester is a professional test equipment of JINGWEN brand, model JW103CW-100N. It adopts horizontal structure and is equipped with special software for paper Tensile Strength, Tensile Index, Break Elongation and Tensile Energy Absorption Index of paper and Cardboard, paper towels, wet wipes and other thin sheet materials. This testing machine is suitable for High Accuracy testing of various types of paper, anodized aluminum, release paper, release film, isolation paper, glassine silicone oil paper, protective film, transfer film, composite film, tape, gluing agent and other products, including tensile strength, disbonding force, Tensile Strength, Peel Strength, elongation, fracture length, Tensile Energy Absorption, Tensile Energy Absorption Index and Tensile Energy Absorption Index.
Features
1. Adopt 7-inch high definition Touchscreen, microcomputer control, equipped with paper Tensile Strength professional measurement and control software.
2. Support Chinese/English Operating system.
3. There are various test shutdown modes, including arrival displacement, arrival deformation, arrival force value, fracture judgment, fracture judgment percentage, force value maintenance, and stress maintenance, to meet different material testing requirements.
4. Force units can be selected from KN, N, Kg, Kgf, and Ibf, with 1 to 3 decimal places.
5. The deformation unit can be selected from m, dm, cm, mm, in, with 1 to 3 decimal places.
6. Strength units can be selected from Pa, kPa, MPa, bar, with 1 to 3 decimal places.
7. Adopt a precision ball screw drive system with double guide rails (non-optical axis linear guide rails) on both sides to improve the accuracy of transmission displacement and achieve stepless speed regulation.
8. Intelligent calculation test results, with three test functions of MAX Maximum, average value, and real-time value.
9. Equipped with a miniature silent printer, the test results can be output for group statistical analysis.
10. The system comes with overload protection, limit protection, and emergency power failure protection, allowing for no human failures.
11. USB connection computer supports Excel data statistics and test report printout (optional).
Principle
This machine adopts horizontal structure, and the load chuck is dragged by the motor of the High Accuracy Deceleration Servo Drive System, and the loading performance is smooth. The whole machine includes components such as the drag motor, the main case, the microcomputer controller and the micro printer. The force measurement unit is composed of a digital Control system of High Accuracy Force Sensor and Central Processor to ensure the accuracy and Stability of the test.
Applications
Paper, Cardboard, Paper Wipes, Wipes, Anodized Aluminum, Release Paper, Release Film, Isolation Paper, Gracine Silicone Oil Paper, Protective Film, Transfer Film, Composite Film, Tape, Gluing Agent
Standards
ISO 1924 "Paper and Cardboard - Determination of Tensile Strength", GB/T 12914 "Paper and Cardboard - Determination of Tensile Strength (Constant Tensile Method) ", ISO 1924-2 "Paper and Cardboard - Determination of Tensile Strength, Part 2: Constant Tensile Method"
Steps
1. Prepare the sample to ensure that the width is within the range of 0 to 30mm.
2. Turn on the power supply of the device and start the microcomputer controller.
3. Set test parameters on the 7-inch high definition Touchscreen, such as loading speed (1-500mm/min adjustable), stop mode, etc.
4. Install the sample into the load chuck.
5. Start the test, and the equipment automatically performs the stretching process.
6. After the test is completed, check the results and choose to print or export the data via USB.
7. Turn off the power of the device.
Notice
• Ensure that the Ambient Temperature is within the range of 10~ 35 ° C and the Humidity is within the range of 20~ 80%.
• Check that the power supply is 220V 50Hz before use to avoid voltage instability.
• The width of the sample shall not exceed 30mm to prevent overloading.
• Pay attention to overload protection and limit protection functions during operation to avoid equipment damage.
• Maintain the transmission system regularly to ensure the normal operation of the precision ball screw and guide rail.
• Use the power-off protection function in emergency situations.
Make sure the USB connection is stable when exporting data.
