Overview

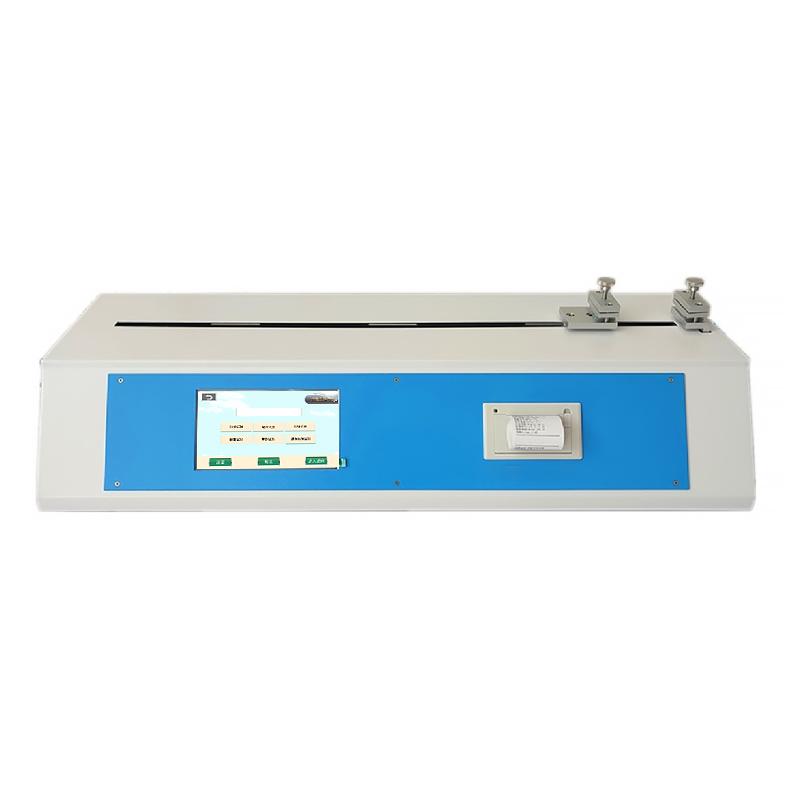

JW103CW horizontal paper Tensile Strength Tester is a professional test equipment of JINGWEN brand, model JW103CW-200N. It uses special software for paper Tensile Strength to determine the Tensile Strength, Tensile Index, Break Elongation and Tensile Energy Absorption indicators of paper and thin sheet materials such as Cardboard, paper towels and wipes. This testing machine is suitable for High Accuracy testing of various types of paper, anodized aluminum, release paper, release film, isolation paper, glassine silicone oil paper, protective film, transfer film, composite film, tape, gluing agent and other products. It can measure tensile force, disbonding force, Tensile Strength, Peel Strength, elongation, fracture length, Tensile Energy Absorption, Tensile Energy Absorption Index and Tensile Energy Absorption Index.
Features
1. Adopt 7-inch high definition Touchscreen, microcomputer control, equipped with paper Tensile Strength professional measurement and control software.
2. Support Chinese/English Operating system.
3. Provide a variety of test shutdown modes, including arrival displacement, arrival deformation, arrival force, fracture judgment, fracture judgment percentage, force maintenance, and stress maintenance, to meet different material testing requirements.
4. Force units can be selected from KN, N, Kg, Kgf, and Ibf, with 1 to 3 decimal places available.
5. The deformation unit can be selected from m, dm, cm, mm, in, and the number of decimal places can be selected from 1 to 3.
6. Strength units can be selected from Pa, kPa, MPa, bar, and 1 to 3 decimal places can be selected.
7. Adopt a precision ball screw drive system with double guide rails (non-optical axis linear guide rails) on both sides to improve the accuracy of transmission displacement and achieve stepless speed regulation.
8. Intelligent calculation test results, with three test functions of MAX Maximum, average value, and real-time value.
9. Equipped with a miniature silent printer, the test results can be output for group statistical analysis.
10. The system comes with overload protection, limit protection, and emergency power failure protection to ensure that human operation is free of malfunctions.
11. USB connection computer supports Excel data statistics and test report printout (optional).
Principle
The machine adopts a horizontal structure, and the load chuck is dragged by the motor of the High Accuracy Deceleration Servo Drive System, and the loading performance is smooth. The whole machine is composed of a drag motor, a host shell, a microcomputer controller and a micro-printer. The force measurement unit is composed of a High Accuracy Force Value Sensor and a Central Processor Digital Control system.
Applications
Paper, Cardboard, Paper Wipes, Wipes, Anodized Aluminum, Release Paper, Release Film, Isolation Paper, Gracine Silicone Oil Paper, Protective Film, Transfer Film, Composite Film, Tape, Gluing Agent
Standards
ISO 1924 "Paper and Cardboard - Determination of Tensile Strength", GB/T 12914 "Paper and Cardboard - Determination of Tensile Strength (Constant Tensile Method) ", ISO 1924-2 "Paper and Cardboard - Determination of Tensile Strength, Part 2: Constant Tensile Method"
Steps
1. Prepare the sample to ensure that the width is within the range of 0 to 30mm.
2. Turn on the power supply of the device and start the microcomputer controller.
3. Set test parameters on the 7-inch high definition Touchscreen, including loading speed (1-500mm/min adjustable), stop mode, etc.
4. Install the sample into the load chuck.
5. Start the test, and the equipment automatically performs the stretching operation.
6. After the test is completed, check the MAX Maximum, average, real-time value, and other results.
7. Use a miniature silent printer to output test reports, or connect to a computer via USB for Excel data statistics.
Notice
* Ensure that the Ambient Temperature is in the range of 10~ 35 ° C and the Humidity is in the range of 20~ 80%.
Check that the power supply is 220V 50Hz before use to avoid voltage instability.
The width of the specimen should not exceed 30mm to prevent overloading of the equipment.
When operating, pay attention to the overload protection, limit protection and emergency power failure protection functions that come with the system.
Maintain the transmission system regularly to ensure that the precision ball screws and linear slides work properly.
* Avoid long-term use in humid or high temperature environments to prevent equipment damage.
