Overview

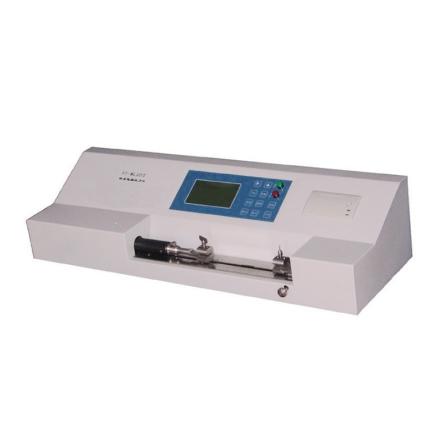

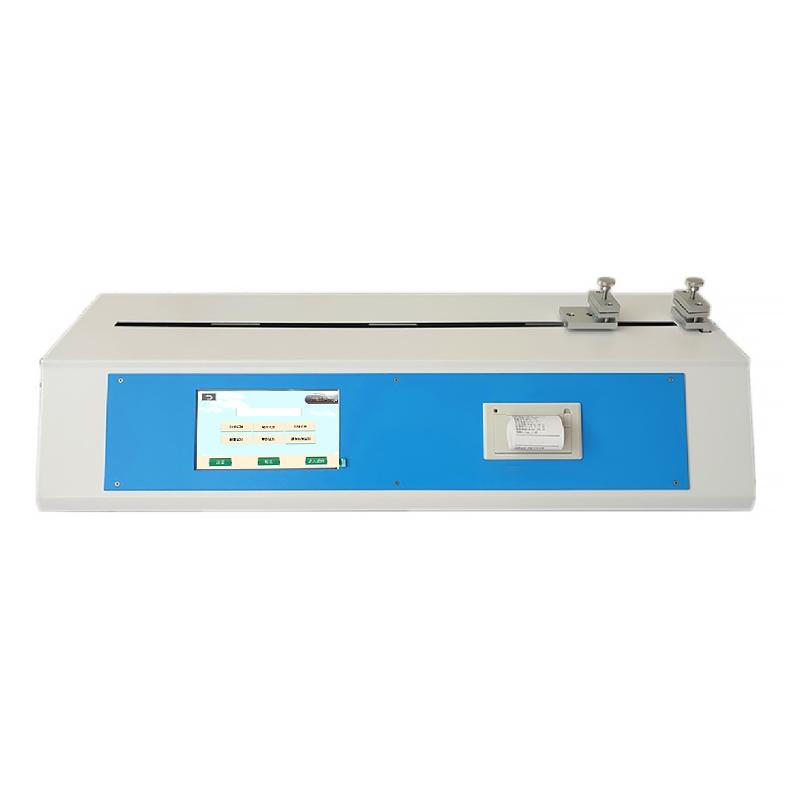

JW103CW horizontal paper Tensile Strength Tester is a special equipment for measuring Tensile Strength, Tensile Index, Elongation at Break and Tensile Energy Absorption index of paper and Cardboard, paper towels, wipes and other similar thin sheet materials. High Accuracy test for all kinds of paper, anodized aluminum, release paper, release film, isolation paper, glassine silicone oil paper, protective film, transfer film, composite film, tape, gluing agent and other products, can measure tensile strength, disbonding force, Tensile Strength, Peel Strength, elongation, fracture length, Tensile Energy Absorption, Tensile Energy Absorption Index, Tensile Energy Absorption Index.
Features

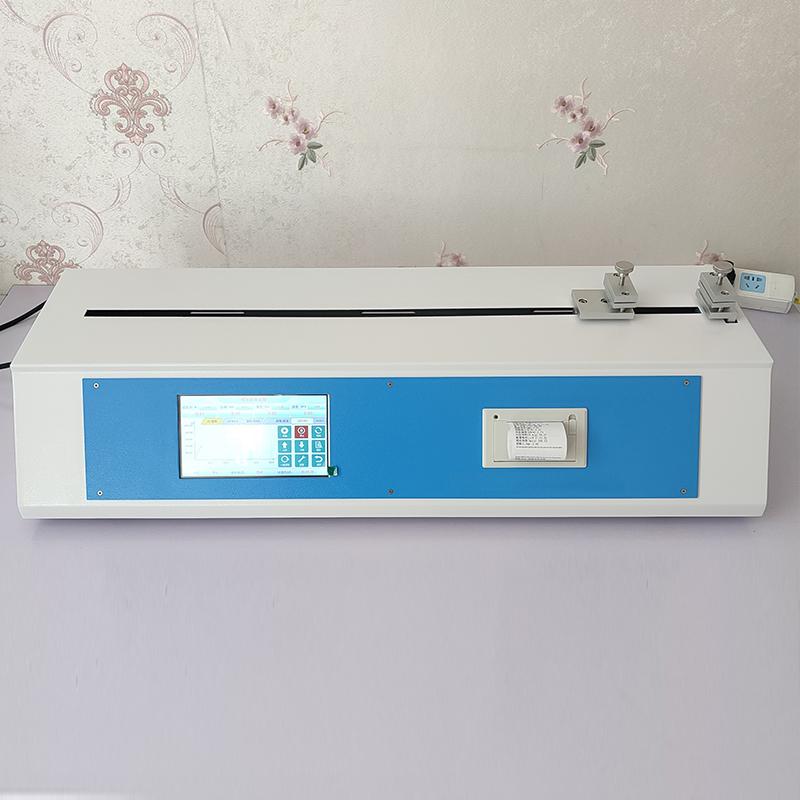

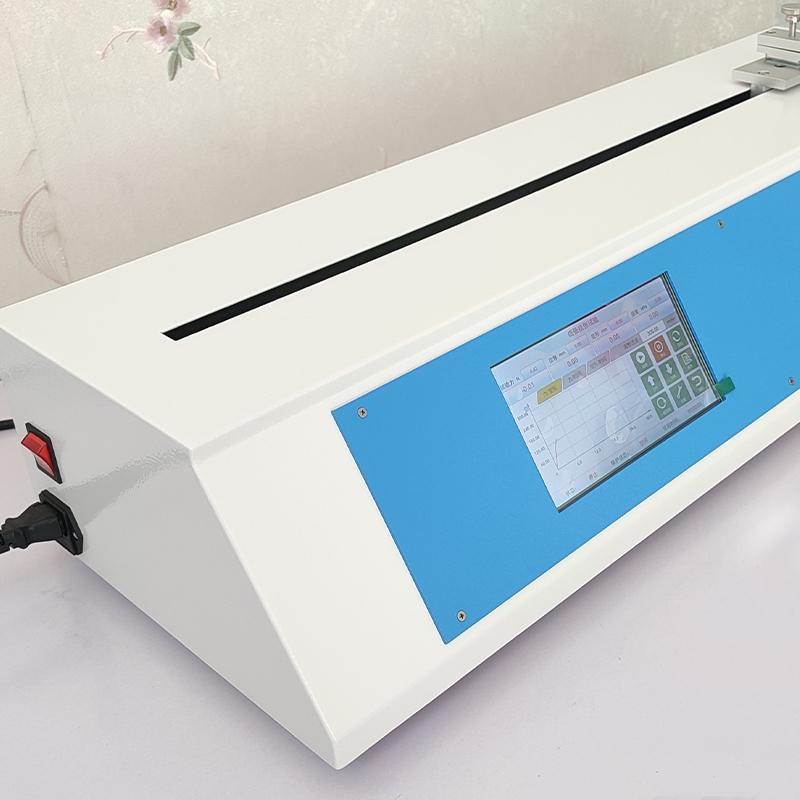

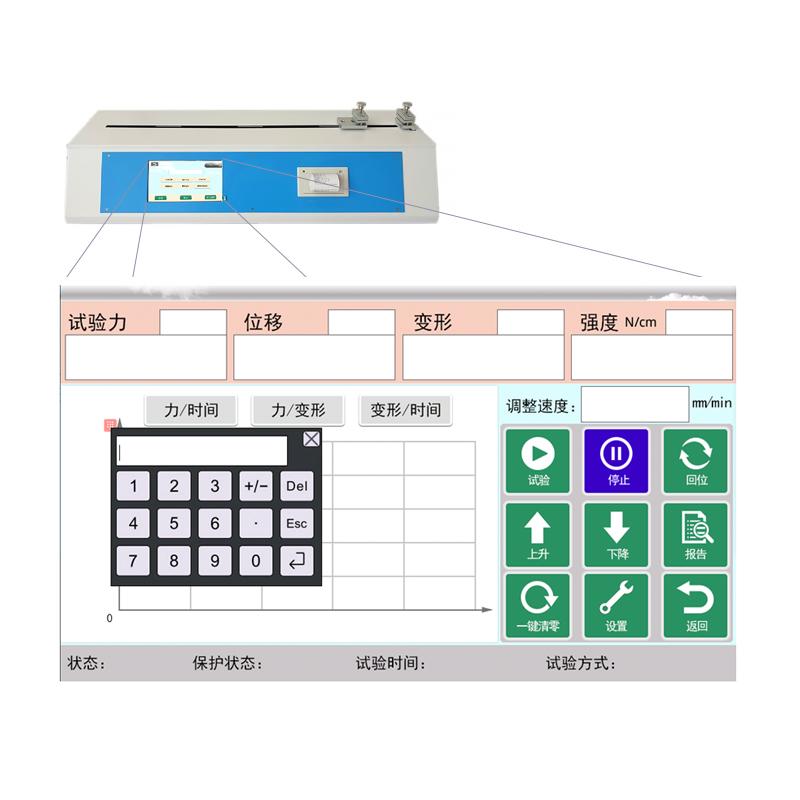

1. Adopt 7-inch high definition Touchscreen, microcomputer control, paper Tensile Strength professional measurement and control software
2. Support Chinese/English Operating system
3. The test shutdown mode includes arrival displacement, arrival deformation, arrival force value, fracture judgment, fracture judgment percentage, force value maintenance, stress maintenance, and multiple shutdown modes to meet different material testing requirements
4. Force units are KN, N, Kg, Kgf, Ibf, and the number of decimal places is 1 to 3 decimal places
5. The deformation units are m, dm, cm, mm, in, and the number of decimal places is selected from 1 to 3 decimal places
6. Strength units include Pa, kPa, MPa, bar, and choose 1 to 3 decimal places
7. Precision ball screw drive system, double guide rails on both sides (non-optical axis linear guide rails) greatly improve the accuracy of transmission displacement and achieve stepless speed regulation
8. Intelligent operation test results have three test functions: MAX Maximum, average value, and real-time value

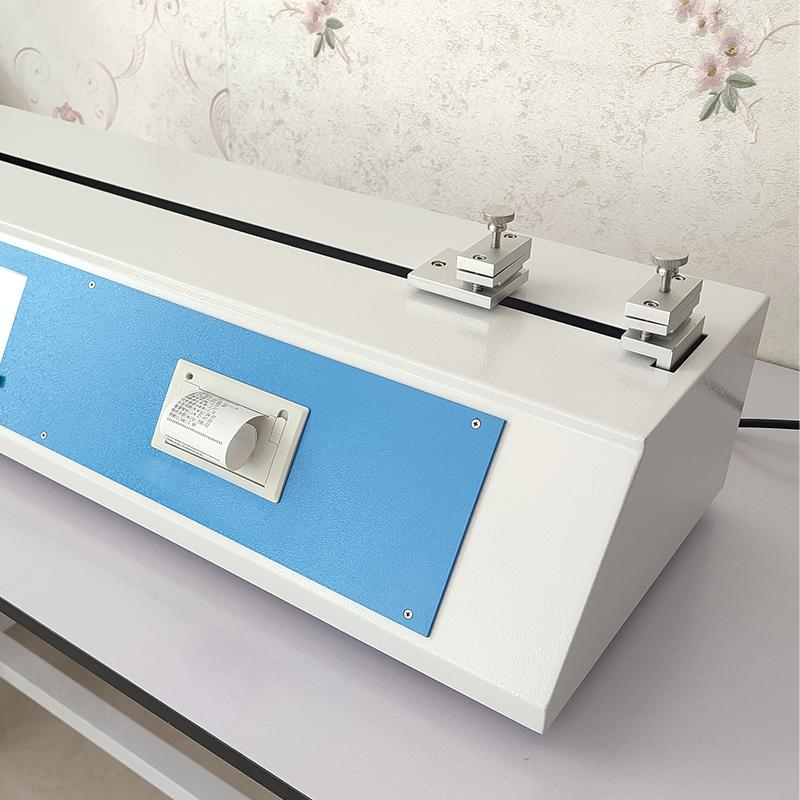

9. Equipped with a miniature silent printer, the test results can be output for group statistical analysis
10. The system comes with overload protection, limit protection, emergency power failure protection, and zero failure for human operation
11. USB connection computer supports Excel data statistics, test report printout (optional)
Principle
This machine adopts horizontal structure, High Accuracy Deceleration Servo Drive System motor to drag the load chuck, and the loading performance is stable. The whole machine is composed of a drag motor, a host shell, a microcomputer controller, a micro printer, etc. The force measurement unit is composed of a High Accuracy Force Value Sensor and a Central Processor Digital Control system.
Applications
Paper, Cardboard, Paper Wipes, Wipes, Anodized Aluminum, Release Paper, Release Film, Isolation Paper, Gracine Silicone Oil Paper, Protective Film, Transfer Film, Composite Film, Tape, Gluing Agent
Standards
ISO 1924 "Paper and Cardboard - Determination of Tensile Strength", GB/T 12914 "Paper and Cardboard - Determination of Tensile Strength (Constant Tensile Method) ", ISO 1924-2 "Paper and Cardboard - Determination of Tensile Strength, Part 2: Constant Tensile Method"
Steps
1. Prepare the sample
2. Set test parameters (e.g. loading speed, shutdown mode, etc.)

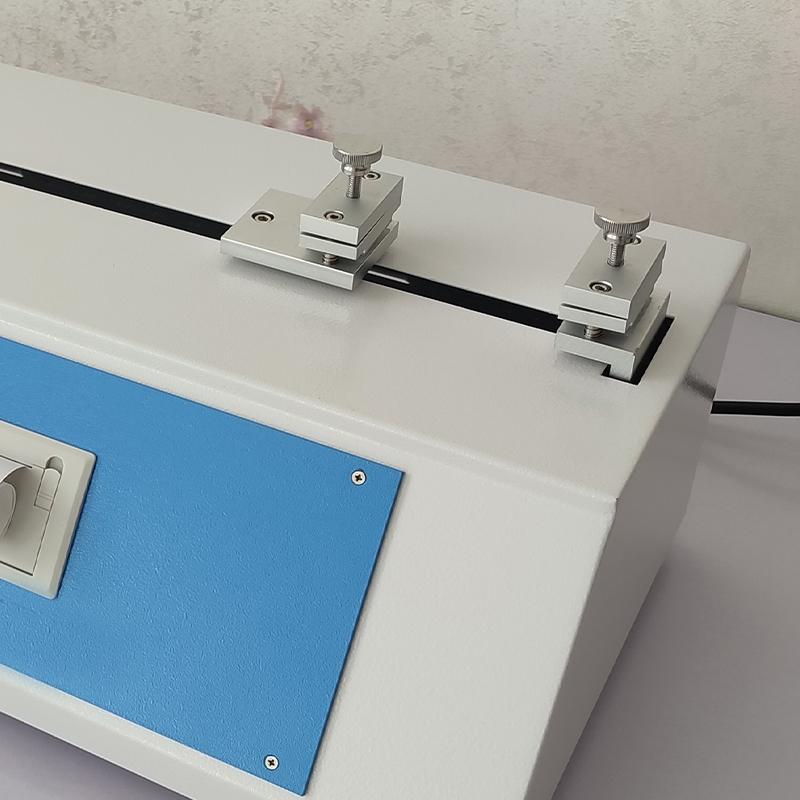

3. Install the sample on the chuck
4. Start the test program
5. Observe the testing process
6. Check the results after the test is completed
7. Use the printer to output the test report (optional)
8. Connect the computer via USB for data statistics (optional)
Notice
• Make sure the power supply is 220V 50Hz
• Ambient Temperature should be maintained at 10~ 35 ℃
• Environmental humidity should be kept at 20~ 80%
• The width of the sample shall not exceed 30mm
• Loading speed range 1-500mm/min, Miscellaneous speed adjustable
• Check overload protection and limit protection functions before use
• Power-off protection can be used in emergencies
• Regularly maintain the transmission system and guide rails
• Avoid use outside the Load Measurement range (0.05-300 N)
