Overview

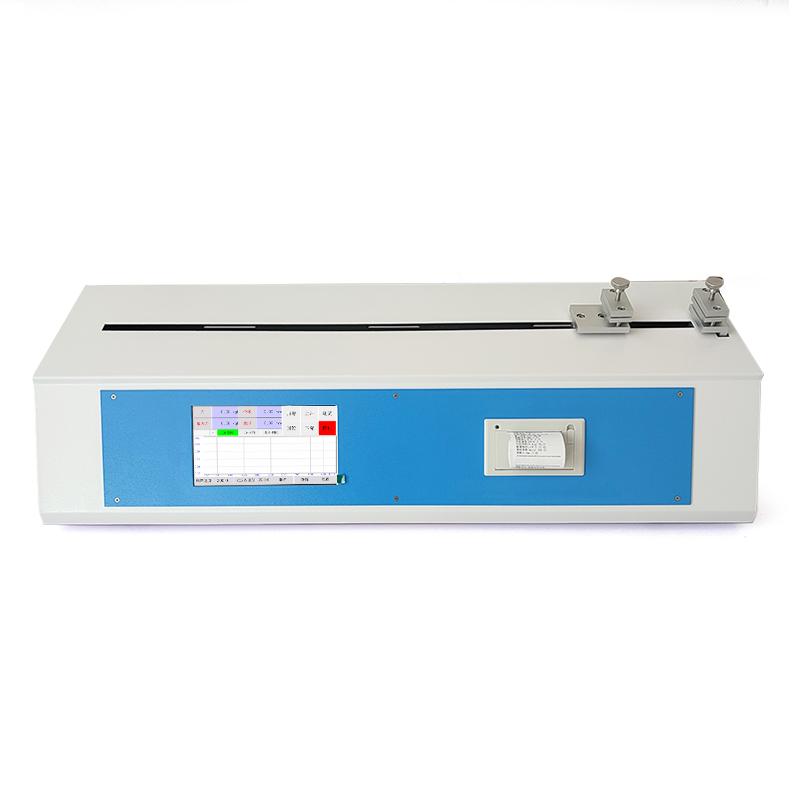

JW103CW horizontal heat sealing Peel strength tester is a special equipment of JINGWEN brand model JW103CW02-50N, which is used to determine the heat sealing strength of films and the 180 degree disbonding test of adhesive tapes. It is suitable for tensile testing of anodized aluminum films, isolation papers, glassin silicone oil papers, Miscellaneous papers, protective films, transfer films, composite films, tapes, gluing agents and other products.
Features
1. Adopt 5-inch high definition Touchscreen, microcomputer control, support Chinese/English Operating system.
2. The test shutdown mode is diverse, including arrival displacement, deformation, and force value. The force value units are KN, N, Kg, Kgf, and Ibf. The deformation units are m, dm, cm, mm, and in. The strength units are Pa, kPa, MPa, and bar. The decimal places can be selected from 1 to 3 digits.
3. Precision ball screw drive system with double guide rails on both sides to improve the accuracy of drive displacement and achieve stepless speed regulation.
4. Intelligent calculation test results, with MAX Maximum, average value, real-time value three test functions.
5. Equipped with a miniature silent printer, the test results can be output for group statistical analysis.
6. The system comes with overload protection, limit protection, emergency power failure protection, and human operation with zero failure.
7. USB connection computer supports Excel data statistics and test report printout (optional).
Principle
This machine adopts horizontal structure, and the high Accuracy deceleration electronic speed control motor drags the load chuck, and the loading performance is smooth. The whole machine is composed of a drag motor, a main shell, a microcomputer controller, a micro printer, etc. The force measurement unit is composed of a High Accuracy Force Value Sensor and a Central Processor Digital Control system.
Applications
Electrochemical aluminum film, isolation paper, gluing silicone oil paper, Miscellaneous paper, protective film, transfer film, composite film, tape, gluing agent
