Overview
JW103CW horizontal heat sealing Peel strength tester is a special testing machine for measuring film heat sealing strength and 180 degree disbonding test of adhesive tape. It is suitable for tensile testing of anodized aluminum film, isolation paper, Grasin silicone oil paper, Miscellaneous paper, protective film, transfer film, composite film, tape, gluing agent and other products.
Features

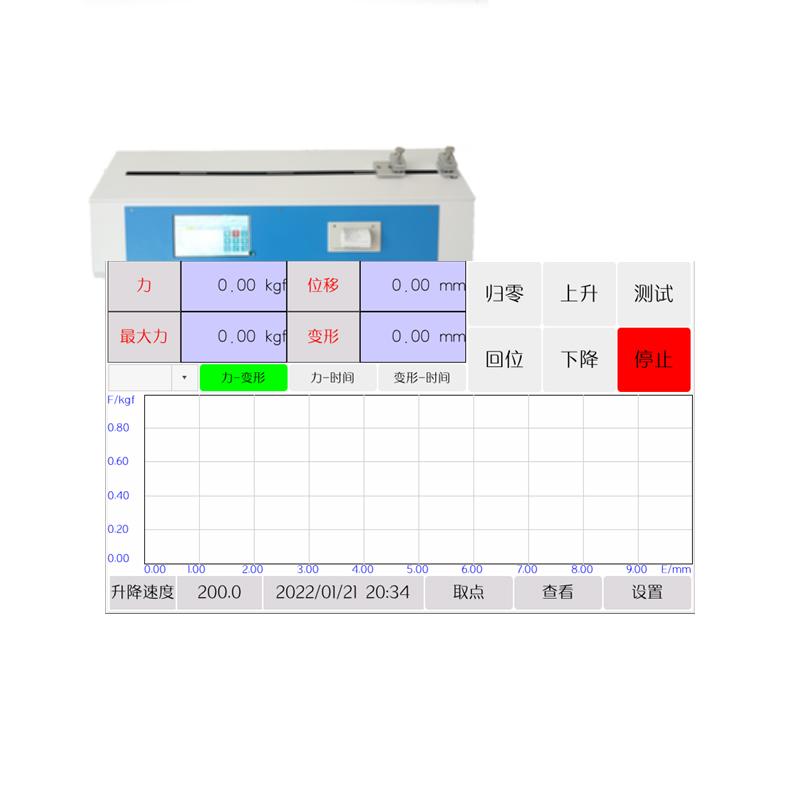

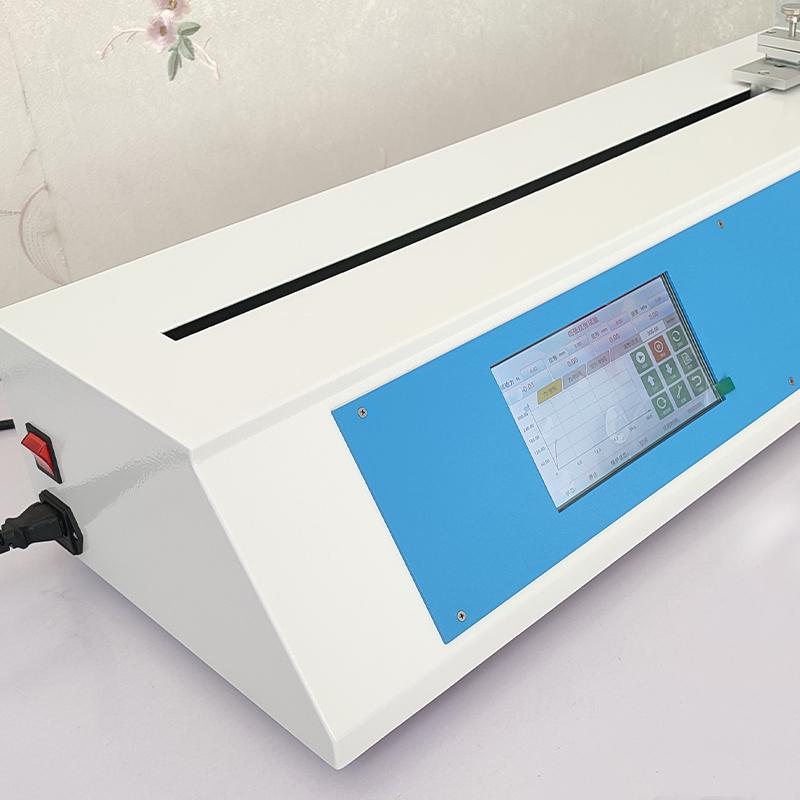

1. Adopt 5-inch high definition Touchscreen, microcomputer control
2. Support Chinese/English Operating system
3. Test stop mode, reach displacement, reach deformation, reach force value, force value units are KN, N, Kg, Kgf, Ibf and other units to choose from
4. The deformation units are m, dm, cm, mm, in
5. Strength units are Pa, kPa, MPa, bar
6. Precision ball screw transmission system, double guide rails on both sides greatly improve the accuracy of transmission displacement, and can achieve stepless speed regulation function
7. Intelligent operation test results have three test functions: MAX Maximum, Average, and Real-time value

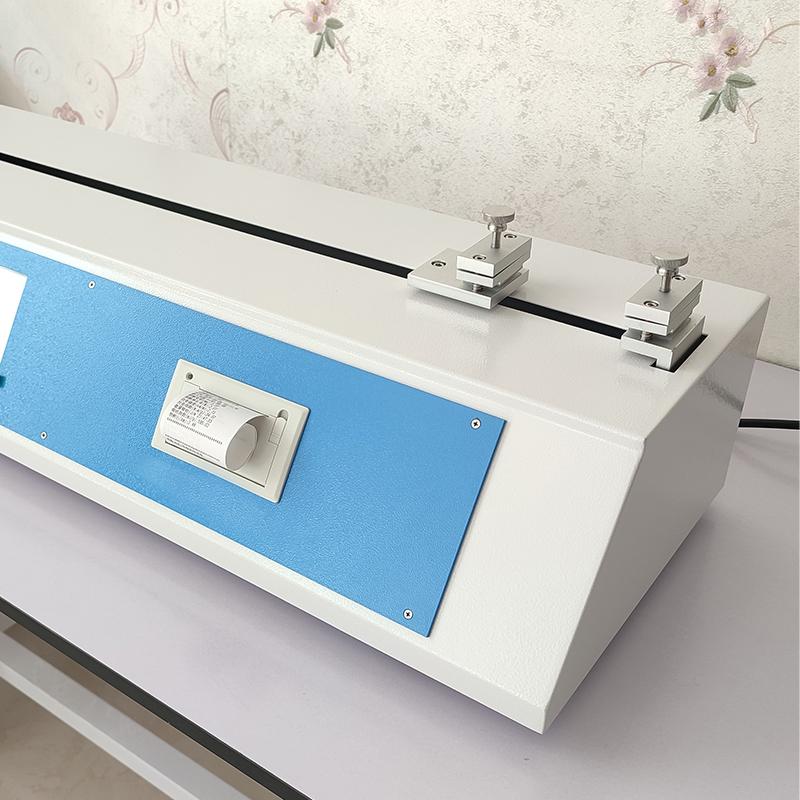

8. Equipped with a miniature silent printer, the test results can be output for group statistical analysis
9. The system comes with overload protection, limit protection, emergency power failure protection, and zero failure for human operation
10. USB connection computer supports Excel data statistics, test report printout (optional)
Principle

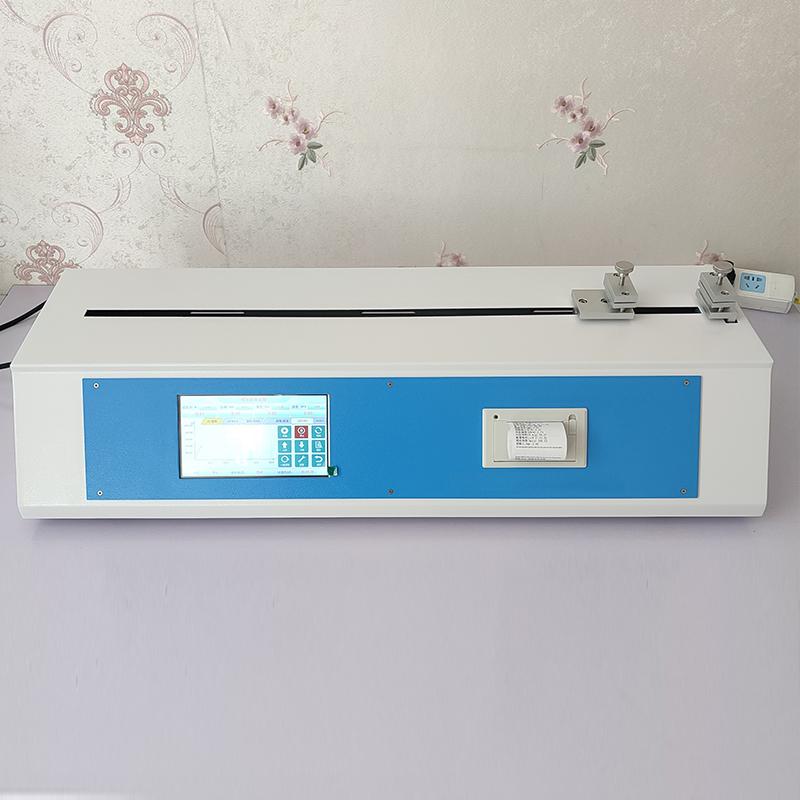

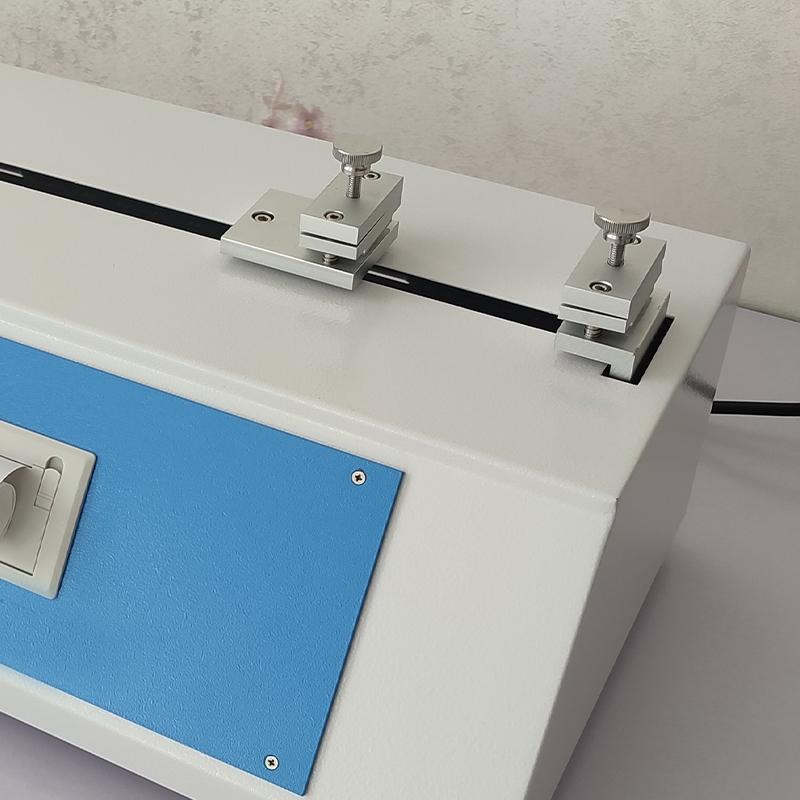

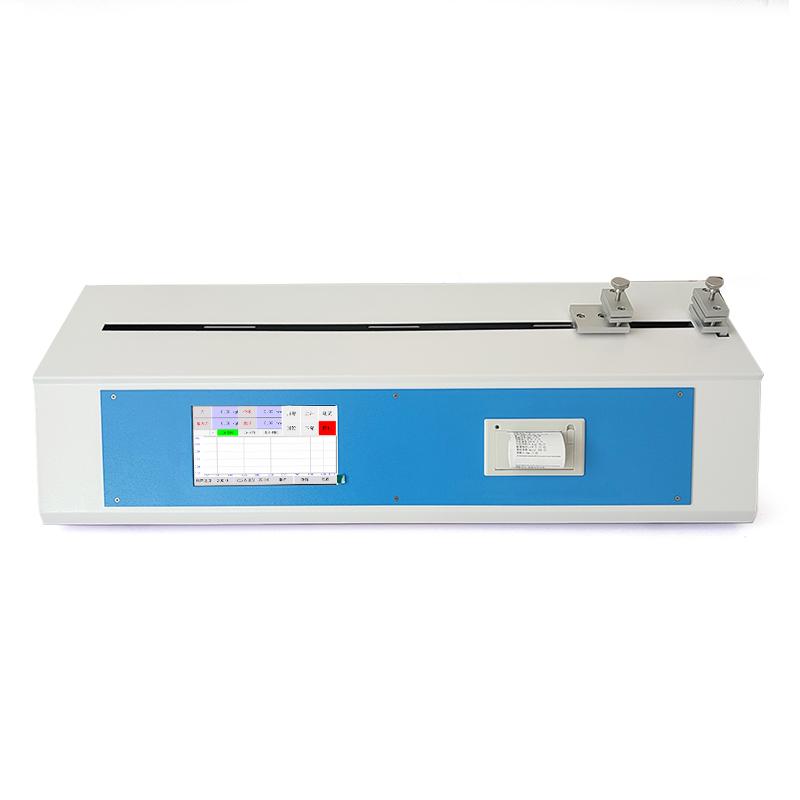

This machine adopts horizontal structure, with High Accuracy deceleration electronic speed control motor to drag the load chuck, and the loading performance is stable. The whole machine is composed of a drag motor, a host shell, a microcomputer controller, a micro printer, etc. The force measurement unit is composed of a High Accuracy Force Value Sensor and a Central Processor Digital Control system.
Applications
Electrochemical aluminum film, isolation paper, gluing silicone oil paper, Miscellaneous paper, protective film, transfer film, composite film, tape, gluing agent
Notice
1. Environmental requirements: Temperature 10~ 35 ℃ Humidity 20~ 80%
2. Power supply voltage: 220V 50Hz
3. Measurement range: 0.03-200 N
4. Accuracy grade: 0.5
5. Loading speed: 1-500mm/min (Miscellaneous speed adjustable)
6. Specimen width: 0~ 30mm
7. Effective Travel: 500mm
