Overview
UV UV curing film Applicator Rxg-01/600uv is a 600mm application width roll-to-roll film equipment with UV ultraviolet curing function. The equipment uses a scratch coating method and is equipped with a 1m oven, which is specially used to apply UV glue to the release film.
Features
1. The application width can reach 600mm to meet the needs of medium width Spreaders
2. Adopt UV ultraviolet curing technology, high curing efficiency
3. Equipped with 1 meter oven, provide drying function
4. Spreader evenly by scraping
5. Unwinding system with tension control to ensure stable operation
6. Touchscreen control (Kunlun Tongtai), easy to operate
7. Production speed adjustable range 0-5m/min, adapt to different production requirements
8. Equipped with 2 inflatable shafts, easy to load and unload coils
Principle

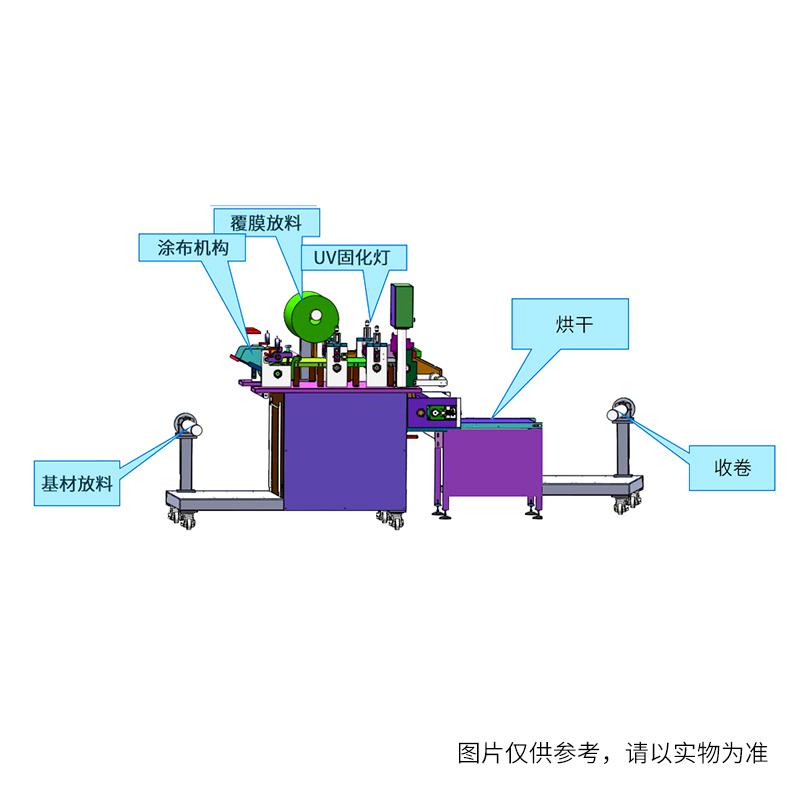

The equipment completes the film process through the process of unwinding → scraping → Laminating → UV curing → drying → winding. First, the coil enters the scraping area through the unwinding system, the Spreader UV glue passes through Laminating, and then enters the UV light curing area (curing area 600 * 500mm, wavelength 350-450nm, main peak wave 365nm) for rapid curing, and then dries in a 1m oven, and finally rolls to complete the entire film process.
Applications
Release film coated with UV glue
Steps
1. Install the coil to the unwinding system
2. Set production parameters through Touchscreen
3. Start the equipment, the coil is scraped and coated with UV glue
4. Laminating process after Spreader
5. After UV light curing area for curing
6. Drying process by oven
7. Finish the film process
Notice
• The power supply of the equipment is three-phase 220V, it is necessary to ensure that the power supply matches
• The production speed is controlled within the range of 0-5m/min
• The application width should not exceed 600mm
• Check whether the air shaft is firmly installed before use
• Pay attention to UV light protection during operation
• Regularly check the status of aviation plugs and switches
