Overview

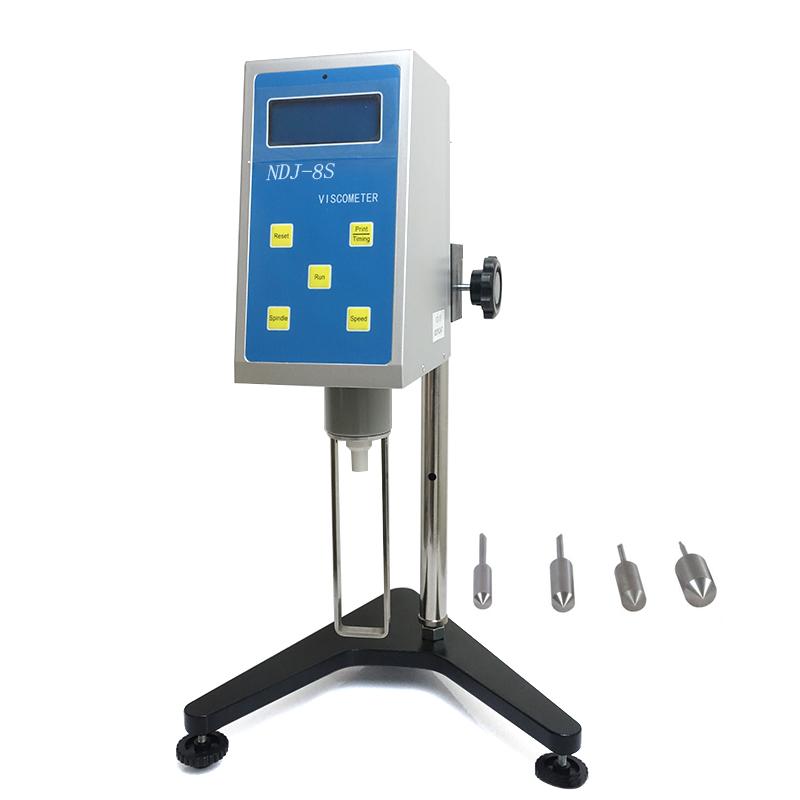

The NDJ-8S digital Rotational Viscometer is a digital Rotational Viscometer with a range of 20 to 2,000,000 mPa · s. Its LCD screen can display viscosity, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed.
Features
1. Digital Display mode, can display viscosity, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed
2. Wide viscosity range, covering 20~ 2000000mPa · s
3. High reproducibility, +/- 0.5% F.S
4. Measurement accuracy, +/- 1% F.S
5. Rotor speed multi-speed optional, including 0.3/0 6/1.5/3/6/12/30/60rpm
6. Easy to operate, high accuracy
7. Made of stainless steel, durable
Principle
Based on the principle of torque viscosity measurement, the Viscometer reflects fluid Tack through Rotation speed and resistance.
Applications
Scientific research, production quality control
Steps
1. Connect a dedicated Power Adapter (input 100~ 240V 50~ 60Hz)
2. Select the appropriate rotor (L1 #, L2 #, L3 #, L4 #)
3. Set the required Rotation speed (0.3/0 6/1.5/3/6/12/30/60rpm)
4. Perform viscosity measurement
5. Read the viscosity, Rotation speed, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed displayed on the LCD screen
Notice
• Ensure that the input voltage of the Power Adapter is within the range of 100~ 240V
• Select the correct rotor number to match measurement requirements
• Rotation speed setting is confirmed before measurement
• Regularly check reproducibility and accuracy to ensure reliable measurement results
• Avoid use in unsuitable environments to prevent affecting Measurement accuracy
