Overview

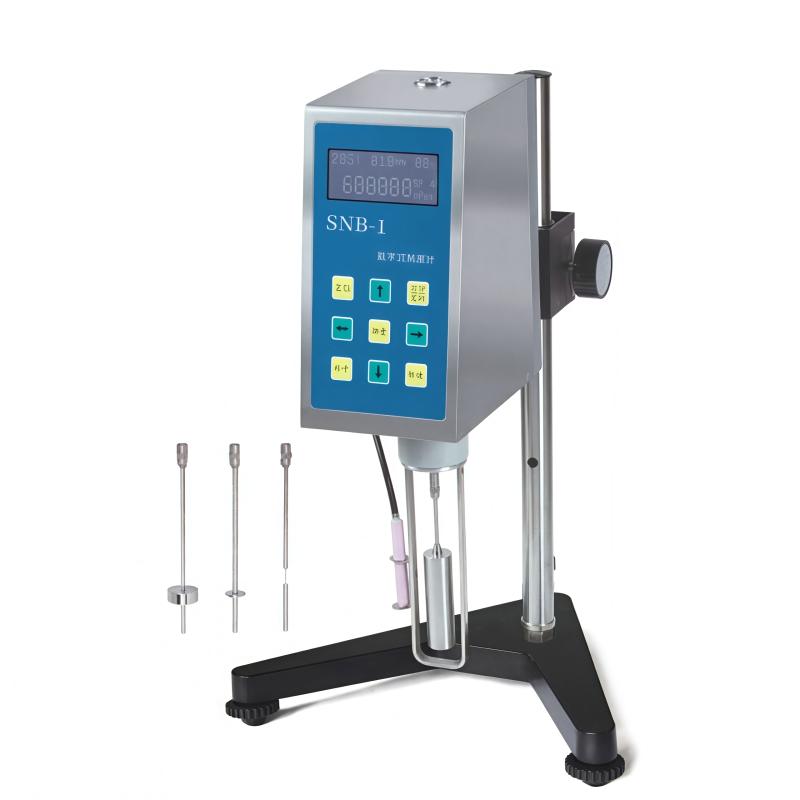

HuiNuo SNB-1 digital display Rotational Viscometer is an automatic Viscosity-Tester with a viscosity measurement range of 20~ 600000mPa · s. The instrument uses LCD screen and button operation, and is equipped with four rotors: L1, L2, L3, and L4. It can display information such as viscosity, Rotation speed, percentile torque, rotor number, and the maximum viscosity value that can be measured at the current Rotation speed of the selected rotor.
Features
1. Digital Display mode, easy to operate
2. Wide viscosity measurement range, covering 20~ 600000mPa · s
3. Equipped with four different specifications of rotors (L1 #, L2 #, L3 #, L4 #)
4. Continuously variable Rotation speed control, Speed range 1~ 60rpm
5. High Accuracy measurement, accuracy +/- 1% F.S, reproducibility +/- 0.5% F.S
6. Comprehensive display information, including viscosity, Rotation speed, percentile torque, rotor number and maximum measurable viscosity value
Principle
The Viscometer measures viscosity by the resistance of the rotor as it swirls/spins in the sample. The instrument uses continuously variable speed control Rotor speed, measures torque and calculates the viscosity value, and finally displays the measurement result on the LCD screen.
Steps
1. Connect the Dedicated Power Adapter
2. Select the appropriate rotor and install it
3. Rotation speed required
4. Immerse the rotor into the sample to be tested
5. Start measuring and reading the viscosity value on the display
6. Record measurement results
