Overview

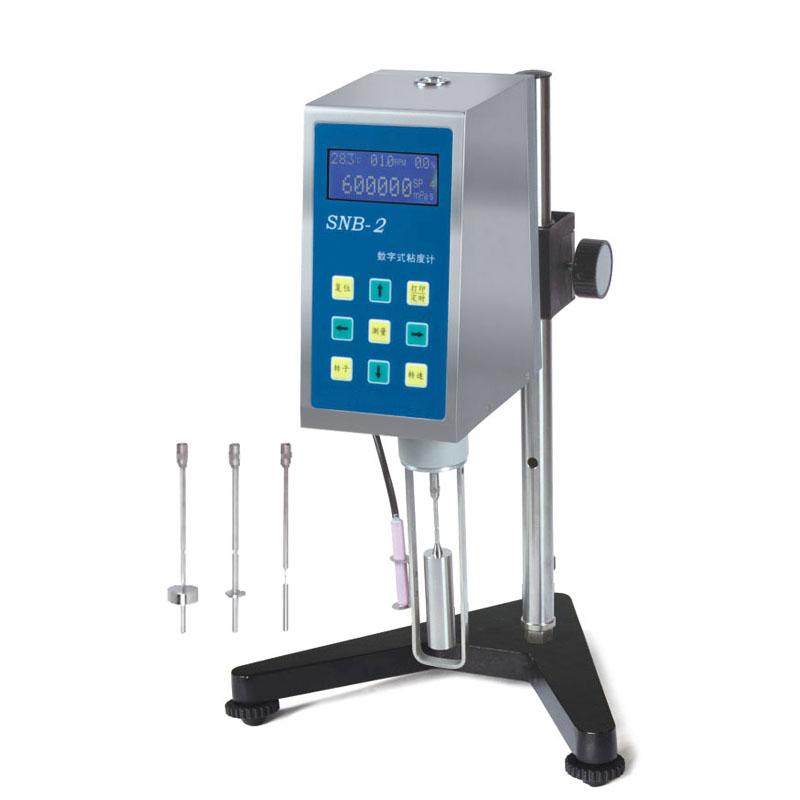

HuiNuo SNB-2 digital display Rotational Viscometer is a digital display Rotational Viscometer with a range of 12~ 6,000,000 mPa · s. Measurement accuracy is +/- 1%. Its LCD screen can display viscosity, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed.
Features
1. Digital Display mode, LCD screen can display viscosity, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed
2. Wide viscosity range, covering 12~ 6000000mPa · s
3. Measurement accuracy of +/- 1% F.S
4. Good reproducibility, +/- 0.5% F.S
5. Continuously variable Rotation speed Control mode, Speed range 0.1~ 99.9rpm
6. Equipped with a dedicated Power Adapter, input 100~ 240V 50~ 60Hz
Principle
The Viscometer uses the swirl/spin Measurement principle to measure viscosity by the resistance of the rotor as it swirls/spins in the liquid. Rotation speed is controlled by stepless variable speed, and the measurement data is displayed in real time on the LCD screen.
Steps
1. Connect the Dedicated Power Adapter
2. Select the appropriate rotor (L1 #, L2 #, L3 #, L4 #)
3. Set the required Rotation speed (0.1~ 99.9rpm)
4. Immerse the rotor in the liquid to be tested
5. Read the viscosity, Rotation speed, percentile torque and other data displayed by the LCD screen
Notice
• Ensure that the input voltage of the Power Adapter is within the range of 100~ 240V before use
Measurement range and Rotation speed
• Keep the rotor clean to avoid affecting Measurement accuracy
• Pay attention to safety when using to avoid liquid splashing
