Overview

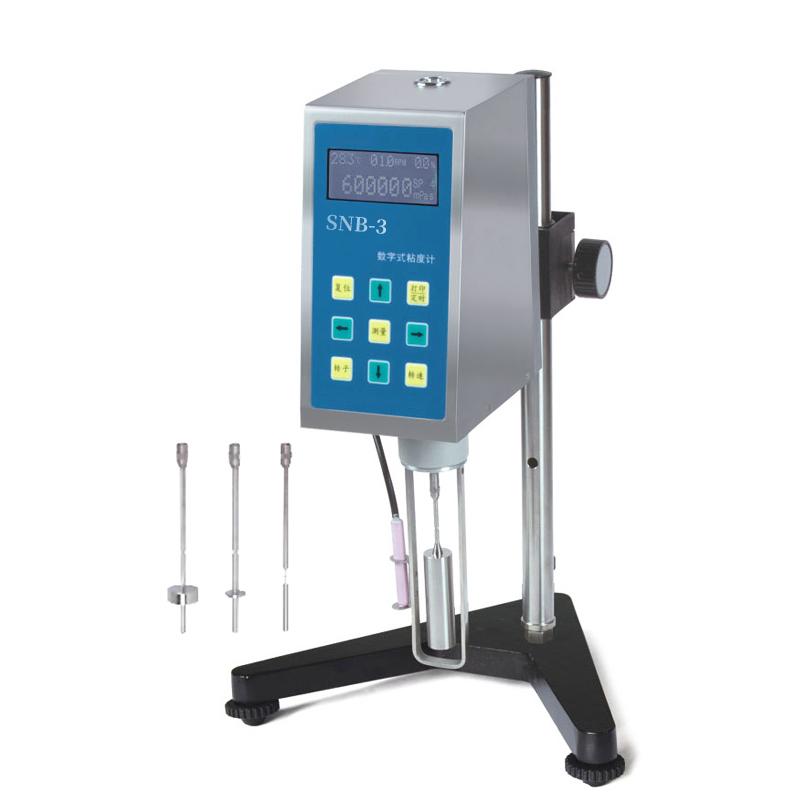

HuiNuo SNB-3 digital display Rotational Viscometer is a device dedicated to solder paste viscosity testing. The LCD screen can display viscosity, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed. Its range is 160~ 80,000,000 mPa · s.
Features
1. Digital Display mode, intuitive display of a variety of parameters
2. Wide viscosity range 160~ 80000000mPa · s
3. Equipped with L1 #, L2 #, L3 #, L4 #various rotor specifications
4. High reproducibility +/- 0.5% F.S and Measurement accuracy +/- 1% F.S
5. Continuously variable Rotation speed control, Speed range 0.1~ 99.9rpm
6. Dedicated Power Adapter, input voltage 100~ 240V 50~ 60Hz
Principle
The Viscometer uses the swirl/spin Measurement principle to determine the viscosity value by the resistance of the rotor as it swirl/spin in the sample. Continuously variable speed control allows precise adjustment of Rotation speed, and the LCD screen displays viscosity, Rotation speed, torque and other related parameters in real time.
Applications
Solder paste viscosity test
Steps
1. Connect the Dedicated Power Adapter
2. Select the appropriate rotor and install it
3. Rotation speed required
4. Immerse the rotor into the sample to be tested
5. Read the viscosity value and related parameters displayed on the LCD screen
