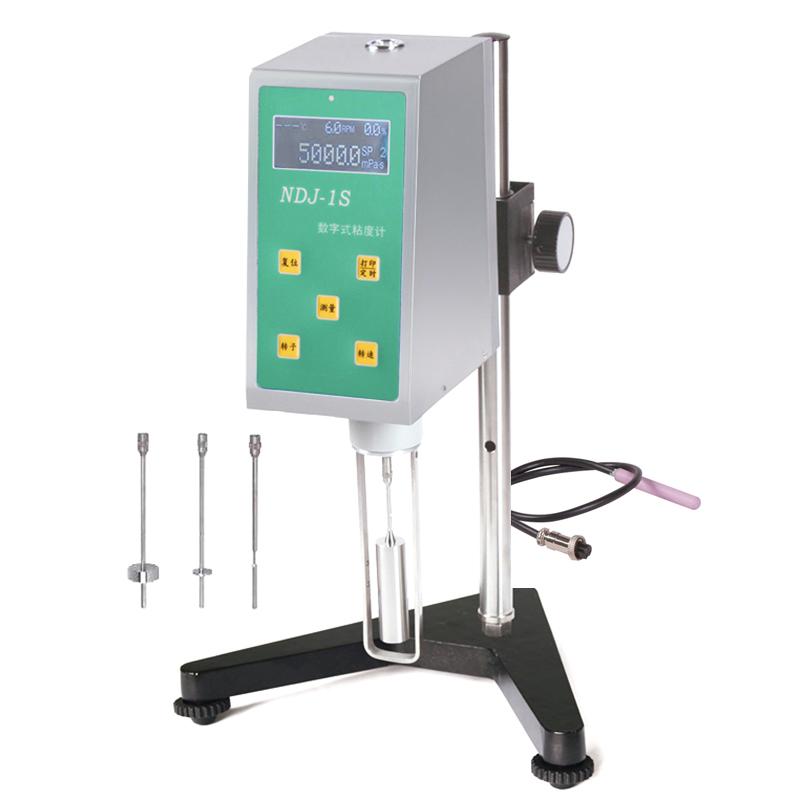

JINGTIAN NDJ-1S RTD digital Digital Rotational Viscometer with RTD temperature sensor

Name: JINGTIAN NDJ-1S RTD digital Digital Rotational Viscometer with RTD temperature sensor
Brand: JingTian
SKU: NB047581
Price: 434.0 USD
Availability: InStock

$ 434.00Ex works

Range 20~ 100000 mPa · s, with RTD temperature sensor can display sample temperature in real time, accuracy of +/- 0.1 ℃, support a variety of Rotor speed selection.

Model

Get Quote

Category : Rotational Viscometer

Brand : JingTian

SKU : NB047581

Service :The delivery and service By NBCLab.Com

Overview

HuiNuo NDJ-1S digital Rotational Viscometer is a digital Rotational Viscometer with a range of 20~ 100000 mPa · s, with RTD temperature sensor to measure sample temperature. The LCD screen can display viscosity, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed.

Features

1. The LCD screen can display viscosity, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed 2. With RTD temperature sensor, the sample temperature can be measured 3. Measurement range: 0~ 100 ℃, accuracy ： +/- 0.1 ℃ 4. Viscosity range: 20~ 100000mPa · s 5. Rotor specifications: L1 #, L2 #, L3 #, L4 # 6. reproducibility ： +/- 1% F.S 7. Measurement accuracy ： +/- 5% F.S 8. Rotor speed: 6/12/30/60rpm

Principle

The Viscometer uses the swirl/spin measurement principle to measure torque and calculate viscosity values in the sample using a rotor. With an RTD temperature sensor, the sample temperature is monitored in real time, and the data is displayed digitally on the LCD screen.

Applications

Viscosity measurement, sample temperature monitoring

Display mode
digital display
Viscosity Range
20~100000 mPa·s
Rotor specification
L1#、L2#、L3#、L4#
reproducibility
±1% F.S
Measurement accuracy
±5% F.S
Power supply Voltage
Dedicated Power Adapter (Input 100~ 240V 50~ 60Hz)
temperature sensor
RTD temperature sensor
Rotor speed
6/12/30/60 rpm
Display information
Viscosity, Rotation speed, percentile torque, rotor number and the maximum measurable viscosity of the selected rotor at the current Rotation speed, etc
Measurement Range
0~100℃
Measurement accuracy
±0.1 ℃
