JINGTIAN NDJ-5S RTD Digital display Digital Rotational Viscometer LCD display 4-speed Rotation speed

Name: JINGTIAN NDJ-5S RTD Digital display Digital Rotational Viscometer LCD display 4-speed Rotation speed
Brand: JingTian
SKU: NB047583
Price: 492.0 USD
Availability: InStock

$ 492.00Ex works

Rotation speed control with four, viscosity measurement range of 20~ 100000mPa · s, repRoducibility +/- 0.5% F. S, LCD screen can display a number of paraMeters such as torque and maximum viscosity value, intuitive and convenient operation.

Model

Get Quote

Category : Rotational Viscometer

Brand : JingTian

SKU : NB047583

Service :The delivery and service By NBCLab.Com

Overview

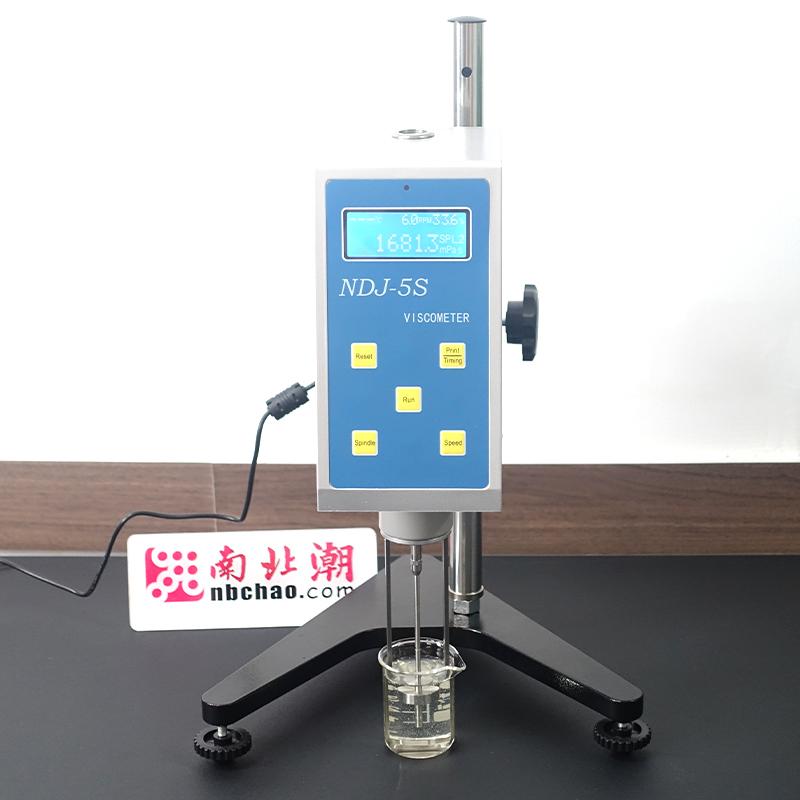

The NDJ-5S digital Rotational Viscometer is a digital Rotational Viscometer with a range of 20 to 100,000 mPa · s. Its LCD screen can display key parameters such as viscosity, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed.

Features

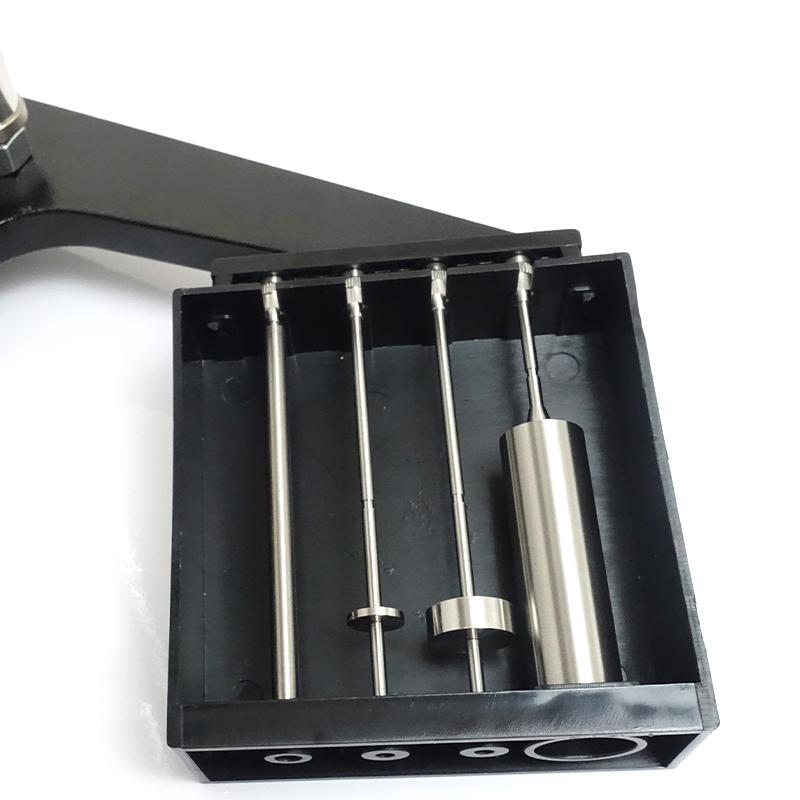

1. Digital Display mode, intuitive display of a variety of parameters 2. Wide viscosity measurement range, covering 20~ 100000mPa · s 3. Provide four rotor specifications: L1 #, L2 #, L3 #, and L4 # 4. High reproducibility, up to +/- 0.5% F.S 5. Measurement accuracy of +/- 1% F.S 4-Speed Rotation speed control, support 6/12/30/60rpm 7. Equipped with RTDS temperature sensor, supports temperature monitoring 8. Use Dedicated Power Adapter, Input Voltage 100~ 240V, Frequency 50~ 60Hz

Principle

Based on the swirl/spin Measurement principle, the Viscometer calculates the viscosity value of the liquid by driving the rotor to swirl/spin in the liquid, measuring the swirl/spin resistance, and displays the relevant parameters in real time using digital display technology.

Applications

Chemical, Petroleum, Food, Pharmaceutical, Coating, Scientific Research Laboratory

Display mode
digital display
Viscosity Range
20~100000 mPa·s
Rotor specification
L1#、L2#、L3#、L4#
reproducibility
±0.5%
Measurement accuracy
±1%
Power supply Voltage
Dedicated Power Adapter (Input 100~ 240V 50~ 60Hz)
temperature sensor
RTD temperature sensor
Rotor speed
Rotation speed 6/12/30/60 rpm
Display information
The LCD screen can display viscosity, Rotation speed, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed

[Q] We have recommendations for measuring the viscosity of coatings and inks, typically ranging from several thousand to tens of thousands of mPa·s.

We recommend using the NDJ-5S digital rotational viscometer. Its measurement range is from 20 to 100,000 mPa·s, which fully covers the range you mentioned. Additionally, it features a digital display for readings, and it can also show rotation speed, torque, and temperature. This makes it very convenient for observing data changes when measuring non-Newtonian fluids like coatings and inks, with good reproducibility and minimal error.

[Q] Our lab frequently needs to measure the viscosity of various samples, such as adhesives and resins, and sometimes we also need to record temperature. What are some suitable viscometers?

The NDJ-5S is quite suitable. It comes with a built-in RTD temperature probe, allowing the temperature to be directly displayed on the LCD screen. For materials sensitive to temperature, such as adhesives and resins, it can simultaneously monitor viscosity changes with temperature. It features four rotors and four speed settings, providing a wide measurement range when combined. Additionally, sample changing and cleaning are straightforward.

[Q] When selecting a viscometer, besides the measurement range, I also care about accuracy and convenience. How does this model perform?

The accuracy is ±1%, with a repeatability of ±0.5%, making the data highly reliable. It's also very convenient to use—just plug in the power adapter, and the LCD screen will display the viscosity, rotational speed, torque, rotor number, and the current maximum measurable value at a glance. There's no need for manual conversions, which saves time and minimizes errors.
