Overview

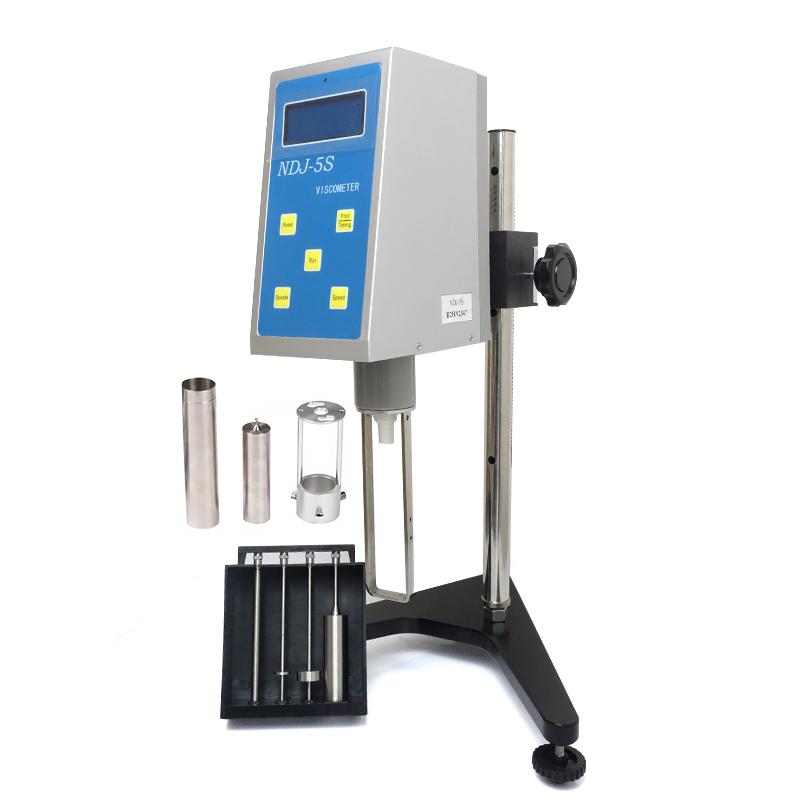

The NDJ-5S digital Rotational Viscometer is a liquid crystal display instrument that displays parameters such as viscosity, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed. Its range is 20~ 100,000 mPa · s, which can accurately measure ultra-low viscosity samples, and the sample volume is only 25~ 30mL.
Features
1. LCD display viscosity, Rotation speed, temperature, percentimeter torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed
2. Range 20~ 100,000 mPa · s
3. Accurate measurement of ultra-low viscosity samples
4. The sample size is only 25~ 30mL
5. Can measure lower viscosity, with different models of Viscometer use
6. Rotation speed Control mode
7. reproducibility +/- 0.5% F.S
8. Measurement accuracy +/- 1% F.S
Principle
The Viscometer uses the swirl/spin Measurement principle to measure the viscosity value by the resistance of the rotor when swirl/spin in the sample. Measurement parameters including viscosity, Rotation speed, percentile torque, etc. are displayed in real time on the LCD screen.
Applications
Viscosity measurement, fluid analysis, quality control, laboratory testing
