Overview

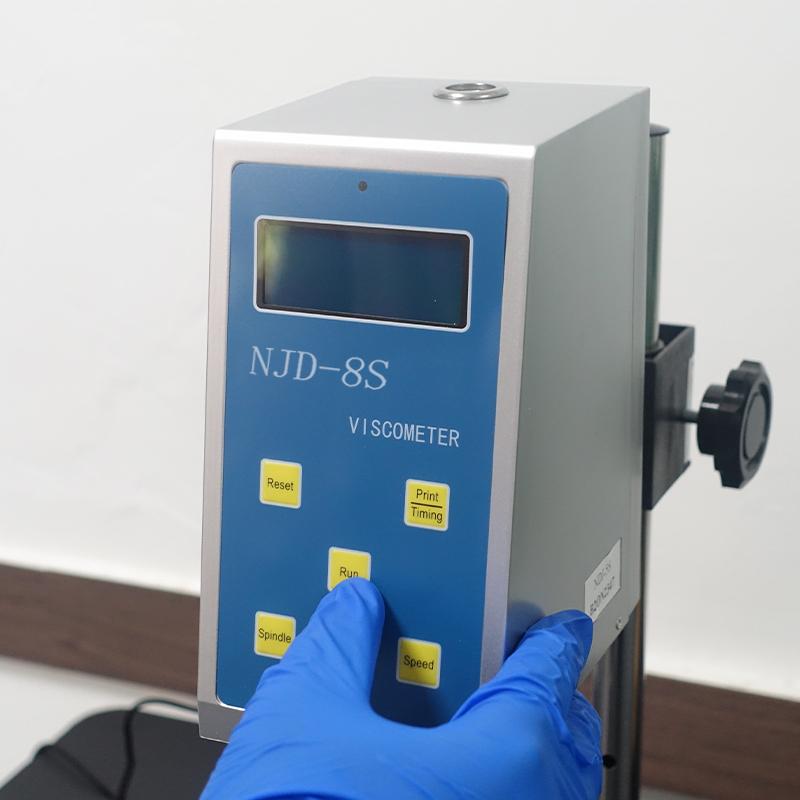

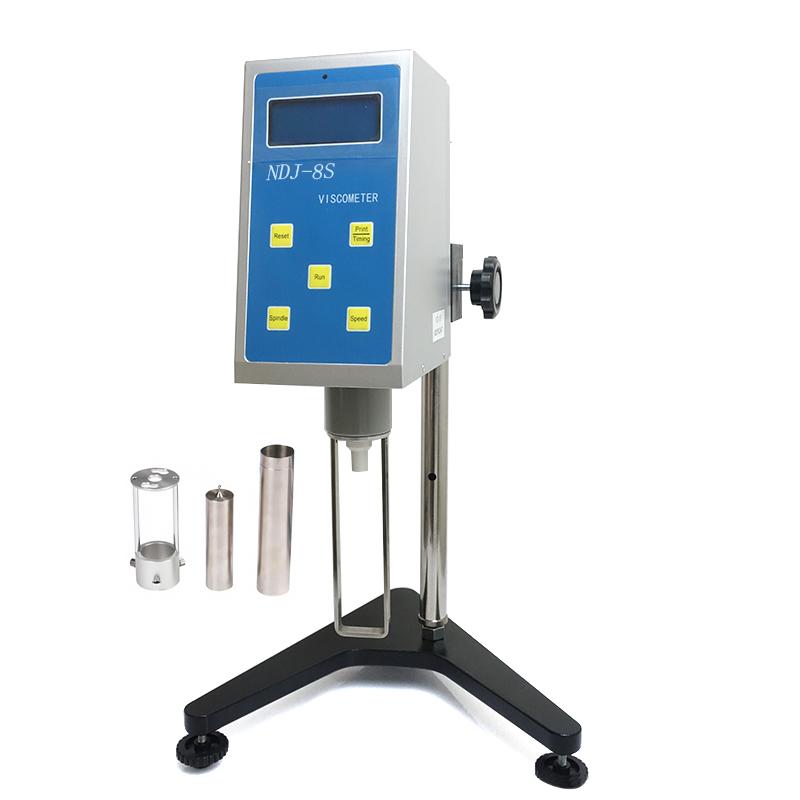

The NDJ-8S digital Rotational Viscometer is an instrument that displays viscosity, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed on the LCD screen. Its range is 20~ 2,000,000 mPa · s, which can accurately measure ultra-low viscosity samples, and the sample volume is only 25~ 30mL.
Features
1. LCD display viscosity, Rotation speed, temperature, percentimeter torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed
2. Range 20~ 2,000,000 mPa · s
3. Accurate measurement of ultra-low viscosity samples
4. The sample size is only 25~ 30mL
5. Can measure lower viscosity, with different models of Viscometer use
6. Rotation speed Control mode
7. reproducibility +/- 0.5% F.S
8. Measurement accuracy +/- 1% F.S
Principle
The Viscometer has a swirl/spin design, using different numbered rotors at eight-speed Rotation speeds, measuring fluid resistance and converting it to viscosity values, and displaying the relevant parameters in real time on the LCD screen.
Applications
Viscosity measurement, fluid analysis, laboratory testing
Steps
1. Connect the Dedicated Power Adapter

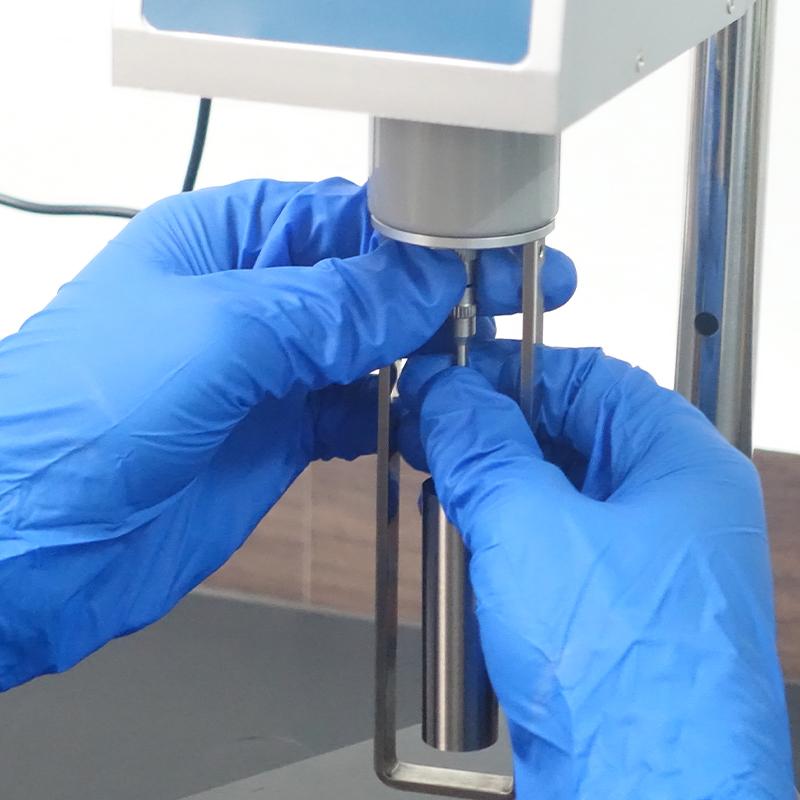

2. Select the appropriate rotor and install it
3. Rotation speed setting
4. Pour the sample into the container
5. Start measurement and read LCD display data
Notice
• Use dedicated Power Adapter, input voltage 100~ 240V 50~ 60Hz
• The sample volume is controlled within the range of 25~ 30mL
• Select the appropriate rotor and Rotation speed gear according to the measurement requirements
• Ensure that the instrument operates in a stable environment to ensure Measurement accuracy
