Overview

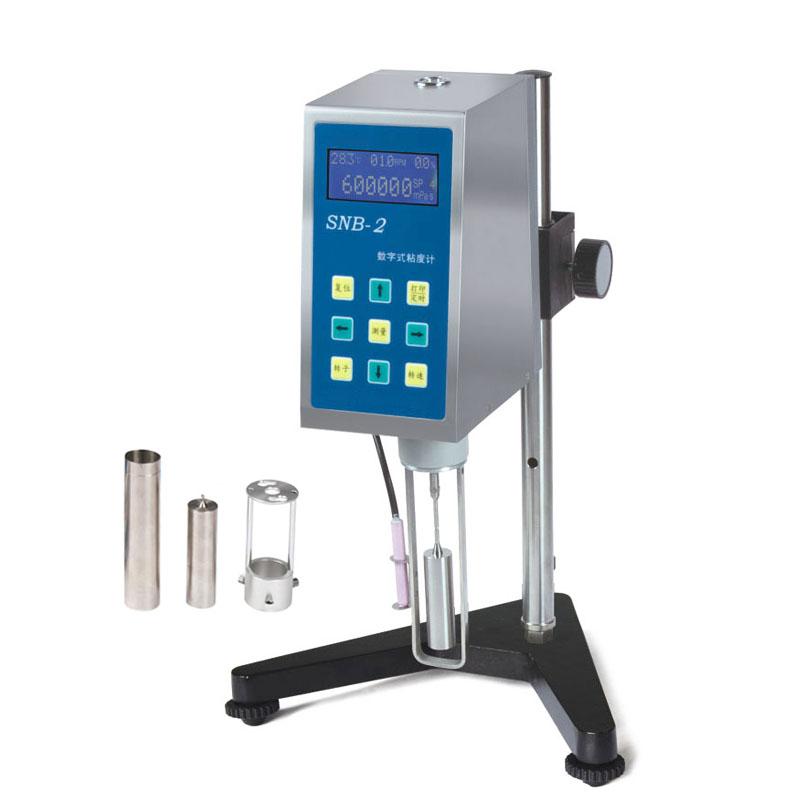

HuiNuo SNB-2 digital display Rotational Viscometer is a precision measuring instrument equipped with L0 rotor. The LCD screen can display parameters such as viscosity, Rotation speed, temperature, percentimeter torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed. The Viscometer Measurement range is wide, up to 0.6~ 6000000mPa · s, suitable for a variety of viscosity measurement scenarios.
Features
1. Accurate measurement of ultra-low viscosity samples
The sample size is only 25~ 30mL.
3. Can measure lower viscosity, with different models of Viscometer use
4. The LCD screen displays a variety of parameters, including viscosity, Rotation speed, temperature, percentile torque, etc
5. Continuously variable Rotation speed Control mode
6. reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S
Principle
The digital Rotational Viscometer indirectly calculates the viscosity value by measuring swirl/spin resistance of the rotor in the sample. The stepless variable speed control Rotor speed is adjustable from 0.1 to 99.9 rpm, and a wide range of viscosity measurement from 0.6 to 6000000mPa · s is achieved with different specifications of rotors (L0 #, L1 #, L2 #, L3 #, L4 #).
Applications
Chemical, petroleum, food, pharmaceutical, Coatings, scientific research laboratories and other fields of viscosity measurement
