Overview

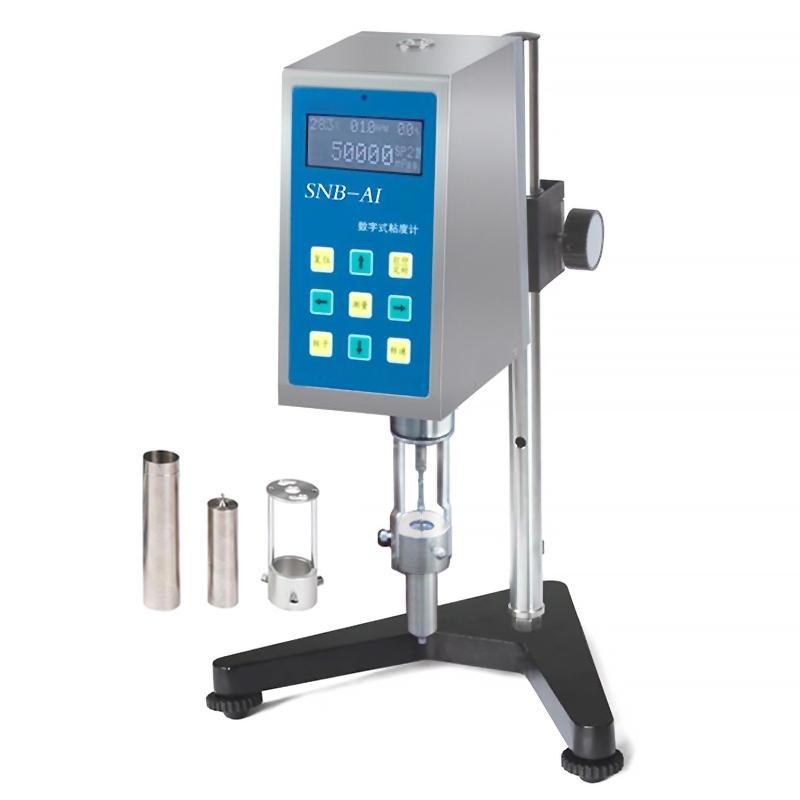

SNB-AI intelligent digital Viscometer is a gearless Rotational Viscometer with 16-bit microcomputer processor core control circuit, with intelligent automatic measurement and manual Measurement mode. Blue screen LCD digital display directly displays viscosity, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed. The sample size is only 10-20ml. Optional data collection and drawing software can be used for statistical analysis tasks such as data preservation and historical data comparison.
Features
1. Adopt 16-bit microcomputer processor core control circuit, no gear drive
2. Support intelligent automatic measurement and manual Measurement mode
3. Blue screen LCD digital display directly displays viscosity, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed
4. Small sample size, only 10-20ml
5. Optional data collection and mapping software for data collection, data preservation and historical data comparison and other mathematical statistical analysis
6. The circuit adopts chip technology, with a compact structure and reasonable layout
7. Measurement performance and functions are close to the professional level of foreign congeneric products
Principle
The instrument drives the stepper motor with high subdivision to drive the Sensor pointer, and drives the rotor swirl/spin through the hairspring and the rotating shaft. If the rotor is not subject to liquid resistance, the hairspring Sensor pointer is in the same position as the stepper motor Sensor pointer; if the rotor is subject to liquid viscous resistance, the torque generated by the hairspring equilibrates with the viscous resistance. The data is processed by the 16-bit microcomputer processor through the photoelectric Sensor Output signal, and the liquid viscosity value (mPa · s) is displayed on the LCD screen.
Applications
Oil, paints, food, paper, cosmetics, chemicals, coatings, capsules and other fluids viscosity measurement, coupled with special temperature control heating device can be used to measure asphalt apparent viscosity, hot melt glue, paraffin, high polymer and other fluid viscosity
