Overview

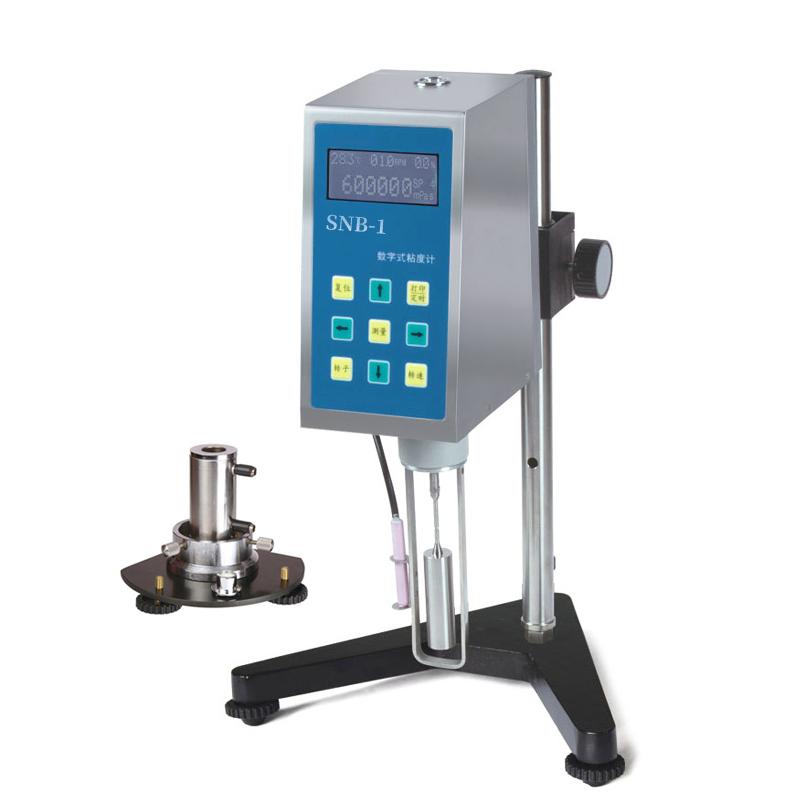

HuiNuo SNB-1 digital display Rotational Viscometer is a device that displays viscosity, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed on the LCD screen. The range is 20~ 600,000 mPa · sec. It is equipped with a small number of sample adapters, including rotors 21, 27, 28, and 29. The sample volume is only 10~ 20mL, which is suitable for valuable sample testing. It can be connected to the external circulation Thermostatic bath to control the temperature.
Features
1. LCD display viscosity, Rotation speed, temperature, percentimeter torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed
2. Wide range, covering 20 to 600,000 mPa · s
3. Supporting a small number of sample adapters, the sample volume is only 10~ 20mL, suitable for expensive sample testing
4. Can be connected to external circulation Thermostatic bath to control the temperature of the measured sample
5. Easy to disassemble and clean
6. Various rotor specifications, including L1, L2, L3, L4, 21 #, 27 #, 28 #, 29 #
7. reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S
8. Continuously variable Rotation speed control, Speed range 1~ 60rpm
Principle
The digital Rotational Viscometer swirl/spin in the sample through the rotor, measurement swirl/spin resistance and conversion to viscosity value, LCD real-time display viscosity, Rotation speed, temperature, percentile torque, rotor number and the selected rotor at the current Rotation speed measurable maximum viscosity value. A small number of sample adapters can reduce sample usage and support Thermostatic bath connection for temperature control.
Applications
Valuable sample testing, laboratory viscosity measurement
Standards
Reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S
Steps
1. Select the appropriate rotor and install it
2. Add 10~ 20mL of sample
3. Rotation speed and parameters
4. Start measurement and read LCD display data
5. Remove the rotor and clean it
Notice
• The sample volume is controlled within the range of 10~ 20mL
• Ensure that the Power Adapter input voltage is 100~ 240V, Frequency 50~ 60Hz
• Check whether the rotor is installed correctly before measurement
• Regularly clean the rotor and adapter to maintain accuracy
• Thermostatic bath connection to ensure stable temperature control
