Overview

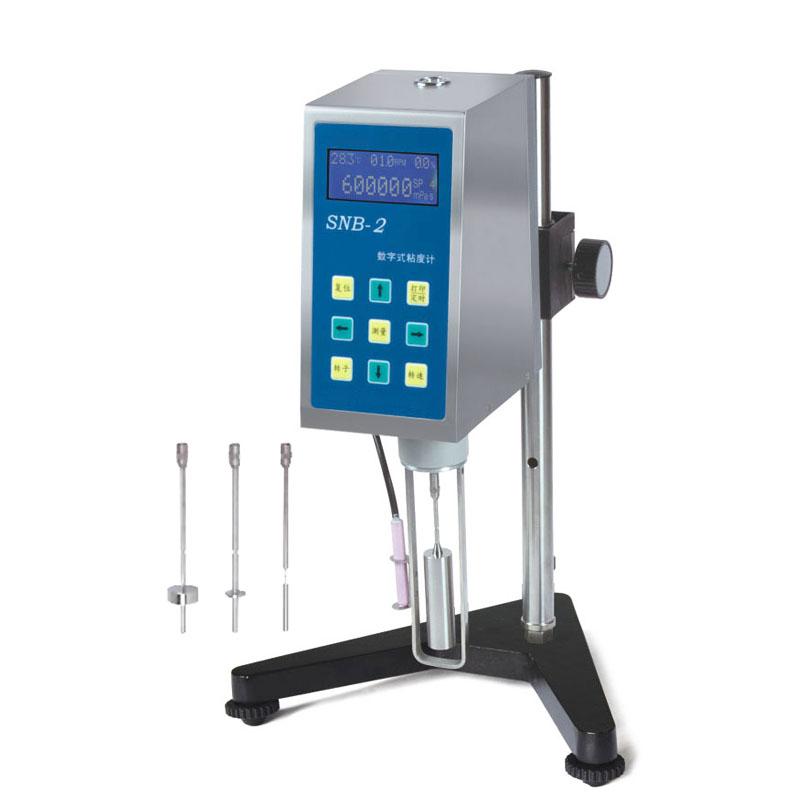

The HuiNuo SNB-2 + SSA digital Rotational Viscometer is a laboratory instrument with a LCD screen that displays viscosity, Rotation speed, temperature, percentimeter torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed. Its range is 12 to 6,000,000 mPa · s, and a small number of sample adapters are standard for small sample volume testing.
Features
1. The LCD screen displays a variety of parameters: viscosity, Rotation speed, temperature, percentile torque, rotor number and maximum measurable viscosity value
2. Wide viscosity range: 12~ 6,000,000 mPa · s
3. Standard with a small amount of sample adapter, the sample volume is only 10~ 20mL, suitable for expensive samples
4. Thermostatic bath can be connected to external circulation to control sample temperature
5. Easy to disassemble and clean
6. Continuously variable Rotation speed control, range 0.1~ 99.9rpm
7. High Accuracy measurement: reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S
Principle
The Viscometer uses the swirl/spin Measurement principle to measure the viscosity value by the resistance of the rotor when swirl/spin in the sample. The instrument controls the Rotor speed by stepless variable speed and displays related parameters such as viscosity and torque in real time.
Applications
Laboratory, research, quality control
