JINGTIAN NDJ-1S + printer digital display Digital Rotational Viscometer range 20~ 100000 mPa · s

Name: JINGTIAN NDJ-1S + printer digital display Digital Rotational Viscometer range 20~ 100000 mPa · s
Brand: JingTian
SKU: NB047607
Price: 507.0 USD
Availability: InStock

$ 507.00Ex works

Measurement accuracy of +/- 5% F. S, equipped with four standard rotors, support for multi-Rotation speed switching, LCD display full paraMeters, micro printer automatically records detection data.

Model

Get Quote

Category : Rotational Viscometer

Brand : JingTian

SKU : NB047607

Service :The delivery and service By NBCLab.Com

Overview

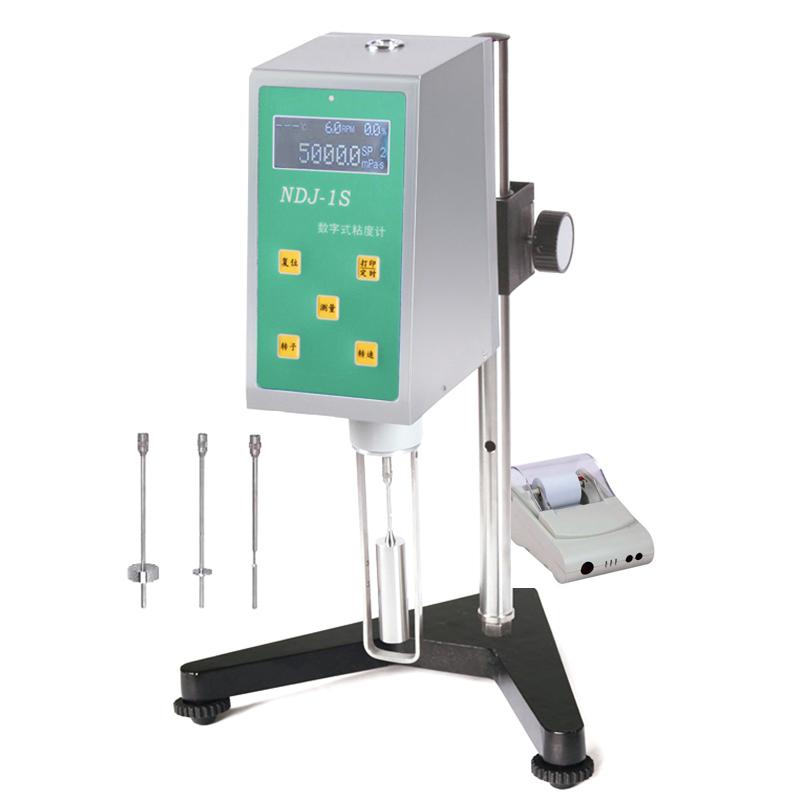

The HuiNuo NDJ-1S + printer is a digital display Rotational Viscometer equipped with a miniature monochrome needle printer for data collection. The product has a range of 20~ 100000 mPa · s and comes standard with four rotors L1 #, L2 #, L3 #, L4 #. Measurement accuracy is +/- 5% F.S. The LCD screen can display viscosity, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed.

Features

1. Digital Display mode, LCD screen can display viscosity, Rotation speed, temperature, percentile torque, rotor number and maximum viscosity value 2. Equipped with a micro monochrome needle printer for data collection 3. Printing content includes temperature, rotor, Rotation speed, viscosity value and percentile torque, etc 4. Standard L1 #, L2 #, L3 #, L4 #four rotors 5. Measurement accuracy of +/- 5% F.S for reproducibility 6. Rotor speed supports 6/12/30/60rpm multi-speed adjustment

Principle

The digital Rotational Viscometer uses the swirl/spin Measurement principle to measure the viscosity value by the resistance of the rotor when swirl/spin in the liquid, and outputs the measurement data through the digital display and printer.

Standards

F.S

Display mode
digital display
Viscosity Range
20~100000 mPa·s
Rotor specification
L1#、L2#、L3#、L4#
reproducibility
±1%
Measurement accuracy
±5%
Power supply Voltage
Dedicated Power Adapter (Input 100~ 240V 50~ 60Hz)
Rotor speed
6/12/30/60 rpm
Display information
The LCD screen can display viscosity, Rotation speed, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed
print content
Temperature, Rotor, Rotation speed, Viscosity and percentile torque
