Overview

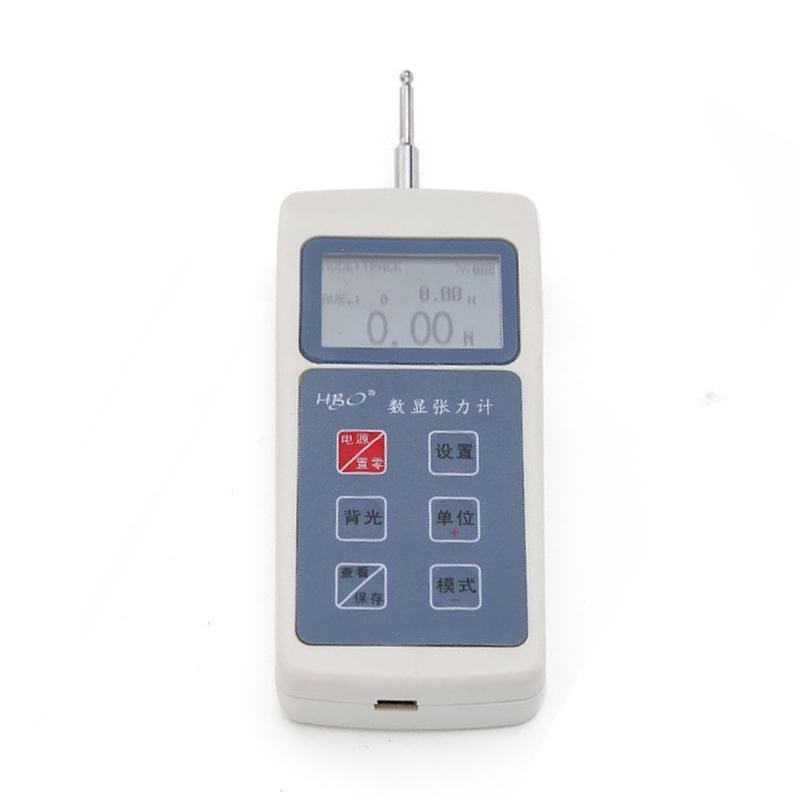

HZS-50 digital tension meter is a new generation of portable low-power tension test instrument launched by HBO. It has the characteristics of small size, light weight, easy to carry, multi-function and High Accuracy. It is suitable for relay contact pressure, electronic switch, micro automatic telephone equipment contact and armature pressure and other mechanical pressure, tape recorder buffer device pressure and other contact point pressure and tension test.
Features
1. Gravity acceleration value can be set
2. The upper and lower limit alarm values can be set, and the sound alarm
3. point array LCD, white backlight
4. Test value direction display
5. Operating interface Chinese and English display can be selected
6. Store 100 sets of test data and automatically calculate the average, MAX Maximum, MIN Minimum of the stored data
7. Peak hold; automatic peak release function (0-99 seconds)
8. Automatic shutdown without operation (time setting 0-99 minutes)
9. USB Communication: Computer Display Linear dispersion of force value, Display mode of force value table and process data
Principle
The HZS-50 digital tension meter adopts advanced Sensor technology and digital processing technology, converts mechanical pressure into electrical signal by measuring the force value applied to the test point, and visually displays the test results on the LCD screen after High Accuracy processing, and supports a variety of data processing and communication functions.
Applications
Relay contact pressure, electronic switch, micro automatic telephone equipment contact and armature pressure and other mechanical pressure, tape recorder buffer device pressure and other contact point pressure and tension test
Standards
Precision level 0.5
Steps
1. Power on and select Operating interface language
2. Set the gravitational acceleration value
3. Set the upper and lower limit alarm values
Step 4 Conduct a tension test
5. View test data (Peak, Average, MAX Maximum, MIN Minimum)
6. Connect the computer via USB for data communication and processing
7. Shut down after use or wait for automatic shutdown
Notice
• The working environment should be free of vibration and corrosion
• Operating temperature range is 0 ℃ -40 ℃
• Storage Temperature range -20 ℃ -70 ℃
• relative humidity range of 15% -80%
• Charge with designated charger: AC Input: 220V/50HZ, DC Output: 5V/1A
• Avoid use beyond the specified environment conditions
• Regularly check the battery power to ensure normal use
