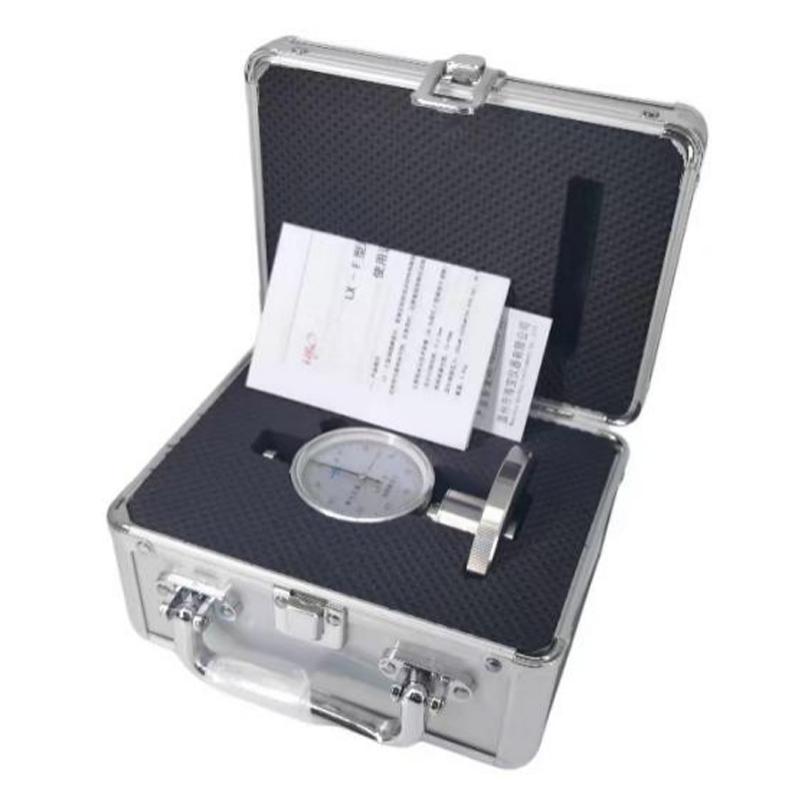

HBO LX-F sponge hardness Gauge foam hardness measuring instrument

Name: HBO LX-F sponge hardness Gauge foam hardness measuring instrument
Brand: HBO
SKU: NB047646
Price: 224.0 USD
Availability: InStock

$ 224.00Ex works

Using the principle of self-weight force measurement, the presser foot directly contacts the sample, Measurement range 10-90HF, resolution 1HF, Indication Error ≤ +/- 1HF, compact shape only 115 * 80 * 80mm.

Model

LX-F

Get Quote

Category : Shore Durometer

Brand : HBO

SKU : NB047646

Service :The delivery and service By NBCLab.Com

Overview

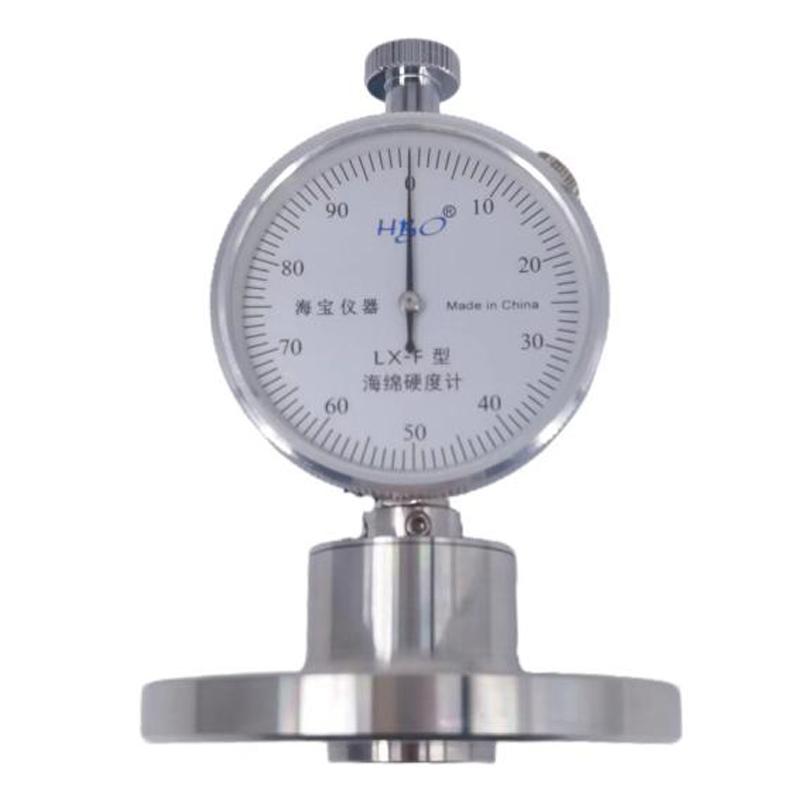

The LX-F sponge hardness gauge is an HBO brand product used to measure the Hardness of soft foam materials and polyurethane foam adhesives. The hardness gauge is used when the presser foot directly contacts the sample and uses its own weight as the force load, which is different from the Miscellaneous hardness gauge in terms of test use.

Features

1. Use its own weight as the force load 2. Presser foot in direct contact with the sample 3. Special for Soft Foam Materials and Polyurethane Foam Hardness Determination 4. Portable design, weight only 0.5kg 5. Compact shape, size 115 * 80 * 80mm

Principle

The LX-F sponge hardness gauge is directly contacted on the sample by the presser foot, using the instrument's own weight as the force measurement load, and the Hardness value of the foam material is determined by the measurement of the pressing depth. The dial shows the Hardness reading in the range of 0-100HF.

Applications

Soft foam, polyurethane foam

Steps

1. Place the hardness gauge on the surface of the specimen 2. Ensure that the presser foot is in direct contact with the sample 3. Use the instrument's own weight as the force load 4. Read the Hardness value displayed by the dial 5. Record measurement results

Notice

• Make sure the surface of the sample is flat before use • Keep the instrument vertically placed during measurement • Avoid use on materials beyond the 10-90HF Measurement range • Pay attention to keep the instrument clean to avoid dust affecting the Measurement accuracy Store properly after use to avoid collision damage

Dial value
0-100HF
Measurement Range
10-90HF
resolution
1HF
Indication Error
≤±1HF
Dimension
115*80*80mm
weight
0.5kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
