Overview

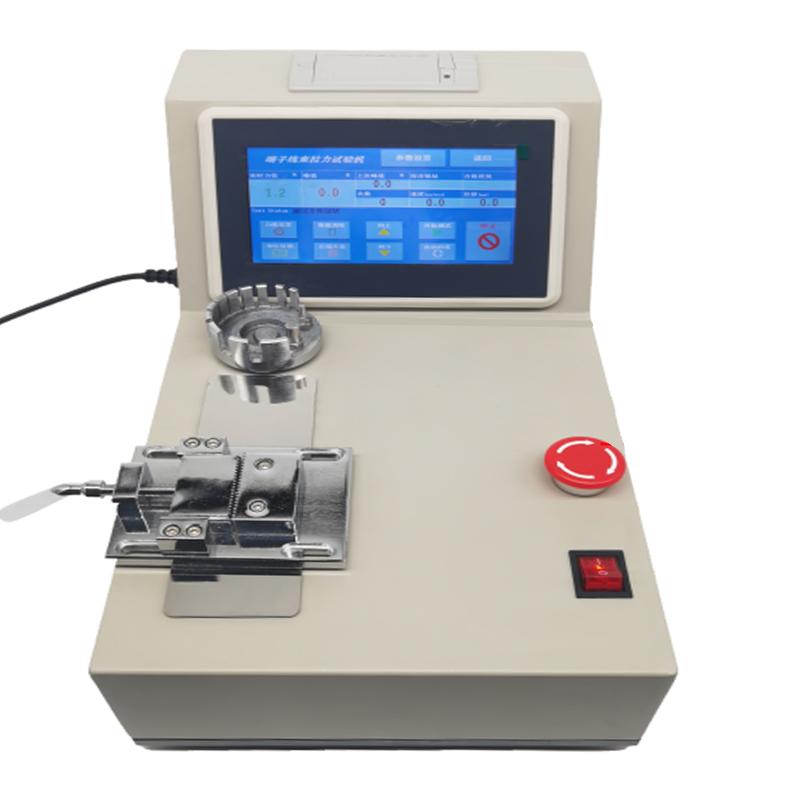

The DXL-500 Universal Testing Machine is a special testing machine designed by HBO for testing the pull-off force of wiring harnesses and terminals. The model is small in size, can be placed on the table for operation, uses precision automatic control and data collection system to achieve full digitalization control, and has functions such as speed and displacement control, automatic test, sample statistics, qualification judgment, delay setting and printing.
Features
1.7-Inch touch screen, friendly human-machine interaction interface, simple and easy to use operation, one-click start test.
2.6 units of force values N, kgf, lbf, gf, kN, tf.
3. 3 kinds of displacement units mm, cm, in.
4. The running speed can be set to adapt to various Test speed requirements.
5. The running distance can be set, and it can be delayed to maintain or return to the origin.
6. Force holding function: hold after reaching the set position or force value, and the time can be set freely.
7. Set the force value round-trip motion function, which can set the force value and hold time.
8. Pull off and stop function: return to the origin or stop after the loading force is unloaded.
9. Real-time display of force value, peak value, displacement, speed, qualified judgment and test times.
10. Test results qualified judgment, automatic statistics MAX Maximum, MIN Minimum, average, pass rate.
11.100 test Data storage, support different configuration parameters.
12. Comes with a micro printer to print test results.
13. Comes with overload protection, limit protection, emergency shutdown device and leakage protection device.
Principle
The testing machine adopts stepping motor loading mode, and realizes full digitalization operation through precision automatic control and data collection system. The equipment controls the running speed and displacement according to the preset parameters, collects force value and displacement data in real time, and makes qualified judgment and data statistics.
Steps
1. Place the testing machine on the table and connect it to the power supply.
2. Set the test parameters through Touchscreen, including force value unit, displacement unit, speed, distance, force holding time, etc.
3. Start the test with one click, and the device will run automatically.
4. Observe the display data in real time, and the device will automatically stop or return to its original point after the test is completed.
5. View and print test results, including peak, average, pass rate, and other statistical information.
Notice
• Power supply voltage is AC 220V 50/60HZ to avoid voltage mismatch.
• Check whether the overload protection and limit protection functions are normal before operation.
• When setting the parameters, the unit of attention, the unit of displacement and the speed range should be avoided.
• In case of emergency during the test, use the emergency shutdown device.
• Regularly check equipment connections and functions to ensure safe operation.
When storing test data, pay attention to group configuration to avoid data confusion.
