Overview

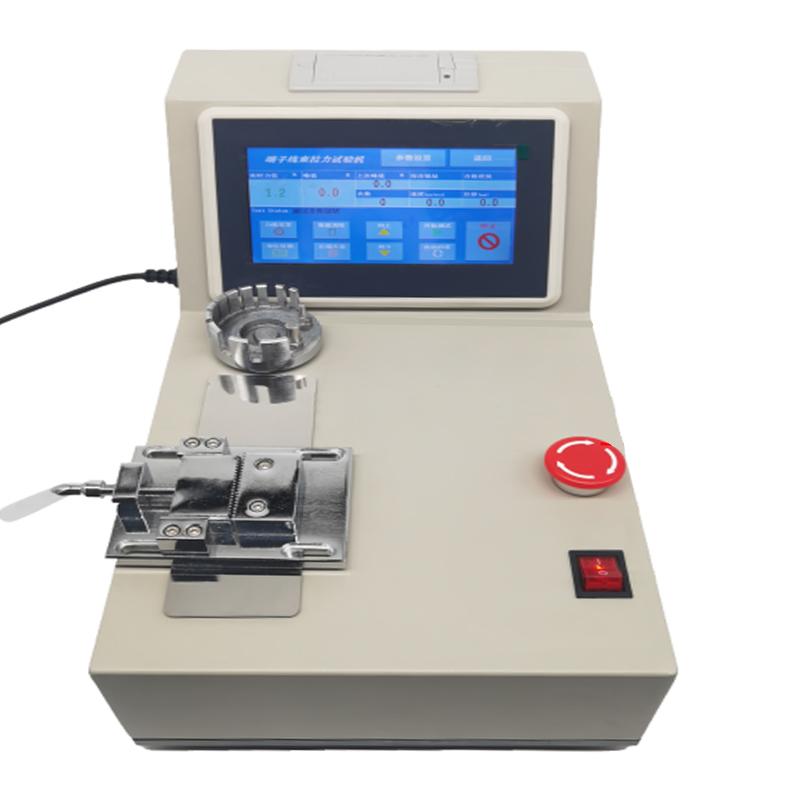

DXL-1000 Wire Harness Terminal Universal Testing Machine is a special testing machine launched by HBO for testing the pull-off force of wire harnesses and terminals. The model is small in size and easy to operate on the table. It adopts a precision automatic control and data collection system to realize the full digitalization data collection and control process. It has functions such as controllable speed displacement, automatic operation test, sample quantity statistics, qualified judgment, in-place delay and preset force delay, and test result printing.
Features
1.7-Inch touch display screen, friendly human-machine interaction interface, simple and easy to use operation, one-click start test
2.6 units of force value N, kgf, lbf, gf, kN, tf
3. 3 displacement units mm, cm, in
4. The running speed can be set, the setting is wide, and it can adapt to various Test speed requirements
5. The running distance can be set. After running to the set position, it can be delayed or returned to the origin immediately.
6. Force holding function: run to the specified position or reach the set force value, the equipment remains stationary, and the time can be set freely
7. Set force value round-trip function: set force value round-trip movement, force value setting, holding time
8. Pull off and stop function: After applying the loading force on the tested object, return to the origin or stop immediately
9. Real-time display of real-time force value, peak force value, last peak value, displacement, running speed, qualified judgment and test times
10. Test results qualified judgment, MAX Maximum, MIN Minimum, average, pass rate automatic statistics
11.100 Test Data storage
12. The device comes with a micro printer that can print test results
13. Comes with overload protection and limit protection, emergency shutdown device, leakage protection device
Principle
The testing machine adopts stepper motor loading mode, and realizes full digitalization control through precision automatic control and data collection system. The equipment can accurately test according to the set speed, displacement and force parameters, and automatically stop or return to the origin when the loading force applied to the tested object is unloaded, realizing the function of pulling off and stopping.
Steps
1. Place the test machine on the table and the operator sits on a chair
2. Set test parameters through a 7-inch touch display
3. Start testing with one click
4. Equipment automatically runs tests and displays real-time data
5. After the test is completed, the test results can be printed
