Overview

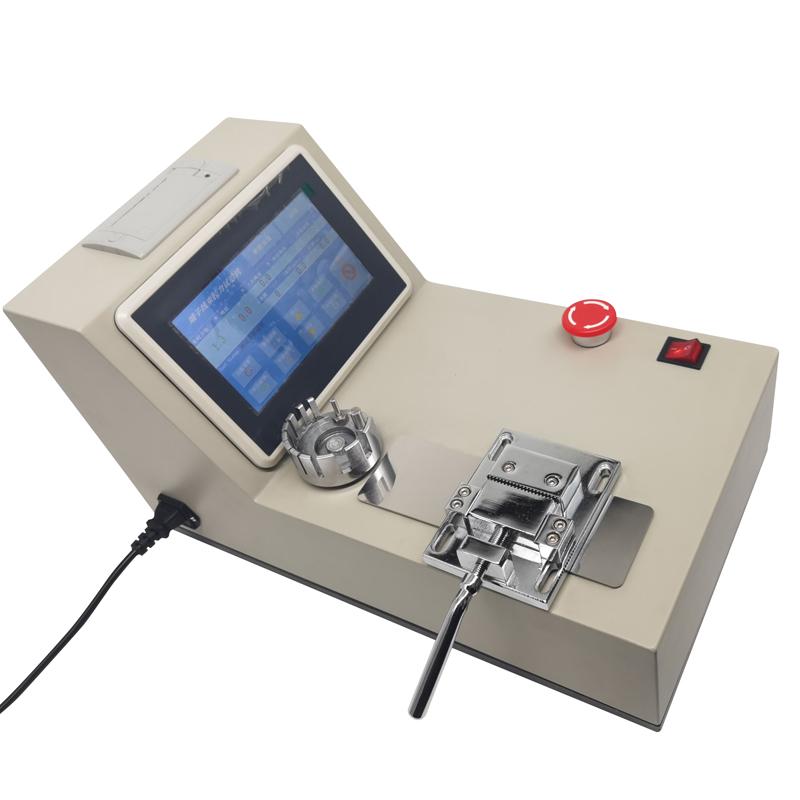

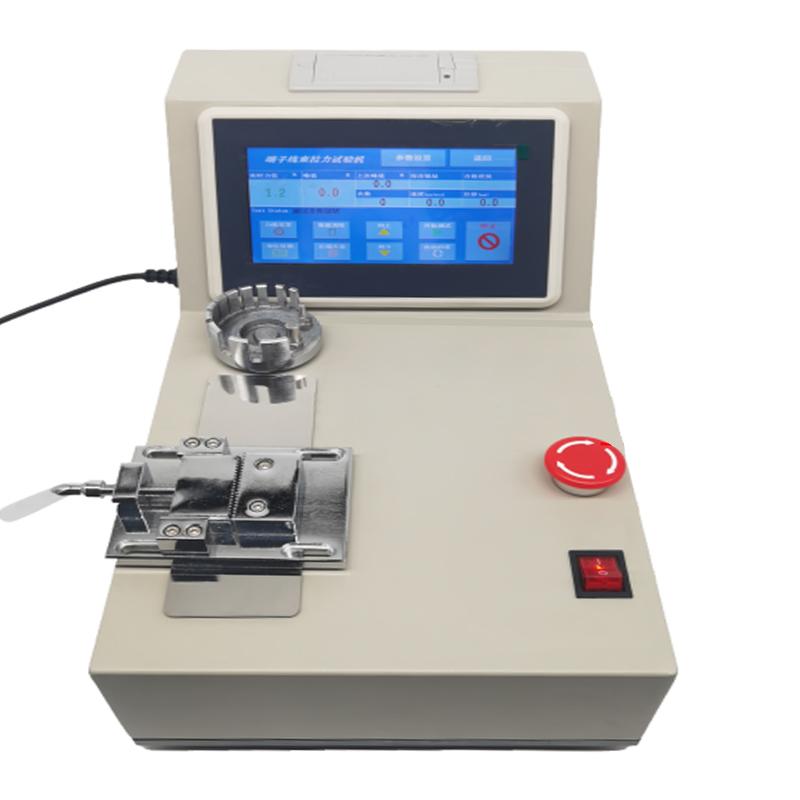

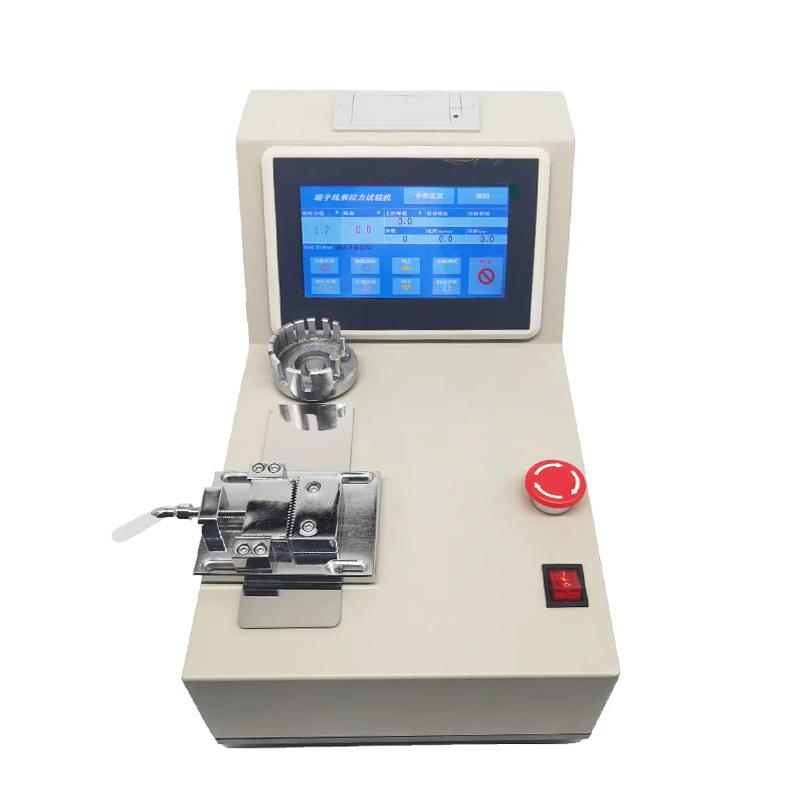

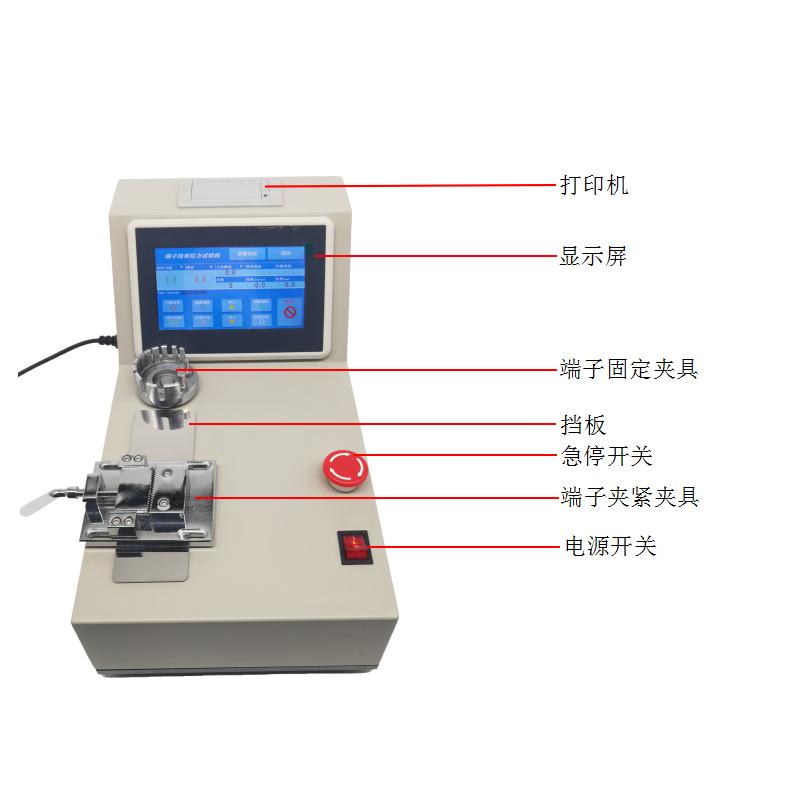

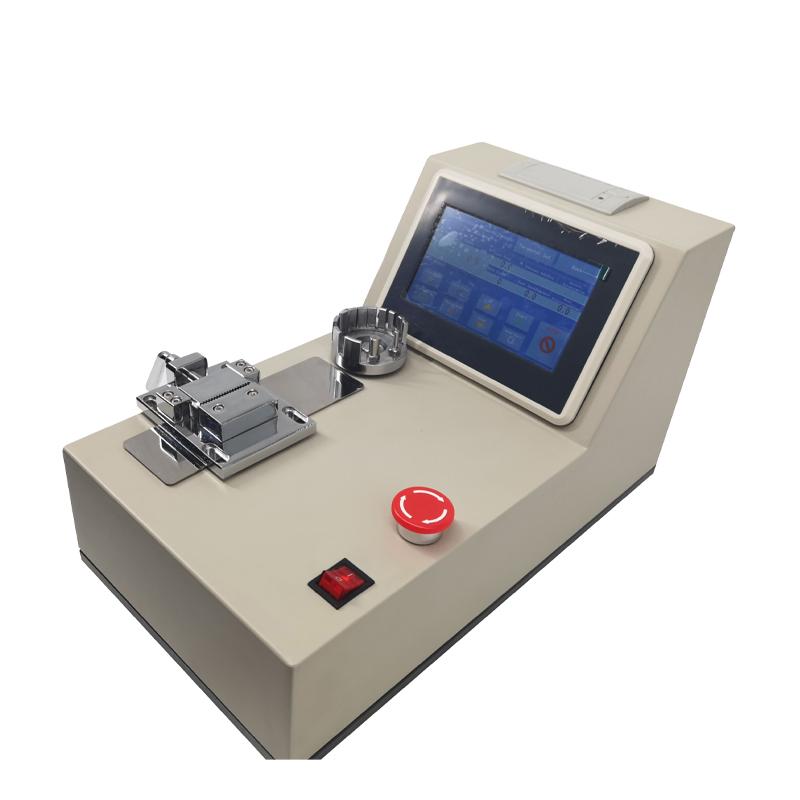

DXL-2000 Wire Harness Terminal Universal Testing Machine is a special test equipment launched by HBO, designed for wire harness and terminal pull-off force testing. The model is small in size, can be placed on the desktop operation, is equipped with precision automatic control and data collection system, realizes full digitalization control, and has various functions such as speed and displacement control, automatic test, sample statistics, qualification judgment, delay function and result printing.
Features

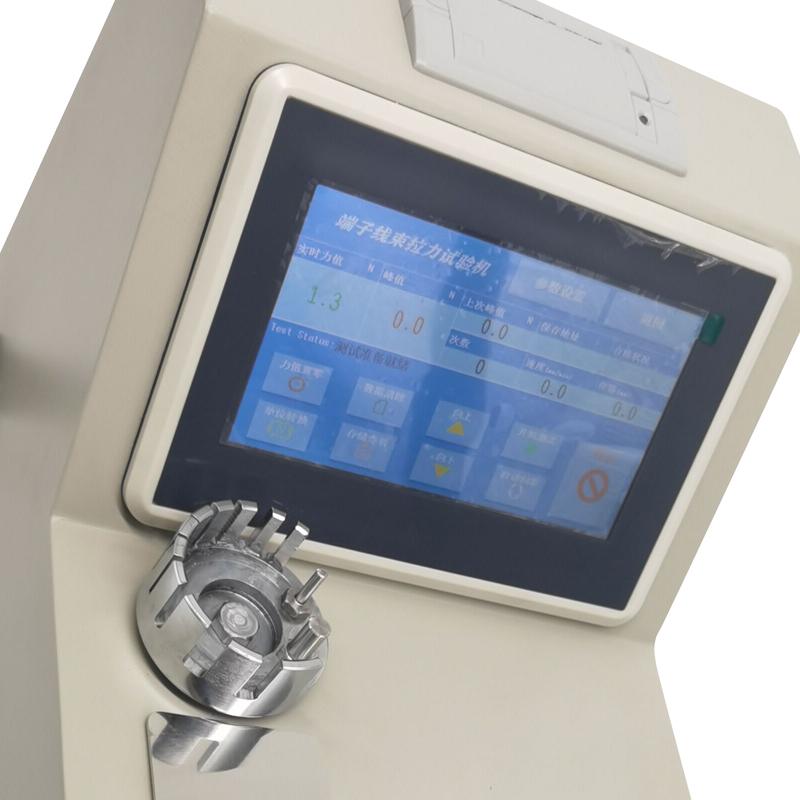

1.7-Inch touch display screen, friendly man-machine interface, simple operation, one-click start test
2. Support 6 force units: N, kgf, lbf, gf, kN, tf
3. Support 3 displacement units: mm, cm, in
4. The running speed can be set to adapt to different test requirements
5. The running distance can be set, supporting delay holding or immediate return to the origin
6. Force holding function, can set the holding time and force value
7. Set force value round-trip function
8. Pull off and stop function, automatically return or stop after unloading
9. Real-time display of force value, peak value, displacement, speed and other parameters
10. Automatic statistics MAX Maximum, MIN Minimum, Average and Pass Rate
11.100 Test Data storage
12. Built-in micro printer
13. Safety protection: overload protection, limit protection, emergency shutdown, leakage protection
Principle
The testing machine adopts stepping motor loading mode, and realizes precise control of force value and displacement through precise automatic Control system. During the test process, force value and displacement data are collected in real time. When the set force value or displacement is reached, the equipment can perform hold, return or stop operations according to preset parameters, and Data analysis and result judgment are carried out through the digitalization system.
Applications
Test of wire harness and terminal pull-off force
Standards
Accuracy class: 0.5, Force Indication Error ：≤ +/- 0.5%, Displacement Indication Error ：≤ +/- 0.1mm, Speed Indication Error ：≤ +/- 1%
Steps
1. Connect the 220V AC power supply
2. Set test parameters through 7-inch Touchscreen
3. Place the test sample
4. Start testing with one click
5. Equipment runs automatically and collects data
Step 6 View real-time display data
7. Automatically determine whether the test is qualified or not after completion
8. Optional printing of test results
Notice
• Power supply voltage AC 220V 50/60HZ before use
• Note that Device weight is about 23kg, and it needs to be stable when placed
• Confirm that the parameters are set correctly before testing
The equipment has multiple protection functions, but it is still necessary to pay attention to safety during operation
• Regularly check the operating status of the equipment
• Pay attention to group identification when storing test data
