Overview

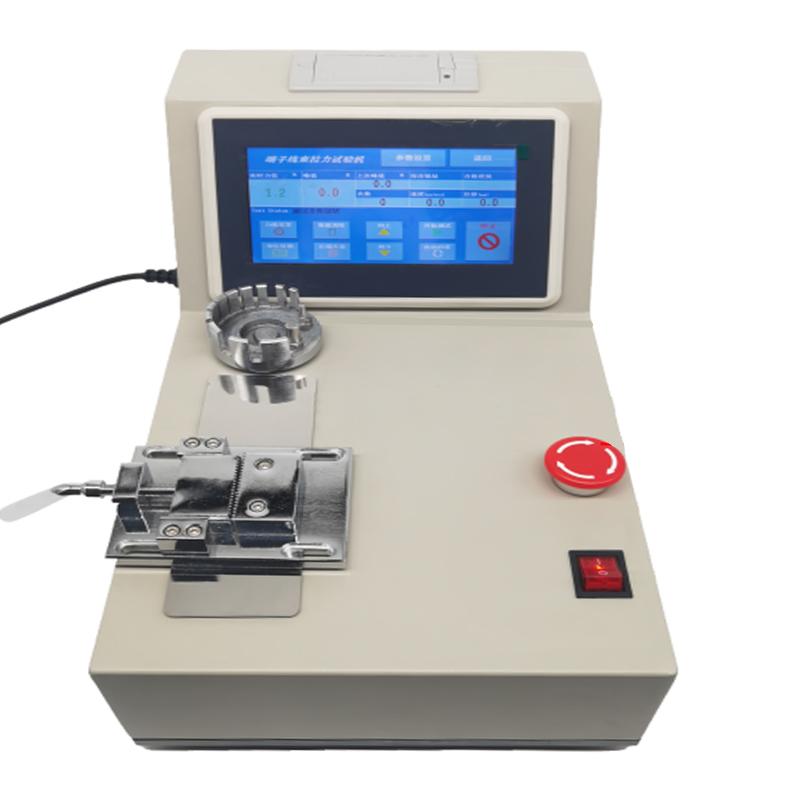

DXL-3000 Wire Harness Terminal Universal Testing Machine is a desktop test equipment designed by HBO for testing the pull-off force of wire harnesses and terminals. The machine adopts precision automatic control and data collection system to realize full digitalization control, and has the characteristics of controllable speed and displacement, automatic test, sample statistics, qualified judgment, delay function and test result printing.
Features
1.7-Inch touch display screen, friendly man-machine interface, simple and easy to use operation, one-click start test
2. Support 6 force units: N, kgf, lbf, gf, kN, tf
3. Support 3 displacement units: mm, cm, in
4. Running speed can be set to adapt to various Test speed requirements
5. The running distance can be set, which can be delayed or returned to the origin immediately
6. Force holding function: hold still after reaching the set position or force value, and the time can be set freely
7. Set the force value round-trip function: the force value round-trip motion parameters can be set
8. Pull off and stop function: automatically return to the origin or stop after the loading force is unloaded
9. Real-time display of force value, peak value, displacement, speed, qualified judgment and test times
10. Automatic statistics MAX Maximum, MIN Minimum, Average, Pass Rate
11. 100 test Data storage function
12. Built-in micro-printer to print test results
13. Equipped with overload protection, limit protection, emergency shutdown and leakage protection devices
Principle
The testing machine realizes full digitalization control through stepping motor loading mode, adopts precision automatic control and data collection system. The equipment can set the running speed and displacement, and when it runs to the set position or reaches the set force value, it can maintain the force value or delay the return, and has the function of pulling off and stopping, real-time collection and display of test data.
Steps
1. Place the test machine on the table and the operator sits on a chair
2. Set test parameters through 7-inch Touchscreen
3. Start testing with one click
4. Equipment runs automatically and collects data
Step 5 View real-time display data
6. Printable results after the test is completed
Notice
• The device comes with overload protection and limit protection functions
• Equipped with emergency shutdown device
• Equipped with leakage protection device
• Power supply voltage requirements: AC 220V 50/60HZ
• Device weight about 23Kg, need to be firmly placed
