Overview

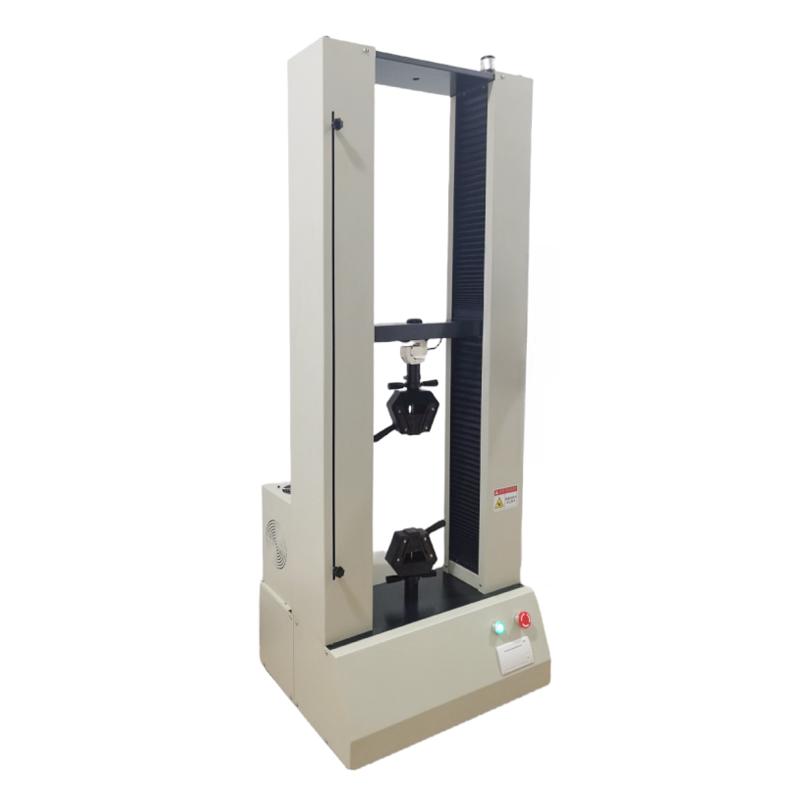

The LYD-5000 gantry microcomputer-controlled universal testing machine is a high-rigidity portal frame structure testing equipment produced by HBO. It uses high-strength light bars to fix the upper beam and countertop, and the stepping motor drives the transmission mechanism to drive the beam to move to achieve loading. It is mainly used for metal, Non-metallic and composite material mechanical performance testing. The precision automatic control and data collection system realizes full digitalization adjustment, which can detect the maximum bearing tensile pressure, tensile and compressive strength, elongation and compression deformation, elongation and other indicators. The test results are automatically calculated and displayed by Windows software.
Features
1. Four Rail Column, High Accuracy Double Ball Screw Pair Structure, Improve Measurement accuracy and Stability
2.6 units of force value N, kgf, lbf, gf, kN, tf and 3 units of displacement mm, cm, in
3. Graduation can be set freely, force value and displacement can be set up to 5 decimal places
4. Running speed can be set, starting speed, Test speed, reset speed can be set separately
5. The sample deformation and loading force can be set, and it can be delayed, automatically returned or stopped after reaching the preset force
6. Provide a variety of test modes including universal tensile test, universal compression test, general force holding test, three/four point bending test, disbonding performance test, tear performance test, waterproof coil test and electrical casing test
7. Force holding type test and pressure type test with PID speed force value double loop control
8. The test software is Chinese WINDOWS interface, menu prompts, mouse operation
9. Real-time display of displacement, deformation, running speed, real-time force value, peak force value and test time
10. The test results have a variety of coordinates Linear dispersion display: force value - time, force value - deformation, deformation - time
11. Automatic transmission function, Test speed can be automatically changed according to the preset program
12. Qualification judgment function, which can make qualification judgment according to the preset Standard value
13. Automatic storage function, test data and Linear dispersion are automatically stored to the computer, and the number of storage is unlimited
14. Test data can be queried and exported in word or excel format
15. Test reports can be prepared and printed according to user requirements
16. Comes with overload protection, limit protection, emergency shutdown device and leakage protection device
Principle
This product uses high-intensity light bars to fix the upper beam and work surface to form a high-rigidity portal frame structure, and drives the beam up and down through the stepper motor drive transmission mechanism to realize the test loading process. The precise automatic control and data collection system realizes the full digitalization adjustment of the data collection and control process. During the test, the force value, displacement and other parameters are collected in real time. After the test, the Windows host computer software automatically calculates and displays the results.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, paper and other manufacturing industries, product mass supervision departments at all levels, teaching demonstrations in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Set the test parameters conditions on the computer with the mouse
2. Select the appropriate test mode
3. Set parameters such as force value unit, displacement unit, Graduation, running speed, etc
4. Start the test and the device loads automatically
5. Real-time observation of test data and Linear dispersion dynamic display
6. After the test, the software automatically calculates the results
7. Query, export, or print test results
Notice
• Power supply voltage is 220V 50HZ before use
• Note the limit of effective Travel 1000mm and test width 350mm
• Test speed range controlled within 1-400mm/min
• Ensure that the specimen is firmly and reliably installed
• Pay attention to the observation force value during the test Indication Error and displacement accuracy
• Regularly check whether the protective device function is normal
• Device weight 177Kg, pay attention to safety when handling
