Overview

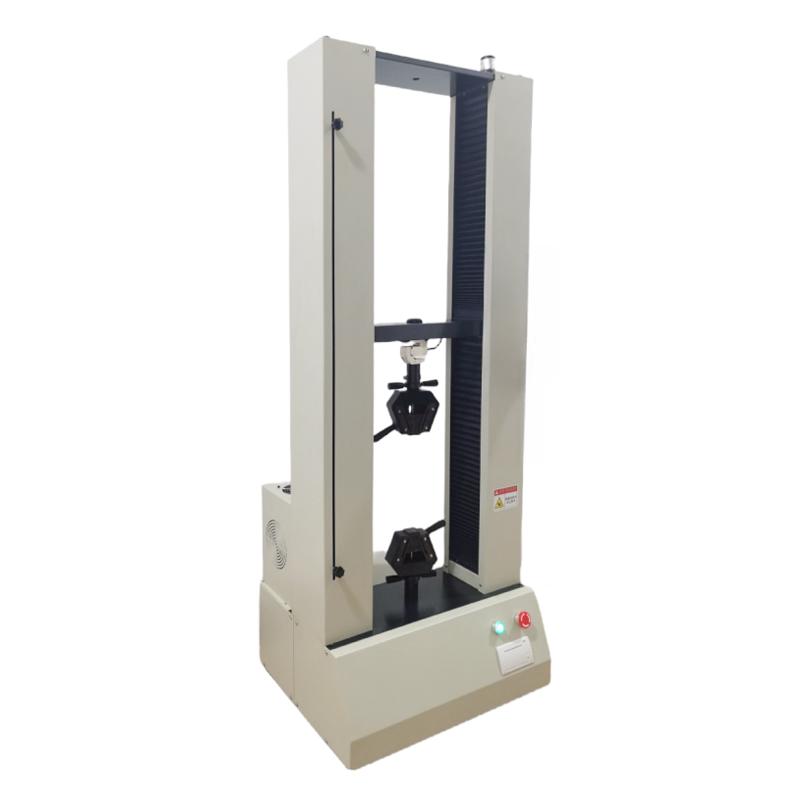

The LYD-1T gantry microcomputer-controlled universal testing machine is a high-rigidity portal frame structure testing equipment produced by HBO. It uses high-strength light bars to fix the upper beam and countertop, and the stepping motor drives the transmission mechanism to achieve test loading. The equipment is mainly used for metal, Non-metallic and composite mechanical properties testing. It realizes full digitalization adjustment through precise automatic control and data collection system. It can detect the maximum bearing tensile pressure, tensile and compressive strength, elongation compression deformation, elongation and other technical indicators. The test results are automatically calculated and displayed by the Windows host computer software.
Features
1. Four Rail Column, High Accuracy Double Ball Screw Pair Structure, Improve Measurement accuracy and Stability
2. Support 6 force units: N, kgf, lbf, gf, kN, tf
3. Support 3 displacement units: mm, cm, in
4. Graduation can be set freely, force value and displacement can be set up to 5 decimal places
5. Running speed can be set, starting speed, Test speed, reset speed can be set separately
6. Specimen deformation and loading force can be set to support delayed holding, automatic return or stop
7. Provide a variety of test modes including universal tensile test, universal compression test, general force holding test, three/four point bending test, disbonding performance test, tear performance test, waterproof coil test and electrical casing test
8. Force holding type test and pressure type test with PID speed force value double loop control
9. The test software is a Chinese WINDOWS interface, which supports menu prompts and mouse operations
10. Real-time display of displacement, deformation, running speed, real-time force value, peak force value and test time
11. The test results have a variety of coordinates Linear dispersion display: force value - time, force value - deformation, deformation - time
12. Support automatic transmission, qualified judgment, automatic storage, data query and export, and report printing
13. Comes with overload protection, limit protection, emergency shutdown device and leakage protection device
Principle
This product uses high-intensity light bars to fix the upper beam and countertop to form a high-rigidity portal frame structure. Driven by a stepper motor, the stepper motor drives the beam up and down through the transmission mechanism to realize the test loading process. The precision automatic control and data collection system realizes the full digitalization adjustment of the data collection and control process. After the test, the Windows host computer software automatically calculates and displays the test results and Linear dispersion according to the set test parameters.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, paper and other manufacturing industries, product mass supervision departments at all levels, teaching demonstrations in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Set the test parameters conditions on the computer with the mouse
2. Select the appropriate test mode
3. Start the test, and the device automatically completes the loading process
4. Real-time observation of test data and Linear dispersion dynamic display
5. After the test, the software automatically calculates the results
6. Query, display, and print test results
Notice
Safety protection functions of the equipment include overload protection, limit protection and emergency shutdown device
• Power supply voltage AC 220V 50HZ before use
• Pay attention to observe the real-time displayed force value, displacement and other parameters during the test
• Test data can be automatically stored in a computer, with unlimited storage
• Standard value can be judged according to the qualified range
