Overview

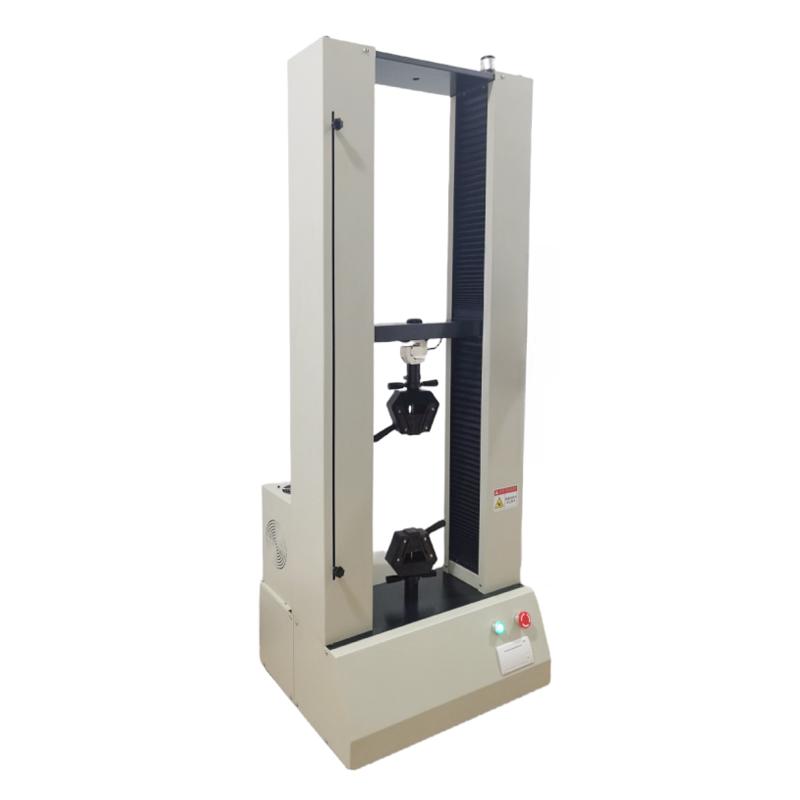

The LYD-2T gantry microcomputer-controlled universal testing machine is a high-performance testing equipment under HBO. It uses high-strength light bars to fix the upper beam and the work surface to form a high-rigidity portal frame structure. It is driven by a stepping motor and driven by a transmission mechanism to move the beam to achieve loading. Mainly used for metal, Non-metallic and composite material mechanical performance testing, it has a precise automatic control and data collection system, which can automatically calculate and display the maximum bearing tensile pressure, tensile and compressive strength, elongation compression deformation, elongation and other parameters. All operations are completed by computer mouse.
Features
1. Four Rail Column and High Accuracy Double Ball Screw Pair Structure, Improve Measurement accuracy and Stability
2. Support 6 force value units (N, kgf, lbf, gf, kN, tf) and 3 displacement units (mm, cm, in)
3. Graduation can be set freely, force value and displacement can be set up to 5 decimal places
4. The running speed can be set, and the starting speed, Test speed and reset speed can be adjusted separately
5. Specimen deformation and loading force are controllable, supporting delay holding, automatic return or stop
6. Provide a variety of test modes, including universal tensile, compression, force holding, bending, disbonding, tearing, waterproofing membrane and electrical casing testing
7. Test software for Chinese Windows interface, support mouse operation, real-time display data and Linear dispersion
8. Automatic transmission, qualified judgment, automatic data storage and export, support custom report format
9. Built-in overload protection, limit protection, emergency shutdown and leakage protection devices
Principle
This product is driven by a stepper motor, which drives the beam up and down through the transmission mechanism to realize the test loading process. The precision automatic control and data collection system realizes full digitalization adjustment, and real-time collection of displacement, deformation, speed, force value and other data during the test process. After the test, the Windows host computer software automatically calculates and displays the results and Linear dispersion.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, Paper, Manufacturing, Product mass supervision department, Teaching demonstration in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Start the test software through the computer mouse and set the test parameters
2. Select the test mode (e.g. tensile, compression, etc.) and configure the force value and displacement unit
3. Set conditions such as running speed, deformation and loading force
4. Start the test, the system automatically collects data and displays Linear dispersion in real time
5. After the test, the software automatically calculates the results and displays them
6. Query, export, or print test data and reports
Notice
• Power supply voltage 220V 50HZ
• Check that the overload protection and limit protection functions are normal before operation
• Pay attention to Graduation and unit selection when setting parameters
• To avoid emergencies during the test, an emergency shutdown device can be used
• Maintain transmission and electrical systems regularly to ensure accuracy
• Confirm file format compatibility when exporting data
