Overview

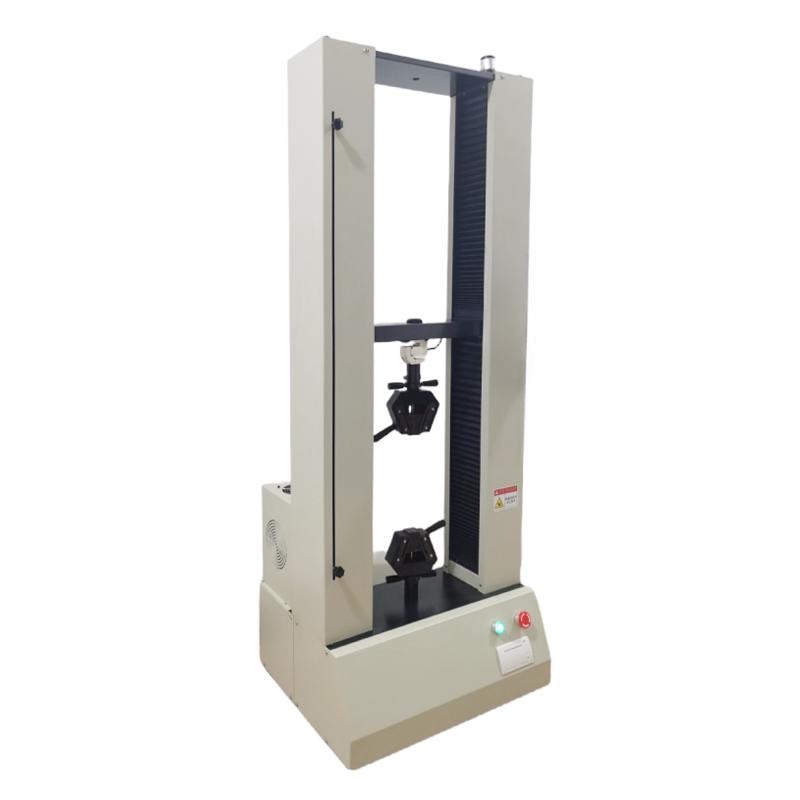

LYD-3T gantry microcomputer-controlled universal testing machine is HBO brand of high-rigidity portal frame structure test equipment. It uses high-intensity light bars to fix the upper beam and countertop, and the stepping motor drives the transmission mechanism to realize the test loading process of the beam moving up and down. It is mainly used for metal, Non-metallic and composite mechanical properties testing. It realizes full digitalization adjustment through precise automatic control and data collection system. It can detect the maximum bearing tensile pressure, tensile and compressive strength, elongation compression deformation, elongation and other indicators. After the test, the Windows software automatically calculates and displays the results with Linear dispersion. It supports data query and printing. All operations are completed on the computer through the mouse.
Features
1. Four Rail Column, High Accuracy Double Ball Screw Pair Structure, Improve Measurement accuracy and Stability
2. Support 6 force value units (N, kgf, lbf, gf, kN, tf) and 3 displacement units (mm, cm, in)
3. Graduation can be set freely, force value and displacement can be set up to 5 decimal places
4. The running speed can be set, and the starting speed, Test speed and reset speed can be set separately to improve the test efficiency and accuracy
5. The sample deformation and loading force can be set to support delayed holding, automatic return or immediate stop after reaching the preset force
6. Provide a variety of test modes, including universal tensile, compression, force holding, three/four point bending, disbonding, tearing, waterproof membrane and electrical casing test
7. Force holding and pressure type test with PID speed force value double loop control
8. Chinese WINDOWS software interface, real-time display of displacement, deformation, speed, force value, peak value and time data
9. Support multiple coordinate Linear dispersion display and automatic transmission function
10. With qualified judgment, automatic storage, data export and report printing functions
11. Comes with overload protection, limit protection, emergency shutdown and leakage protection devices
Principle
This product uses high-intensity light bars to fix the upper beam and countertop to form a high-rigidity portal frame structure. Stepping motor drives the beam up and down through the transmission mechanism to realize the test loading process. The precision automatic control and data collection system realizes the full digitalization adjustment of the data collection and control process, and detects the mechanical properties of the material during the test. After the test, the Windows host computer software automatically calculates and displays the results.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, paper and other manufacturing industries, product mass supervision departments at all levels, teaching demonstrations in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Set the test parameters conditions on the computer with the mouse
2. Start the test, and the equipment automatically performs the loading process
3. Real-time observation of displacement, deformation, speed, force value and other data dynamic display
4. After the test, the software automatically calculates and displays the results and Linear dispersion
5. Query, export, or print test data and reports
Notice
• Power supply voltage 220V 50HZ
• Check whether the overload protection and limit protection functions are normal before operation
• Pay attention to the use of emergency shutdown devices and leakage protection devices
• Select the appropriate test mode and parameter settings according to the sample type
• Regularly calibrate equipment to ensure Measurement accuracy
