Overview

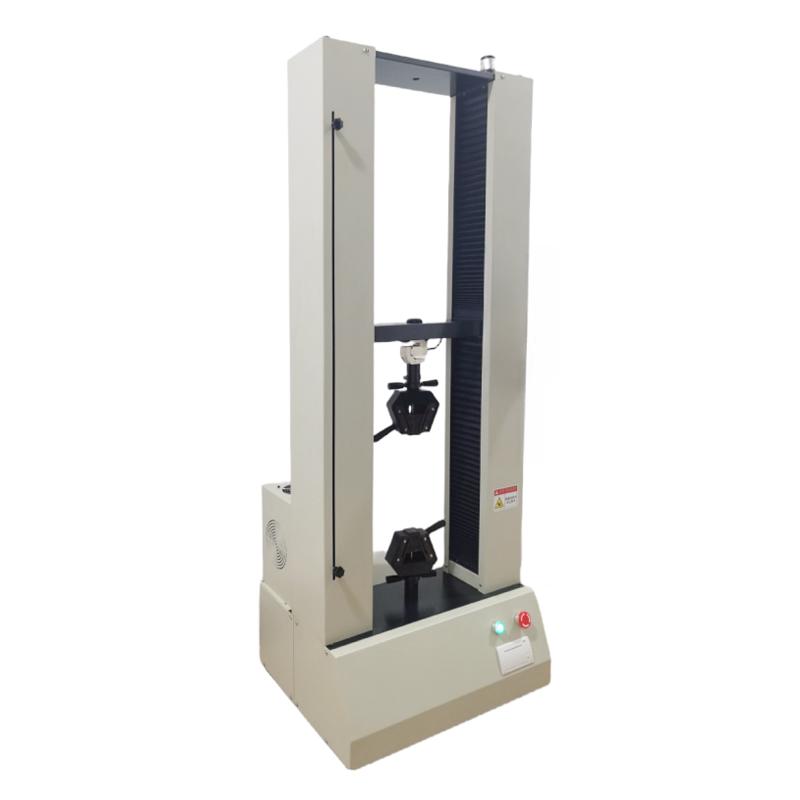

HBO LYD-5T gantry-type microcomputer-controlled universal testing machine is a microcomputer-controlled model that uses high-intensity light bars to fix the upper beam and countertop to form a high-rigidity gantry frame structure. The equipment drives the beam up and down through a stepper motor drive drive drive mechanism to achieve test loading. It is mainly used for metal, Non-metallic and composite material mechanical performance index testing. It has a precise automatic control and data collection system to realize full digitalization adjustment, and can automatically calculate and display test results and Linear dispersion.
Features
1. Four Rail Column, High Accuracy Double Ball Screw Pair Structure, Improve Measurement accuracy and Stability
2. Support 6 force value units (N, kgf, lbf, gf, kN, tf) and 3 displacement units (mm, cm, in)
3. Graduation can be set freely: force value and displacement Graduation can be set up to 5 decimal places
4. Running speed can be set (speed controllable), starting speed, Test speed, reset speed can be set separately
5. Specimen deformation and loading force can be set (displacement and force value controllable), support delay holding, automatic return or stop
6. Provide a variety of test modes including universal tensile test, universal compression test, general force holding test, three/four point bending test, disbonding performance test, tear performance test, waterproof coil test and electrical casing test
7. Force holding type test and pressure type test with PID speed force value double loop control
8. The test software is a Chinese WINDOWS interface, which supports menu prompts and mouse operations
9. Real-time display of displacement, deformation, running speed, real-time force value, peak force value and test time
10. The test results have a variety of coordinates Linear dispersion display: force value - time, force value - deformation, deformation - time
11. Support automatic transmission, qualification judgment, automatic storage, data query and export, and test report preparation
12. Comes with overload protection, limit protection, emergency shutdown device and leakage protection device
Principle
This product is driven by a stepper motor, which drives the beam up and down through the transmission mechanism to realize the test loading process. The precision automatic control and data collection system realizes the full digitalization adjustment of the data collection and control process. After the test, the Windows host computer software automatically calculates the detection parameters according to the set test parameters conditions, and displays the corresponding test results and test Linear dispersion.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, paper and other manufacturing industries as well as product mass supervision departments at all levels, teaching demonstrations in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Set the test parameters conditions on the computer with the mouse
2. Start the test loading process
3. Real-time observation of displacement, deformation, running speed, real-time force value and other data
4. After the test, the software automatically calculates and displays the test results and Linear dispersion
5. Query, export test data or print test reports
Notice
• Safety protection functions of the device include overload protection, limit protection and leakage protection
• Before the test, set the force value unit, displacement unit and Graduation correctly
• Select the appropriate test mode and speed settings according to the test requirements
• Power supply voltage 220V 50HZ
• Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
