Overview

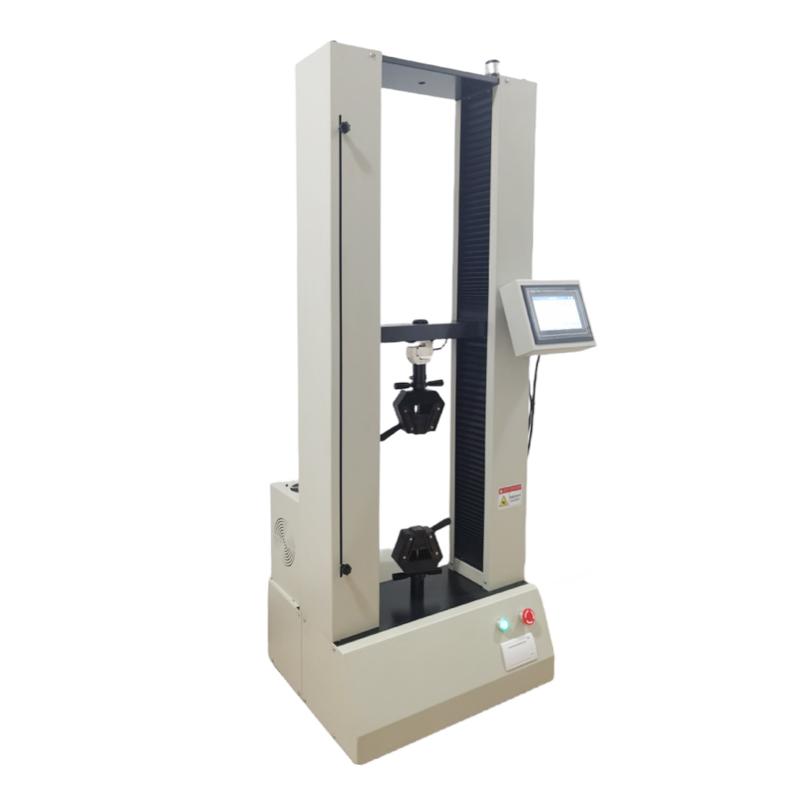

LY-1T electronic universal testing machine is an economical and practical model developed by HBO. It uses high-strength light bars to fix the upper beam and countertop to form a high-rigidity portal frame structure, and is driven by a stepper motor to realize the test loading process. It is mainly used for mechanical properties testing of various metals, Non-metallic and composites. The precision automatic control and data collection system realizes full digitalization adjustment, which can automatically calculate and display the test results and Linear dispersion.
Features
1.7-Inch touch display screen, friendly human-machine interaction interface, simple and easy to use operation, one-click start test
2.6 units of force value N, kgf, lbf, gf, kN, tf
3. 3 displacement units mm, cm, in
4. Graduation can be set freely: force value Graduation can be set up to 5 decimal places; displacement Graduation can be set up to 5 decimal places
5. Running speed can be set, starting speed, Test speed, reset speed can be set separately
6. Specimen deformation can be set
7. The loading force can be set, and it can be delayed, automatically returned to the initial position or stopped immediately after reaching the preset force
8. Real-time display of displacement, deformation, running speed, real-time force value, peak force value and test time
9. Provide a variety of test modes including universal tensile test, universal compression test, general force holding test, three/four point bending test, disbonding performance test, tear performance test, waterproof coil test and electrical casing test
10. Force holding type test and pressure type test with PID speed force value double loop control
11. Can test 10 samples, automatically calculate the average value, MAX Maximum, MIN Minimum and other test results
12. The test results are displayed in a variety of coordinates: force value - time, force value - deformation, deformation - time
13. After the test is completed, the data bar can be automatically saved, up to 10,000 pieces of data can be saved
14. The machine comes with a micro printer that can print test results
15. Comes with overload protection, limit protection, emergency shutdown device, leakage protection device
Principle
The high-intensity light bar is used to fix the upper beam and the work surface to form a high-rigidity portal frame structure. The stepping motor drives the beam up and down through the transmission mechanism to realize the experimental loading process. The precision automatic control and data collection system realizes the full digitalization adjustment of the data collection and control process.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, paper and other manufacturing industries as well as product mass supervision departments at all levels, teaching demonstrations in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Set the test parameters
2. Start testing with one click
3. Equipment automatically performs test loading
4. After the test, the microcomputer controller automatically calculates the detection parameters
5. Show the corresponding test results and Linear dispersion
6. Query display and print test results
Notice
• Power supply voltage 220V 50HZ
• Note that the device comes with overload protection and limit protection functions
• Use emergency shutdown devices to ensure safety
• Pay attention to the normal operation of the leakage protection device
• Set the force value unit and displacement unit correctly before the test
• Rational setting of running speed to improve test efficiency and accuracy
• Save the data in time after the test is completed
