Overview

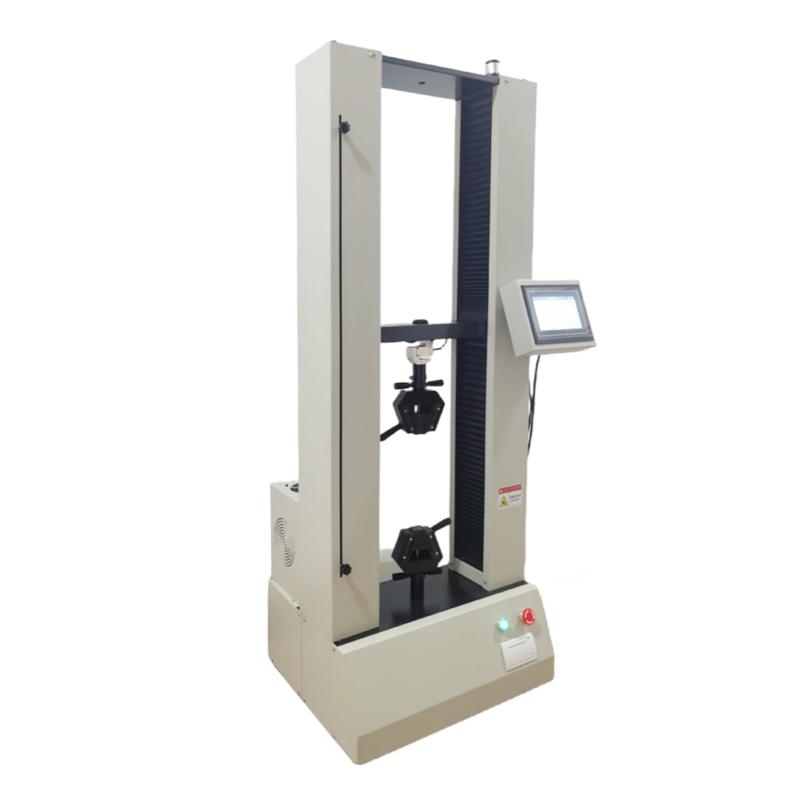

LY-2T electronic universal testing machine is an economical and practical model developed by HBO. It uses high-strength light bars to fix the upper beam and countertop to form a high-rigidity portal frame structure, and is driven by a stepper motor to realize the test loading process. It is mainly used for mechanical properties testing of various metals, Non-metallic and composites. The precise automatic control and data collection system realizes full digitalization adjustment, which can detect the maximum bearing tensile pressure, tensile and compressive strength, elongation compression deformation, elongation and other technical indicators. After the test, the results are automatically calculated and displayed with Linear dispersion.
Features
1.7-Inch touch display screen, friendly human-machine interaction interface, simple and easy to use operation, one-click start test
2.6 units of force value N, kgf, lbf, gf, kN, tf
3. 3 displacement units mm, cm, in
4. Graduation can be set freely: force value Graduation can be set up to 5 decimal places; displacement Graduation can be set up to 5 decimal places
5. The running speed can be set, the starting speed, Test speed and reset speed can be set separately to improve the test efficiency and accuracy
6. Specimen deformation can be set
7. The loading force can be set, and it can be delayed, automatically returned to the initial position or stopped immediately after reaching the preset force
8. Real-time display of displacement, deformation, running speed, real-time force value, peak force value and test time
9. Provide general tensile test, general compression test, general force holding test, three/four point bending test, disbonding performance test, tear performance test, waterproof membrane test and electrical casing test and other test modes
10. Force holding type test and pressure type test with PID speed force value double loop control
11. Can test 10 samples, automatically calculate the average, MAX Maximum, MIN Minimum and other results
12. The test results are displayed in a variety of coordinates: force value - time, force value - deformation, deformation - time
13. After the test is completed, the data bar can be automatically saved, up to 10,000 pieces of data can be saved
14. The machine comes with a micro printer that can print test results
15. Comes with overload protection, limit protection, emergency shutdown device, leakage protection device
Principle
This product uses high-intensity light bars to fix the upper beam and countertop to form a high-rigidity portal frame structure. Driven by a stepper motor, the stepper motor drives the beam up and down through the transmission mechanism to realize the test loading process. The precision automatic control and data collection system realizes the full digitalization adjustment of the data collection and control process.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, paper and other manufacturing industries, product mass supervision departments at all levels, teaching demonstrations in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Set the test parameters
2. Start testing with one click
3. Automatically collect data and calculate
4. Display test results and Linear dispersion
5. Query and print the test results
Notice
• Check overload protection and limit protection functions before use
• Power supply voltage 220V 50HZ
• Pay attention to the use of emergency shutdown devices
• Regularly check the leakage protection device
• Set the force value and displacement unit according to the specifications
• Save the data in time after the test is completed
