Overview

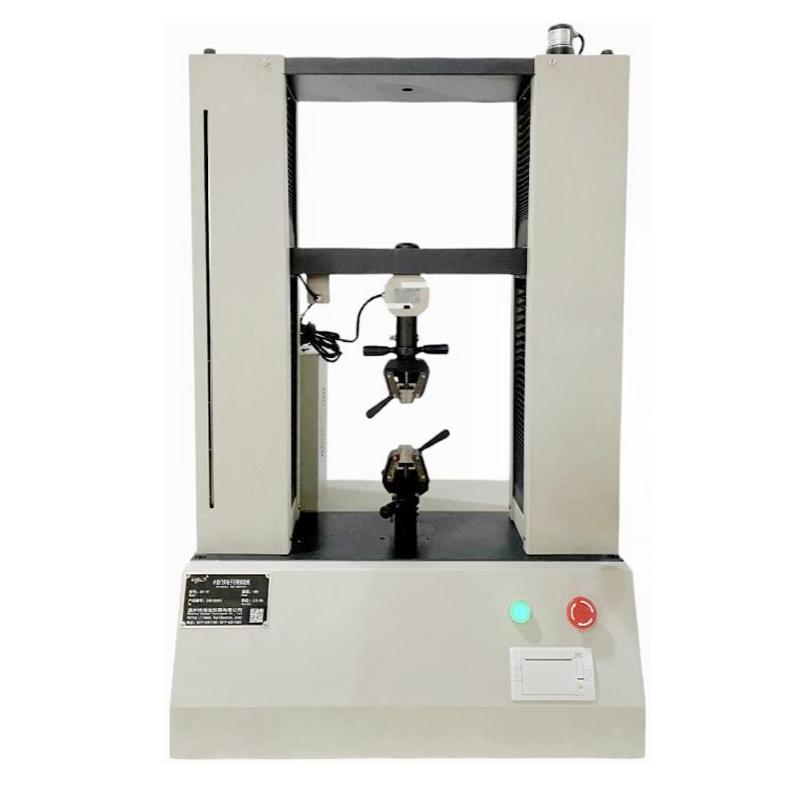

The XYD-5000 small gantry microcomputer-controlled universal testing machine is a high-rigidity portal frame structure testing equipment produced by HBO, which adopts stepper motor drive and high-intensity light bar fixed structure. The equipment realizes full digitalization adjustment through precise automatic control and data collection system. It is mainly used to test the mechanical properties of metals, Non-metallic and composite, such as maximum bearing tension, tensile and compressive strength, elongation and compression deformation and elongation. All test operations can be automatically completed by computer mouse.
Features
1. Four Rail Column and High Accuracy Double Ball Screw Pair Structure Improve Measurement accuracy and Stability
2. Support 6 force value units (N, kgf, lbf, gf, kN, tf) and 3 displacement units (mm, cm, in)
3. Graduation can be set freely, force value and displacement can be set up to 5 decimal places
4. Running speed can be set, starting speed, Test speed, reset speed can be set separately
5. The sample deformation and loading force can be set, and it can be delayed, automatically returned or stopped after reaching the preset force
6. Provide a variety of test modes, including general tensile test, general compression test, general force holding test, etc
7. Force holding type test and pressure type test with PID speed force value double loop control
8. The test software is a Chinese WINDOWS interface, which supports menu prompts and mouse operations
9. Real-time display of displacement, deformation, running speed, real-time force value and other parameters
10. Test results support multiple coordinate Linear dispersion display and automatic transmission function
Principle
This product uses high-intensity light bars to fix the upper beam and countertop to form a high-rigidity portal frame structure. Stepping motor drives the beam up and down through the transmission mechanism to realize the test loading process. The precision automatic control and data collection system realizes the full digitalization adjustment of the data collection and control process. After the test, the Windows host computer software automatically calculates and displays the test results and Linear dispersion.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, paper and other manufacturing industries, product mass supervision departments at all levels, teaching demonstrations in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Start the test software with a computer mouse
2. Set the test parameters
3. Select the corresponding test mode
4. Start the test, and the system automatically collects data
5. After the test, the software automatically calculates and displays the results
6. Query and print test results
Notice
• Power supply voltage 220V 50HZ
• Test speed range should be controlled within 1-400mm/min
• Force Indication Error must be kept within ≤ +/- 0.5%
• Displacement accuracy should be guaranteed ≤ +/- 0.05mm
• Speed Indication Error should be controlled within ≤ +/- 1%
• Before use, confirm that the effective Travel of the equipment is 500mm and the test width is 350mm
• Dimensions and weight of equipment to ensure adequate installation space
